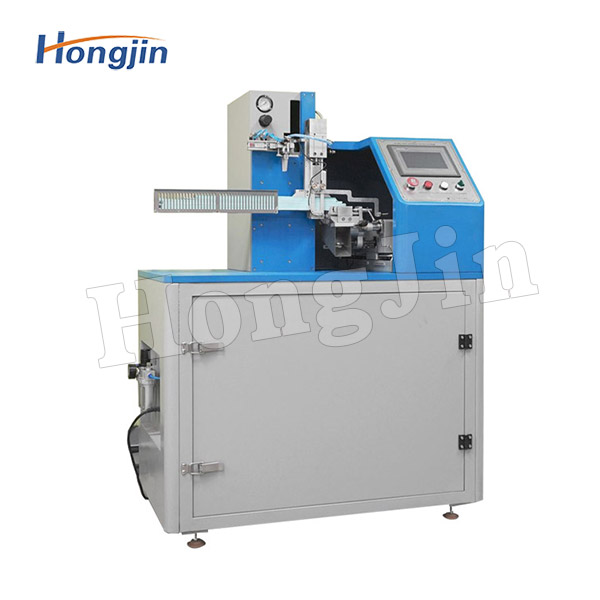

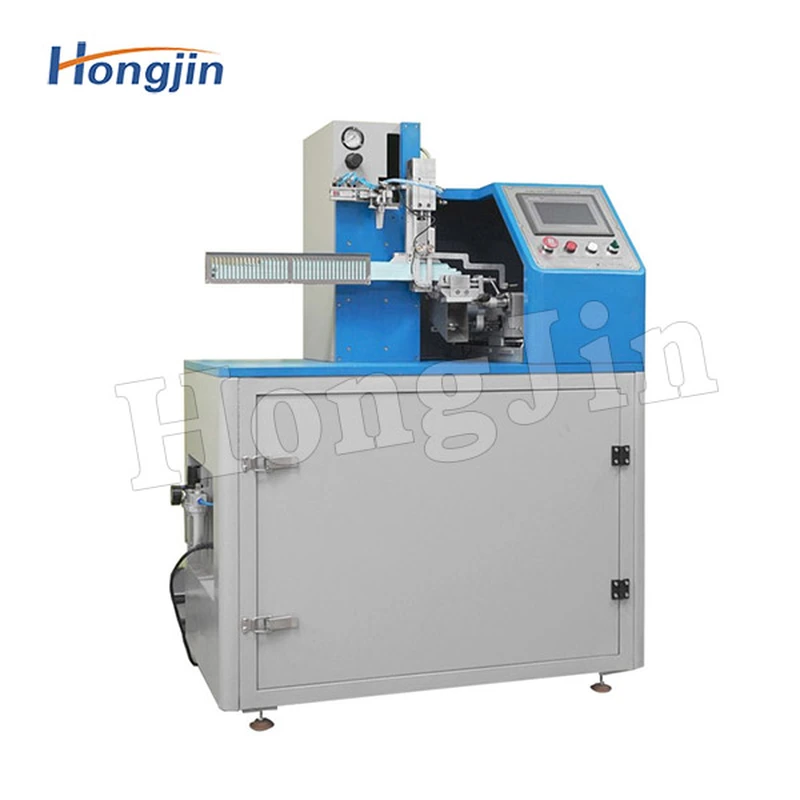

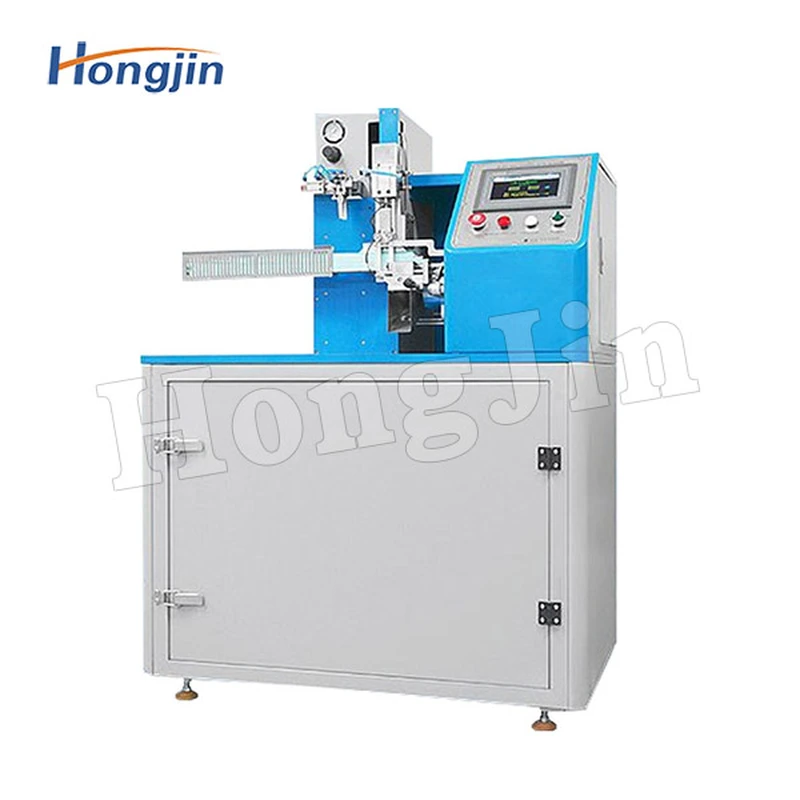

Tool edge tester

Product parameter

Cutting stroke	20-60MM (adjustable)	Maximum cutting edge width	110MM
speed	50mm per second (adjustable)	Strip stacking height	No more than 50MM
Cutting position	3MM away from the edge of the paper clip main 0.2MM
The force of the clamp on the strip	130 士2.5N
Class "A" blade test weeks: 60		Class "B" blade test weeks: 200
Fixture clamping blade reciprocating movement (ball screw and servo motor driven movement)
The load weight applied to the blade is 50N, which is made up of sliders, jigs, paper cards and weights and all other relevant accessories
