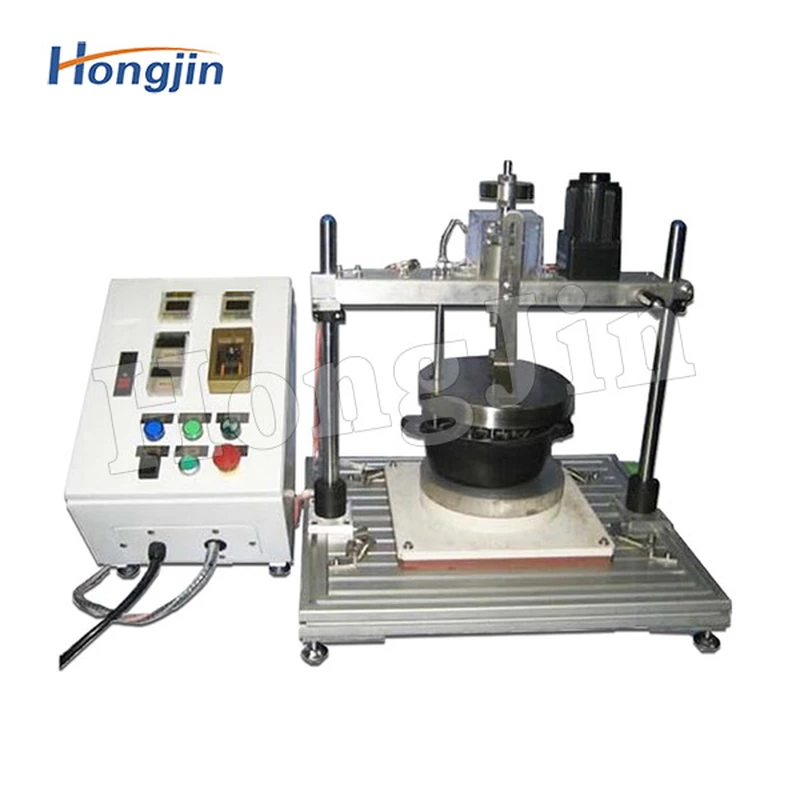

Non-stick pan coating wear testing machine

Designed according to BS 7069 and related standards, it is mainly used in laboratory test products of certification bodies and cookware companies, conforming to GB/T 32388-2015 Aluminum and aluminum non-stick cookware GB/T 320952-2015 non-stick surface performance and test specification of metal cooking utensils for household food Part 2: Non-viscosity and wear resistance test specification. Use 220V voltage,50Hz, use adjustable speed electric motor. Used for wear resistance test of non-stick pan coating.

Equipment introduction:

1. Designed according to BS 7069 and related standards, it is mainly used in laboratory test products of certification bodies and cookware companies, conforming to GB/T 32388-2015 aluminum and aluminum alloy non-stick cooker GB/T 320952-2015 Household food metal cooking utensils non-stick surface performance and test specification Part 2: Test specification for non-viscosity and wear resistance.

2. Use 220V voltage,50Hz, the use of adjustable speed electric motor.

3. Used for wear resistance test of non-stick pan coating.

4. Use the method to lock the pot with a clamp. The bottom surface of the pot should be in complete contact with the surface of the electric furnace, and the working component with hundreds of cleaning cloth should be parallel to the surface of the coating in the non-stick pot, and the pressure of its own gravity should make it fully contact, and a certain amount of test liquid should be put in the pot (according to the standards).

5, the workbench is fixed pot, cleaning cloth swing friction (according to the standards), in order to test the wear-resistant degree of non-stick coating purpose.

6. Test period 0-99,999 times.

7 machine parameters: reciprocating distance: 100 ± 5 mm speed: 33 times/minute (adjustable) plus weight: 15N
