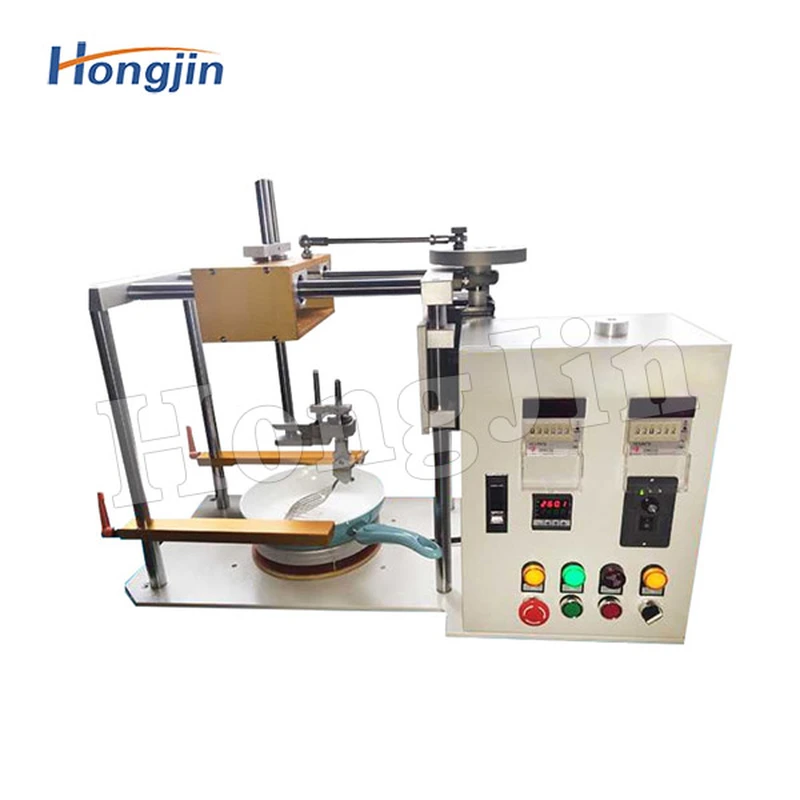

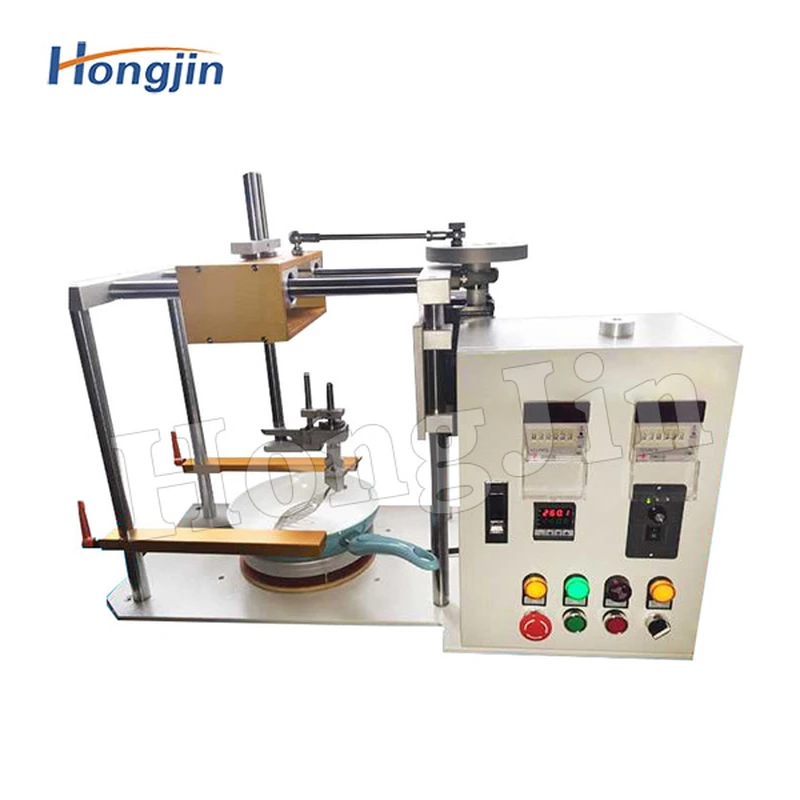

Non-stick pan scratching testing machine is a kind of equipment testing machine for testing coating. It installs a spatula on the instrument equipment to simulate the real scratch test of the spatula on the non-stick pan, to test the quality of the coating of the non-stick pan. Assist production department to determine the formulation of non - stick coating.
Wear-resisting tester for cleaning cloth
Product Overview:
1. Designed according to national standards and related industrial testing standards, it is mainly applied to laboratory test products of RENZHENG Organization and cookware Company.
2. Use 220V voltage, 50HZ, the use of adjustable speed electric motor.
3. Used for wear resistance test of non-stick pot coating.
4. Use the method to lock the pot with a clamp. The bottom surface of the pot should be in complete contact with the surface of the electric furnace (optional), and the working components of the hundreds of cleaning cloth should be parallel to the surface of the coating in the non-stick pot, and make it fully contact with the pressure of its own gravity, and put a certain amount of test liquid in the pot (according to the standards).
5. The table to a certain distance to drive the pot and cleaning cloth friction (according to the standard), in order to test the wear-resistant degree of non-stick pot coating.
6. The test cycle is 0-99999 times.
7, the whole machine anticorrosive treatment, stable operation, reliable test data.
8. Clean cloth anti-slip design, no need to fix.
9, can adjust the test stroke and speed according to the standard or test product size requirements, conventional products choose standard test stroke.
10. After the test, the alarm will stop automatically.
11. Memory function of power failure in the middle of the experiment, and accumulative record of restart.
12. Section test, preset cleaning cloth replacement frequency, automatic stop reminding replacement consumables, preset test times, midway replacement consumables will not be affected, cumulative counting until the completion of the whole test process.
13, accurate speed control, stepless speed regulation, real-time speed visual.
Bead pen core wear testing machine
Product Overview:
1. Designed according to relevant standards, it is mainly used in the laboratory test products of institutions and cookware companies.
2. Use 220V voltage, 50HZ, use adjustable speed electric motor.
3. Use ballpoint pen refill to test the wear resistance of non-stick pot coating.
4. Use method to lock the pot with a clamp. The bottom surface of the pot should be in full contact with the surface of the electric furnace, and the working component of the three ballpoint pen refill (7069 version scratch only uses a single pen refill) is parallel to the surface of the non-stick coating in the pot, and the pressure of its own gravity makes it fully contact.
5. The workbench rotates the pot back and forth at a certain frequency, while the test component is turned and reversed at a certain period (according to various standards), so that the ball rolls on the non-stick pot coating for a certain period to achieve the purpose of testing the wear resistance of the non-stick pot coating.
6. The maximum test cycle can reach 100,000 times, and the machine will automatically stop and alarm after the preset test cycle.
7, the above test methods are customized by the customer using the standard or our company provides the test methods and test AIDS.
8. Input voltage: 220V. Optional accurate speed display, more convenient and accurate based on standard testing.
