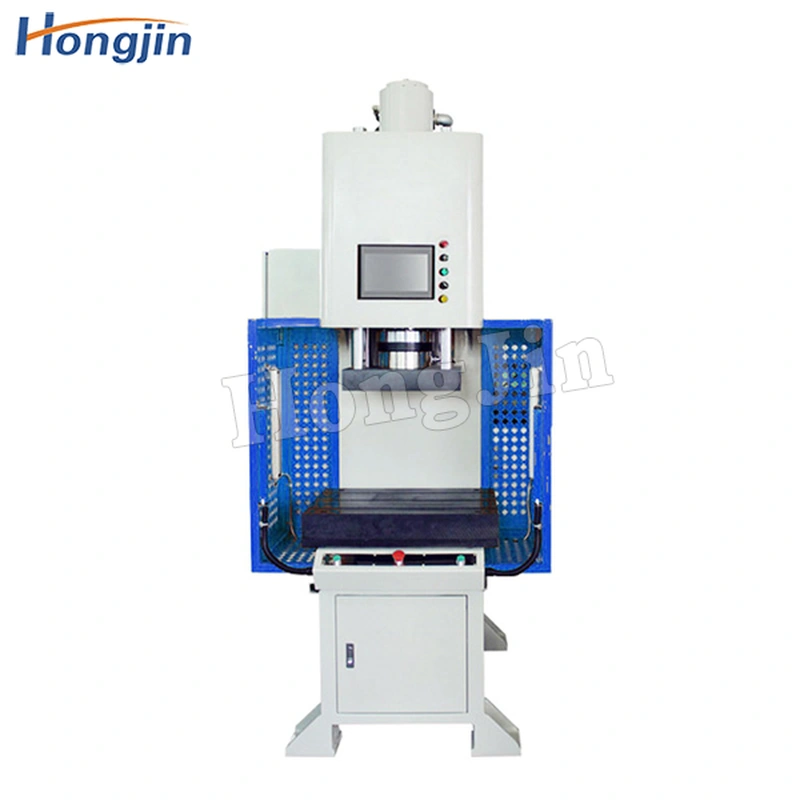

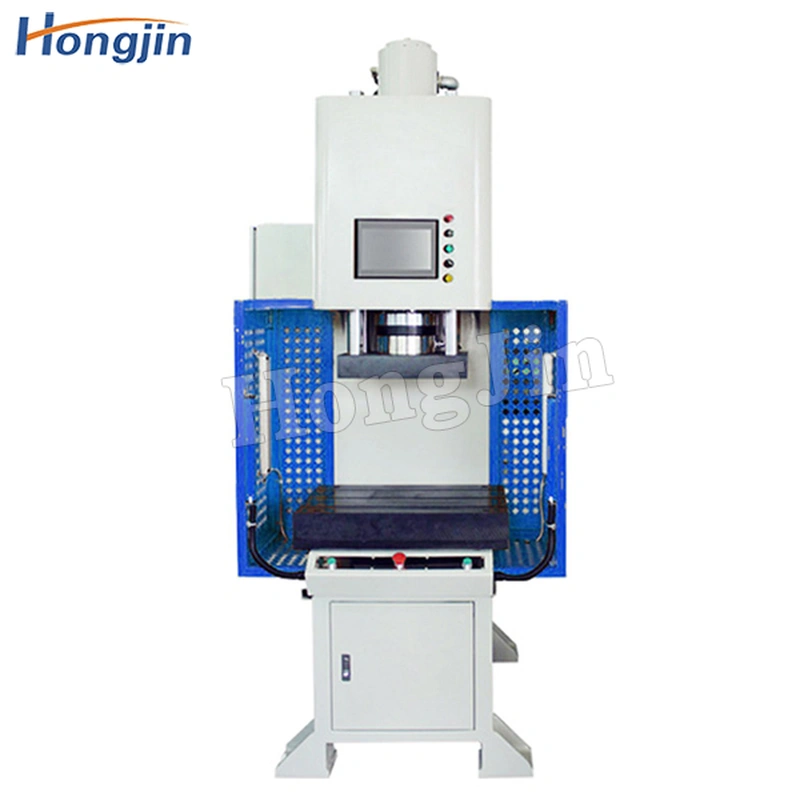

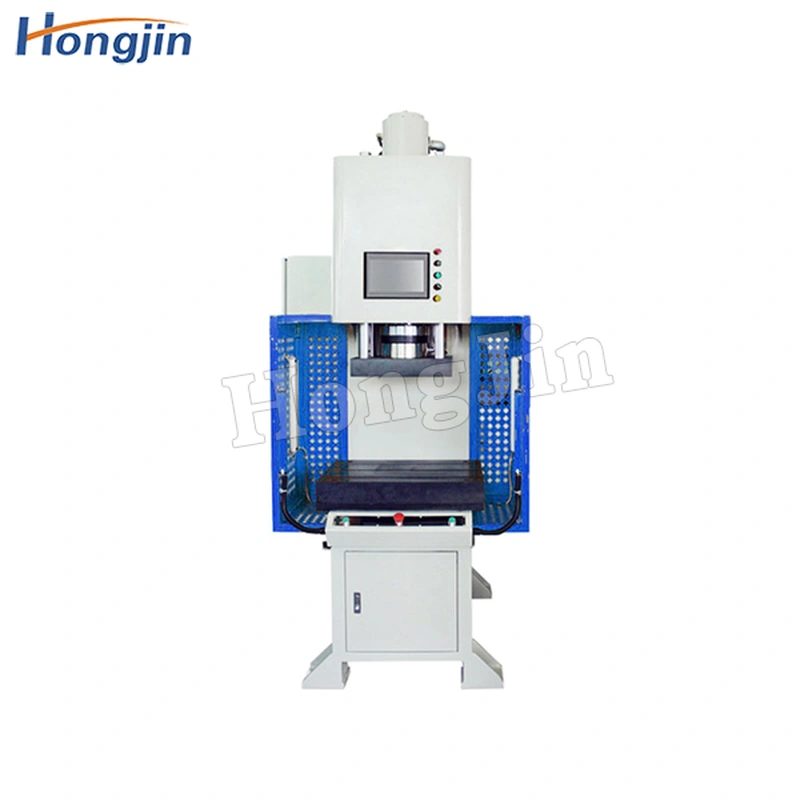

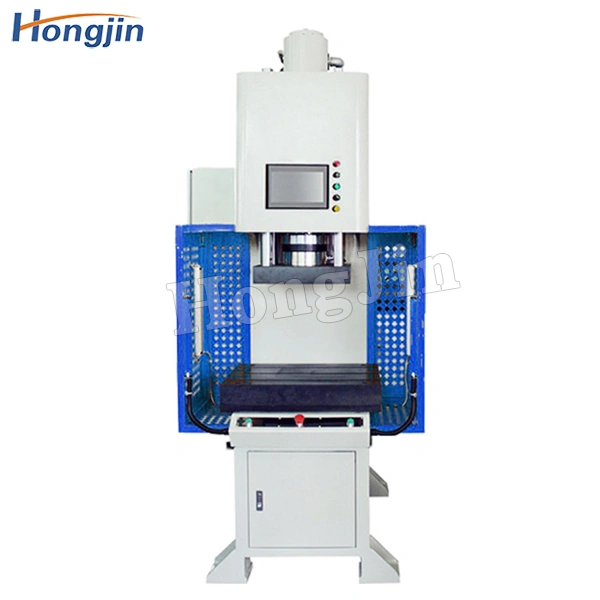

Special Servo Press Fitting Inspection Machine For Automobile Bearings

Product features:

1, positioning accuracy 0.01mm(positioning repeat accuracy: ±0.01mm);

2, pressure accuracy 1% (pressure repetition accuracy: ±1%, up to ± 2KG, pressure mode accuracy is higher);

3. Monitoring of the pressing process - one is the data display, storage and tracing of the pressing process. The whole process curve of pressing force and

displacement can be displayed on the LCD touch screen. The whole process control can automatically determine whether the product is qualified at any stage of

the operation, 100% real-time removal of defective products, so as to achieve online quality management;

4, online quality determination - one refers to the process of press assembly can determine whether the product quality is qualified or not, press assembly is not

OK alarm, alarm is NG; Take 5 points to decide, any one beyond the set value,

Performance characteristics:

1. Compared with the traditional pneumatic and hydraulic presses, the energy-saving effect is more than 80%, and it is more environmentally friendly and safe, which can

meet the requirements of equipment use in the dust-free workshop;

2. The whole process curve of pressing force and displacement can be displayed on the LCD touch screen; The whole process control can automatically determine whether

the product is qualified at any stage in the process of operation, 100% real-time removal of defective products, so as to achieve online quality management:

3. Pressing force, pressing depth, pressure speed, pressure holding time and other values can be entered on the operation panel with friendly interface and simple operation

4. Can customize, store, call pressure installation program 100 sets; Seven kinds of pressing modes are available to meet your different process needs;

5. Through the external port connected to the computer, the press data can be stored in the computer, to ensure the traceability of product processing data, convenient

production quality control management;

6, because the machine itself has the correct pressure and displacement control function, so there is no need to add a hard limit on the tooling, processing different

specifications of products only need to call different press assembly procedures, so it can easily achieve a multi-purpose machine and flexible line.
