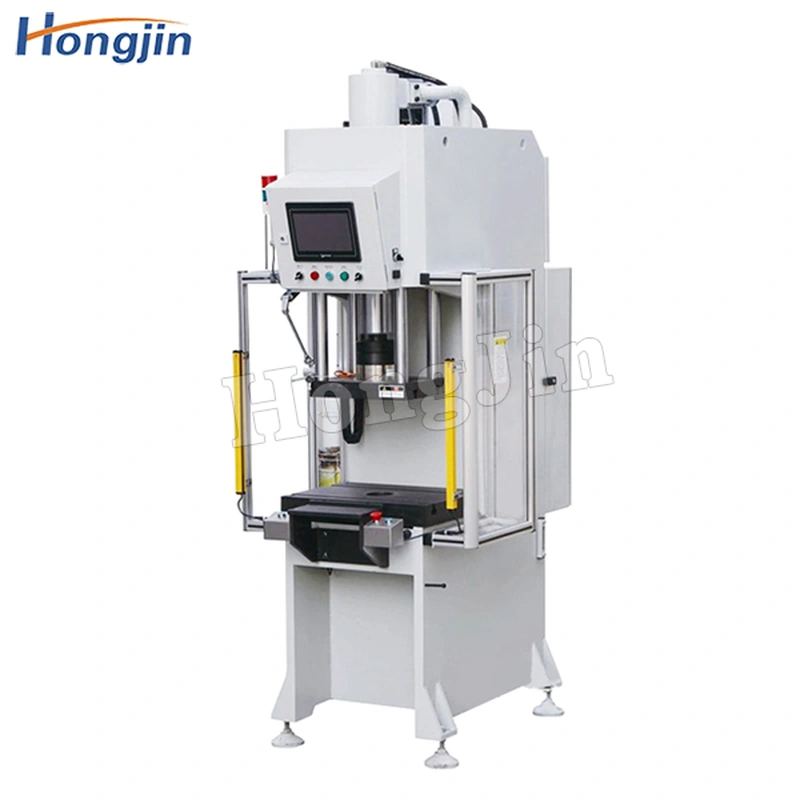

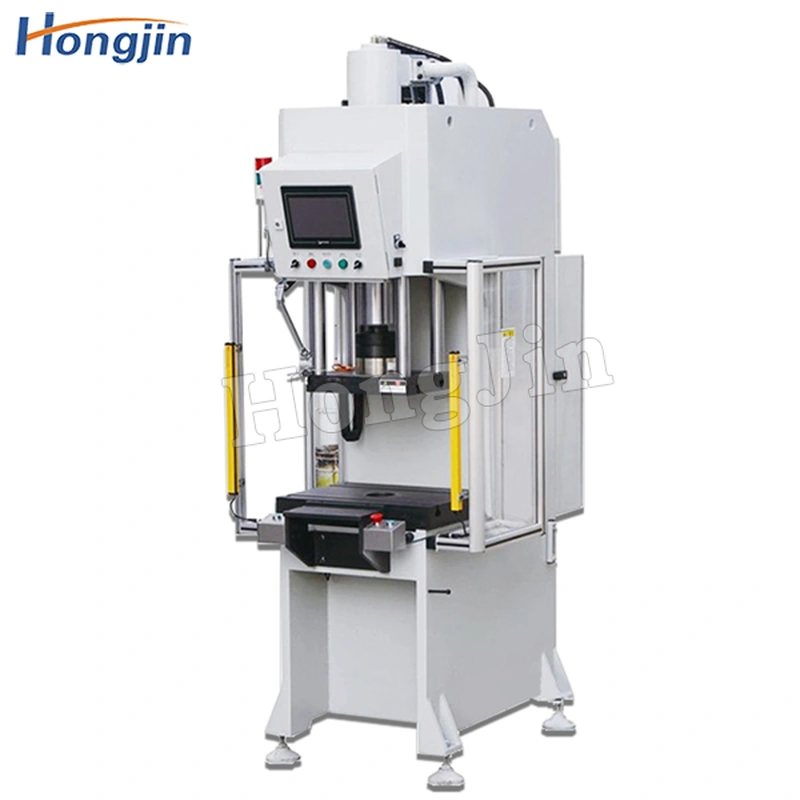

CNC Precision Hydraulic Press

Product features:

1. The overall force measurement accuracy of the equipment is 0.05% of the full scale, and the display unit is 0.01KN;

2. The AD sampling speed of the system for the force sensor is 300 times/second;

3. The small display unit of the displacement sensor is 0.01MM, and the error is 0.015% of the full scale. Repeated positioning accuracy is less than 0.03MM;

4, the parallel accuracy of the upper table and the lower table surface is within 0.10MM;

5. After the combination of rack and workbench, the rigidity at the opening of the equipment is not less than 200KN/MM;

6. The temperature rise of the equipment shall not exceed 20℃ for 24 hours continuous operation. When the ambient temperature is 40 ° C, the oil temperature

will not exceed 65 ° C.

Product parameter：
