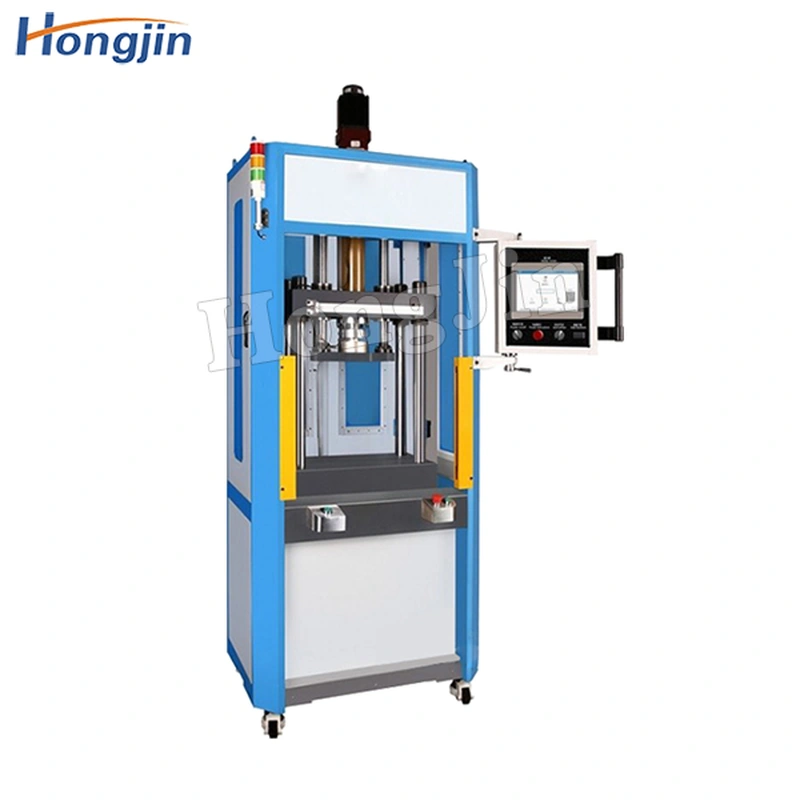

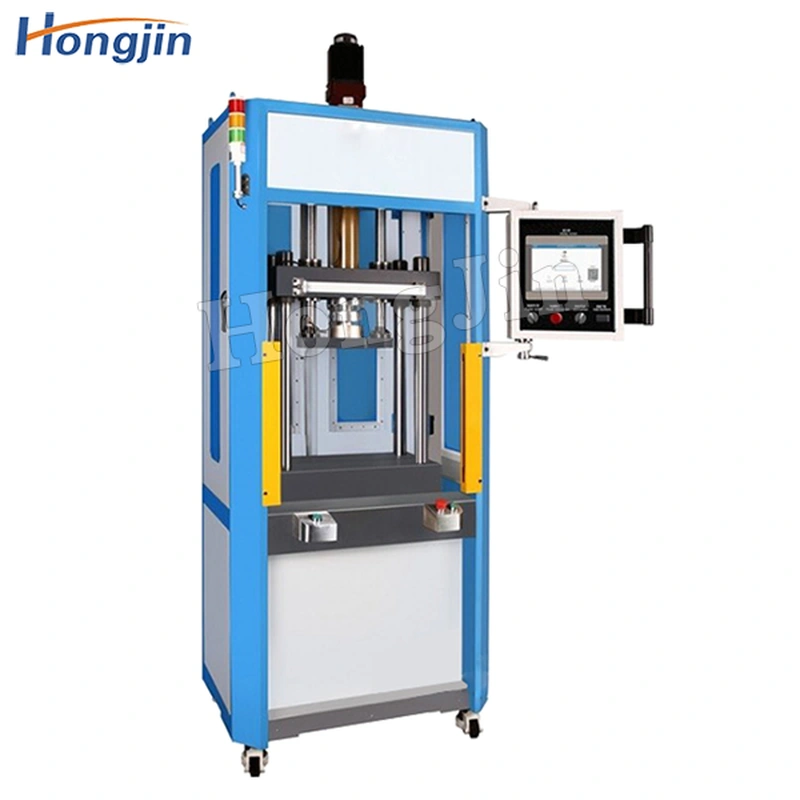

Servo Electronic Press

Product features:

1. Five-stage speed pressing of stroke;

2, online press assembly quality judgment;

3, pressure curve display;

4, seven types of pressing mode for choice;

5, 100 sets of pressing procedures can be set;

6, pressure data transmission and storage.

Function introduction:

1. Provide 30-100KN configurable press force (set directly on the touch screen)

2. Upper and lower limits of interference force alarm, and five points are selected for comparison in the pressing process;

3. Interference data storage function, and can be exported to a personal computer, and open in EXCEL form for query;

4. Parameter modification and invocation can only be operated by password input. There are 9999999 sets of press-mounting parameters that can be stored.

5. It has the function of peak alarm, that is, it can set the pressure of the force sensor for each time of pressing, and then make the upper and lower limit alarm

to remind whether the set pressure and the actual pressure are within the difference range;

6. Can make corresponding text prompt to the alarm issued by the device;

7. Real-time display of force and displacement pressure pressing curve;

8. The accuracy of ±0.01MM to achieve the current pressing position;

9, can compare the upper and lower limits of the final pressure assembly position, can detect the missing or wrong installation of parts and other

reasons caused by the shadow of the assembly in place;

10, you can set the stop position, deceleration position and safety position on the touch screen. Pressure holding time;

11. With manual/automatic function: When the manual function is in the mold, press the corresponding button to get the corresponding action, and

stop when the hand is loose. Automatic function Press the corresponding button, the indenter fast down → slow down → pressure → pressure retention

→ automatic return of the indenter.

12. Equipped with two-handed button start (two buttons at the same time within 0.5 seconds only effective), with an emergency rebound button.

13. With two-color warning light, and with buzzer, fault sound and light alarm.

14. With infrared safety grating protection. When the oil cylinder is pressed down, it is detected that the object with diameter of 25MM is extended into the

machine, and the oil cylinder immediately rises and gives an audible and visual alarm
