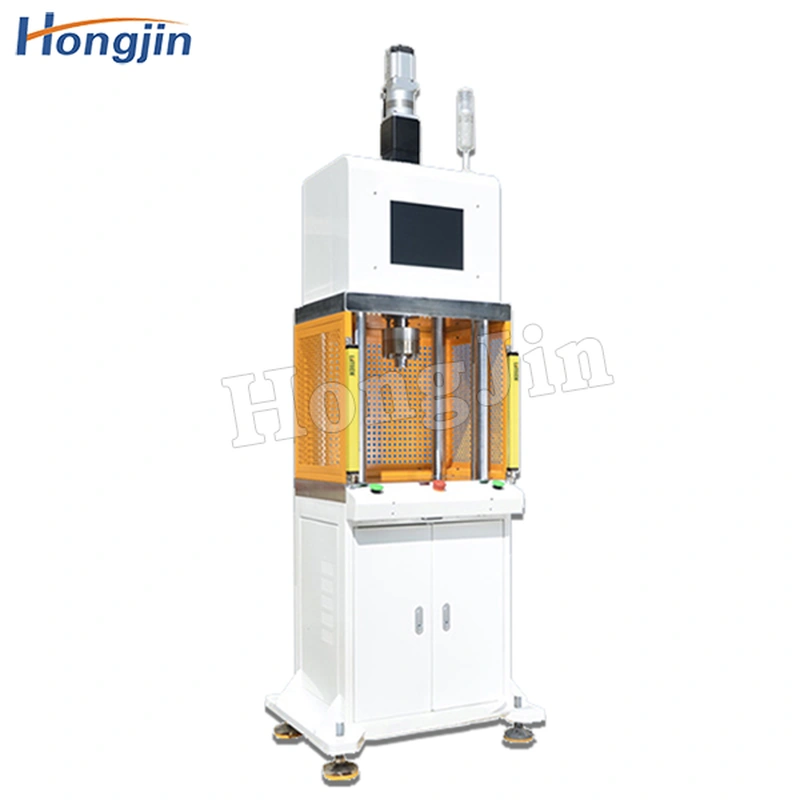

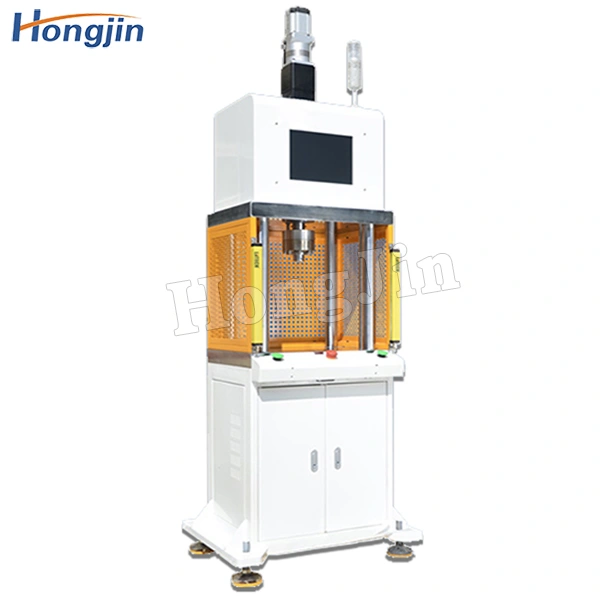

Precision Bearing Servo Press Machine

Product features:

1: The main engine structure is mainly driven by electric cylinder, the electric cylinder is driven by ball and roller screw as the first choice, and the economical

and suitable type can be made by T screw, which can be customized by customers according to their own precision requirements. The press installation system

software ensures the accurate control of the whole process of the press installation force, stop position, press installation speed and pressure holding time and

other parameters to achieve the whole process of numerical control management;

2: The whole process curve of pressing force and displacement is displayed on the LCD touch screen, which can control the interference fit quality in real time and

meet the traceability management of sample data. Real-time detection and removal of defective products, the integration of production and detection, but also help

to optimize the technical parameters and design of the process;

3: The equipment itself has the correct pressure and displacement control function can set the correct position to stop, set the correct force value to stop and other

pressing modes; Easily complete the requirements of multi-section press assembly; Within the effective stroke, you can arbitrarily set the correct position to stop, set the

correct force value to stop, position repetition accuracy is plus or minus 0.01mm, pressure repetition accuracy is plus or minus 1%; The system has powerful mechanical

rigid deformation correction function; It can dynamically adjust the pressing target according to the different height of the sample. Multiple systems can form a distributed

grid to facilitate data summary and analysis;

4: Powerful data summary and networking functions. Program reserve data interface, can export the original data, also convenient system reserve a number of IO

interfaces, convenient and external equipment for seamless connection. According to different press-assembly plans, the system has the function of multi-batch preservation

control program. Upload, download. Powerful data analysis function, can quickly locate unqualified areas, convenient timely discovery of problems.
