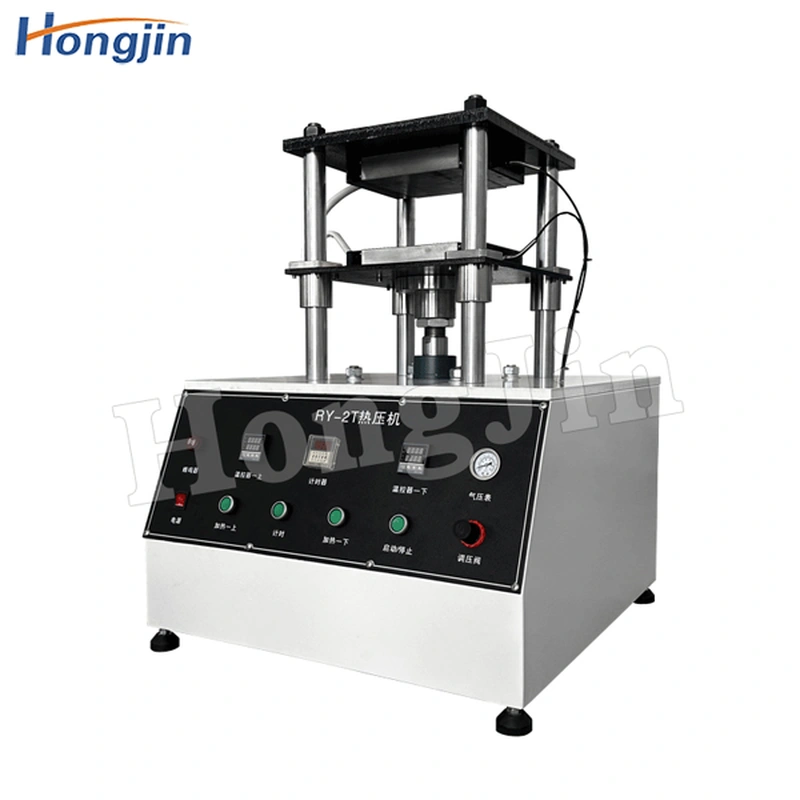

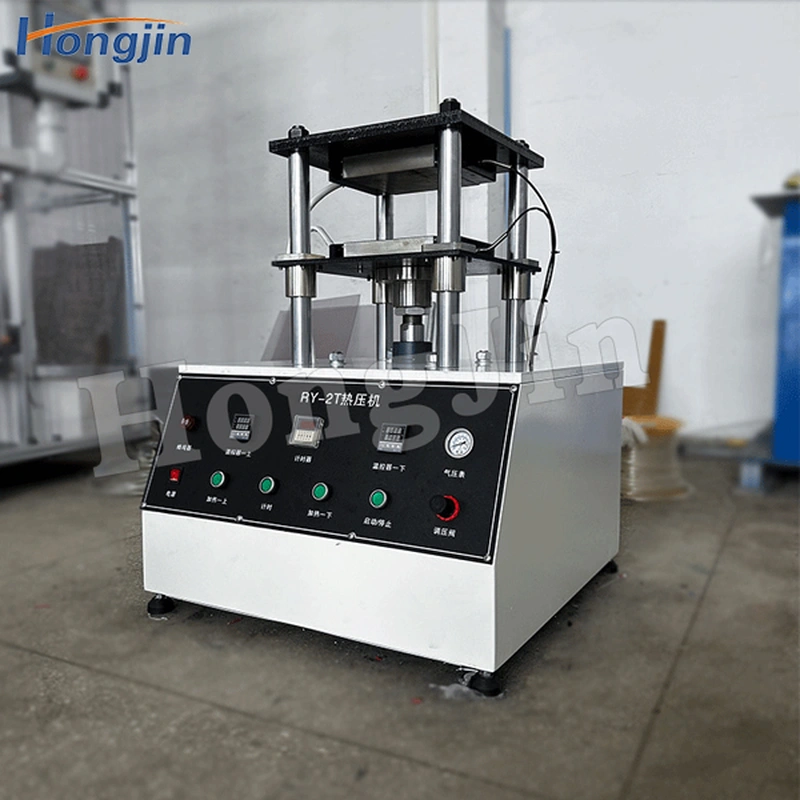

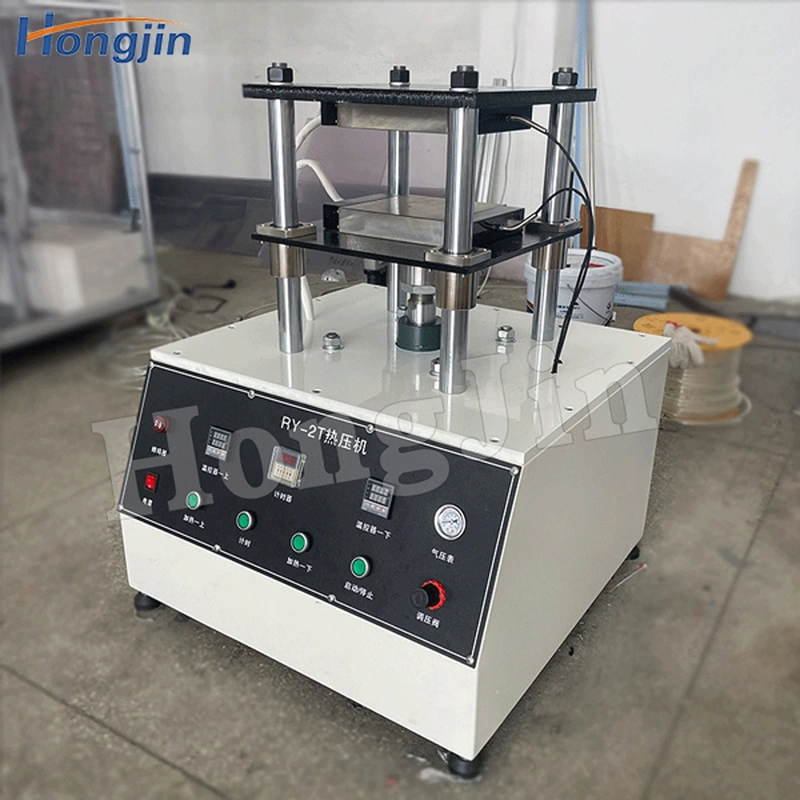

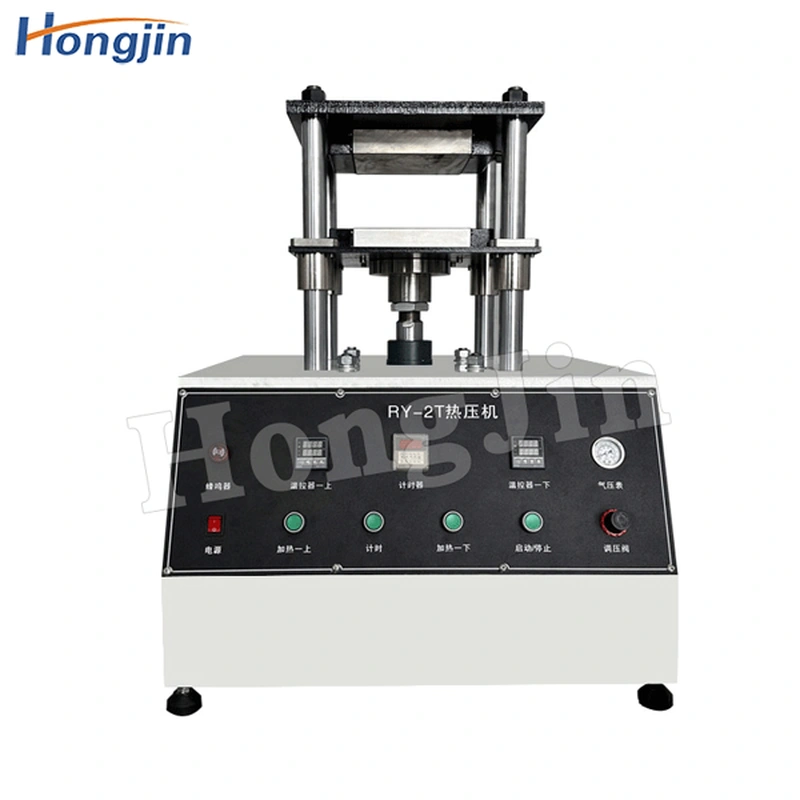

High Precision Manual Heat Press

Hot press, mainly used for wood-based panels, decorative panels, aluminum honeycomb, glass, stone heat transfer, yoga mat, steel and wood doors, mattress packaging, polyurethane foam, thermal insulation cotton, wood parquet, can be customized according to the actual needs of customers.

описание

Product Overview:

This series of hot press is used to press all kinds of rubber model products and non-model products of the main equipment, can also be used to press all

kinds of thermosetting plastics and foam rubber products. It has an independent power mechanism and electrical system, and adopts centralized control

by buttons. The working pressure and heating temperature can be adjusted within a certain range. This model is manual.

Product parameters：

Pressure capacity	2T/20KN
manometer	Manual pressure adjustable, pressure gauge adjustment accuracy 5% [pressure = pressure/pattern area]
Platen Size (mm metric)	200200/250250/300300/350350 [mm]

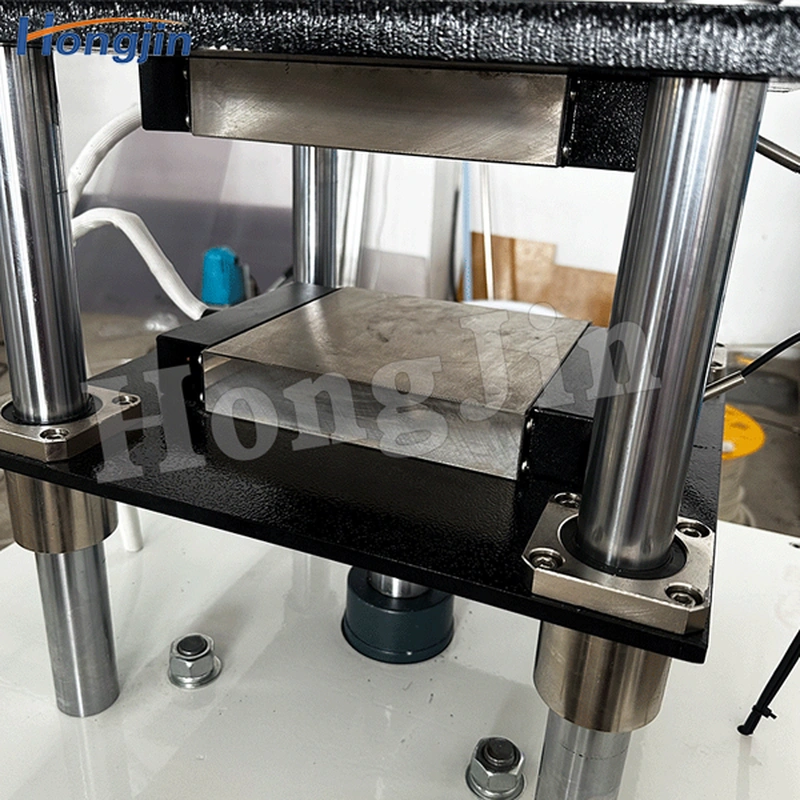

Hot press plate material	High temperature resistant imported steel plate, surface carbonization quenching, special treatment of fast heat conduction, pressure parallel type, wear-resistant
Platen hardness	50～60HRC
Flatness of the platen	≤0.03 mm
Platen parallelism	≤0.16 mm
Temperature range	Room temperature -250℃ [can be customized maximum temperature of 500 degrees] [select a price list shall prevail]
Temperature uniformity	1.5℃ [The larger the plate, the higher the temperature, the worse the temperature uniformity]
Temperature controller	Precision module, with Omron digital display numerical display.
Temperature control mode	PID precise control, self-tuning with high-precision sensor, temperature control accuracy: ±1.0℃.
timepiece	LED digital Settings display, time range 0.1S ~99min~9.9hr
heater	Heating mold built-in cylinder [According to the platen area configuration of different power packaging platen temperature uniformity, not the same power]
Warming time	It takes about 15min from room temperature to 160℃
Two hot plates	Each hot plate can be set to control the temperature
Heating method	Electric heating
Cooling mode	Natural air cooling
Barometric system	Air pressure control system, air driven high-precision cylinder without resistance of the piston to perform lifting smoothly; Manual pressure, pressure retention, pressure relief.
Cylinder stroke	Max. 120mm
Cylinder speed	11mm/s
manometer	0~100kg/sq.cm【 Suitable range for actual pressure 】
Mold opening mode	Manual ascent and descent
Main engine volume	(WXDXH)500×560×650 mm
Supply voltage	3∮, AC220V
Air source	0.5 ~ 0.7 mpа
Machine weight	≈160kg
Foot cup	four
