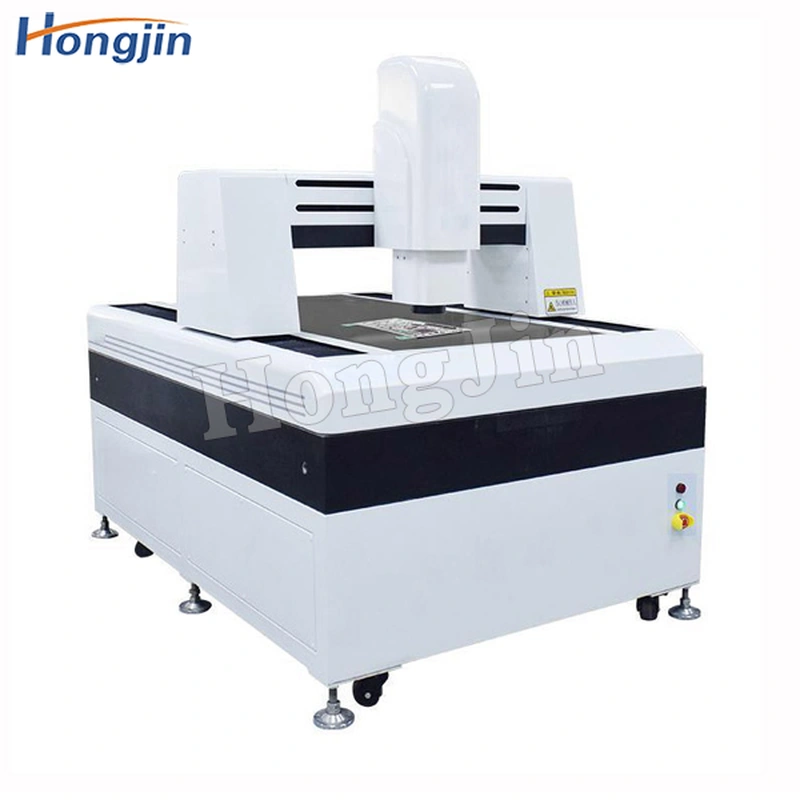

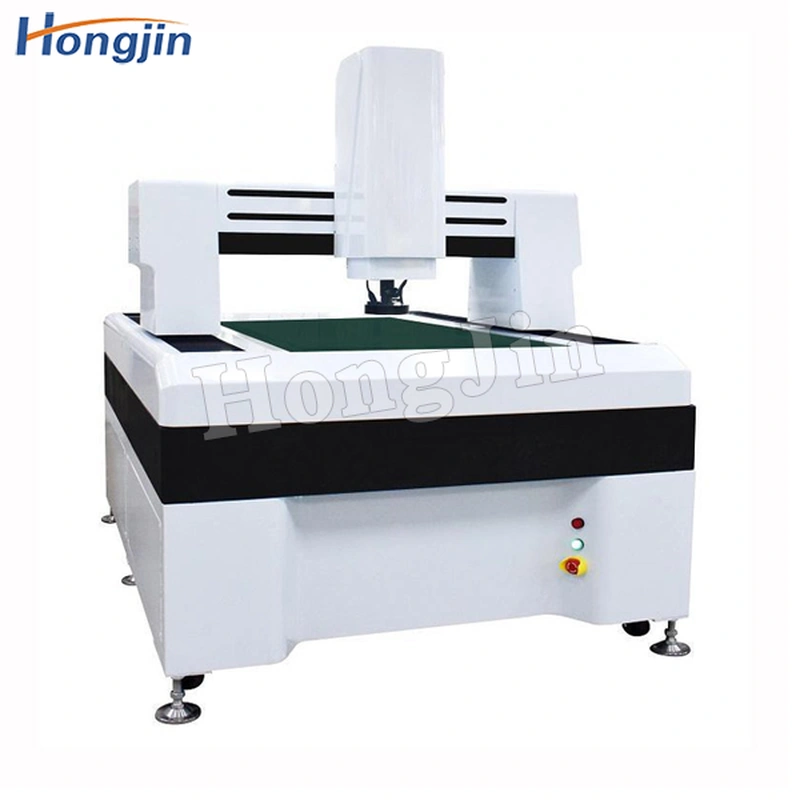

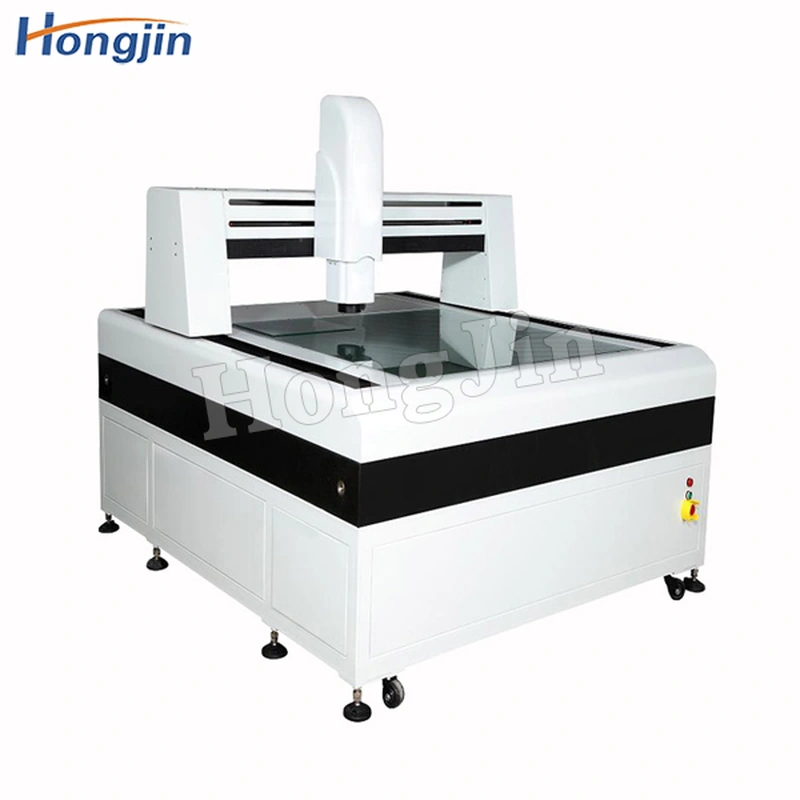

Gantry Image Measuring Instrument

Gantry image measuring instrument The high-speed, high-precision, and powerful professional-grade automatic image measuring instrument of automatic imaging technology can realize precise measurement of the contour, apparent size, angle and position of various complex and precise parts. The best choice, with automatic software, can realize automatic programming, based on CAD digital-analog measurement, it is a fully automatic imaging instrument for high-end applications in Chin

описание

Product Features

1. Professional measurement software, with fast auto focus, automatic edge finding, automatic measurement functions, as well as multiple coordinate functions, the workpiece can

be placed at will, the software also has 3D height measurement, flatness, warpage and other measurement functions, measurement Data can be imported into Word, Exce/AutoCAD.

2. Adopt mobile bridge structure design, wide space, suitable for measuring large size products. 3. The machine adopts flower table structure, which has good stability, temperature resistance and corrosion resistance. 4. Adopt German open metal grating ruler, with high precision and good stability. 5. The three axes use Taiwan precision linear guides and screw rods.

6. It can be equipped with automatic zoom optical lens to realize automatic zoom measurement.

Product parameter

Measuring stroke (mm)	600×500×200, 800×600×200, 1200×800×200, 1500×1200× 200,2000×1500×200	Appearance size (mm)	1200×1700×1650, 1400×1800×1650, 1800×2200×1650, 2100×2600×1650, 2500×3000×1650
Instrument weight (kg)	2000, 2800, 3200, 3500, 4000	Glass load-bearing (kg)	50kg
measurement accuracy	X, Y axis: (3+L/200)μm	Repeatability	3μm
Magnification	Optical magnification 0.7~4.5X, image magnification 34~156X (expandable to 12-312X)	grating ruler	German open metal grating ruler, resolution 1.0μm
CCD	US 1/2" high resolution color camera 760 line	Object field of view (standard)	11.1 ~1.7mm
Grating resolution	0.0005mm	transfer method	Taiwan precision ball screw and guide
sport control	Panasonic servo motor	light source	6 ring 8 zone ring LED cold light source, brightness adjustable
lower light source	Parallel light path LED cold light source, adjustable brightness	Operation method	Program control + joystick
Options	Computer, MCP probe, laser probe, platen mechanism	power supply	220V/5OHz/10A
