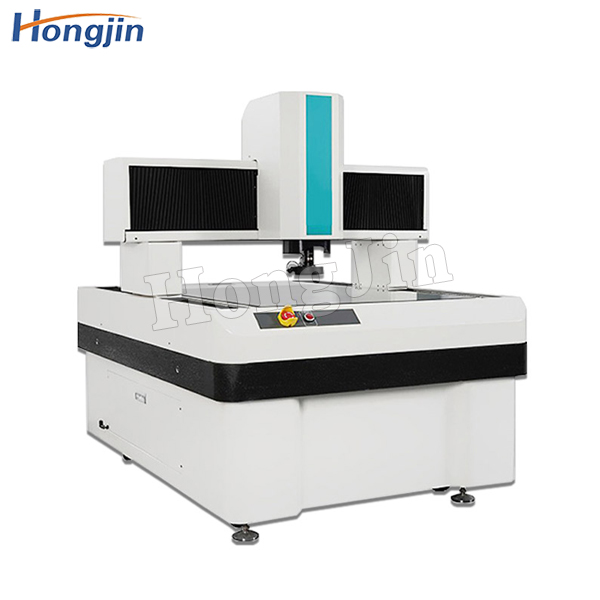

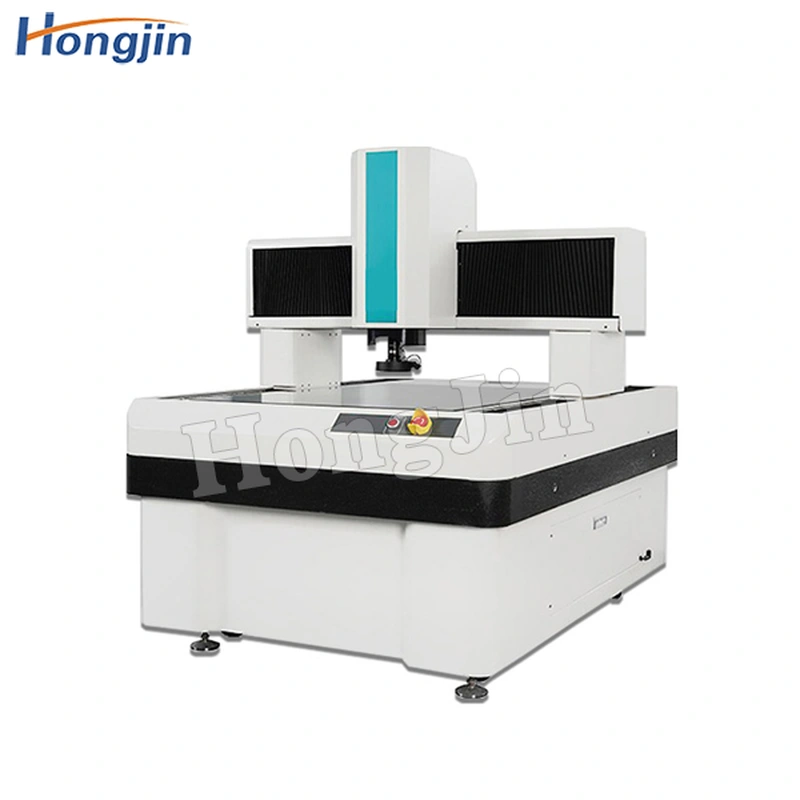

Gantry Bridge Three-Dimensional Measuring Instrument

Gantry automatic measuring instrument is the company's independent research and development of large range CNC image measuring instrument, can achieve efficient, accurate measurement of large quantities of workpiece: suitable for precision parts detection and quality control. In machinery, electronics, hardware, plastic and other industries have been widely used.

описание

Product Features

1. The gantry structure is moved, and the measuring workpiece is fixed

2. Using high-precision Jinan blue granite "00" gradeworkbench and column, its notable features are high precision, corrosion resistance, high strength, no stress deformation,

ensuring high stability o the machine

3. Adopt automatic zoom electronic card position lens, easy to realize magnificationswitching, no need to re-calibrate

4. X.Y.Z three-axis CNC automatic precision control and accurate positioning, the transmission adopts precision linear guide rails, and grinding-grade ball screws to ensure that

the motion system is accurate

5.Program-controlled 5-ring 8-zone LED surface light source and parallel LED contour light source system, intelligently realize 256-level brightness adjustment;6. The self-developed measurement software has fast focusing, automaticedge finding and diversified output reports, realizes online SPC data processing and analysis, can set automatic measurement tasks,

and complete batch detection efficiently.

Product parameter


Dimensions (mm) X/Y/Z	1690×1162×1620, 1890×1362×1620, 2090×1562×1620	Measuring range (X/Y/Z)	600×800×200, 800×1000×200, 1000×1200×200
Indication error (um)	E1(x/y)=(3.5+L/100)	Workbench load (kg)	30kg
Instrument weight (kg)	860kg	Image Sensor	1/2" color CCD industrial camera
Objective lens	Automatic zoom optical lens	Magnification	Optical magnification: 0.7-4.5x; image magnification: 24-190x
Working distance (standard)	92mm	Object field of view (standard)	11.1 ~1.7mm
Grating resolution	0.0005mm	Transmission system	X.Y.Z axis screw drive
Sport control	Self-developed CNC servo motion control system	Speed XY axis (mm/s)	300
Speed Z axis (mm/s)50	50	Light source	The surface light adopts 8-zone LED cold light source, each section is controlled independently, the contour light is LED transmission parallel light source, and 256-level brightness can be adjusted
Measurement software	INS-C measurement software	Working environment	Temperature 20C+2C, temperature change <2C/hr, humidity30-80%; vibration <0.002g, lower than 15Hz
Power supply	AC 100-220V 50/60HZ 10A
