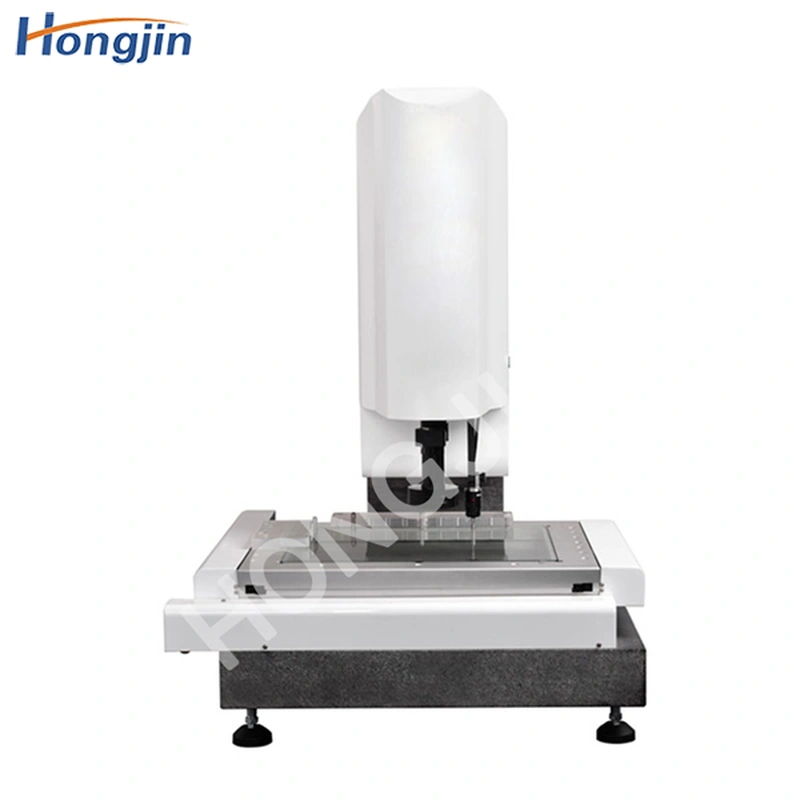

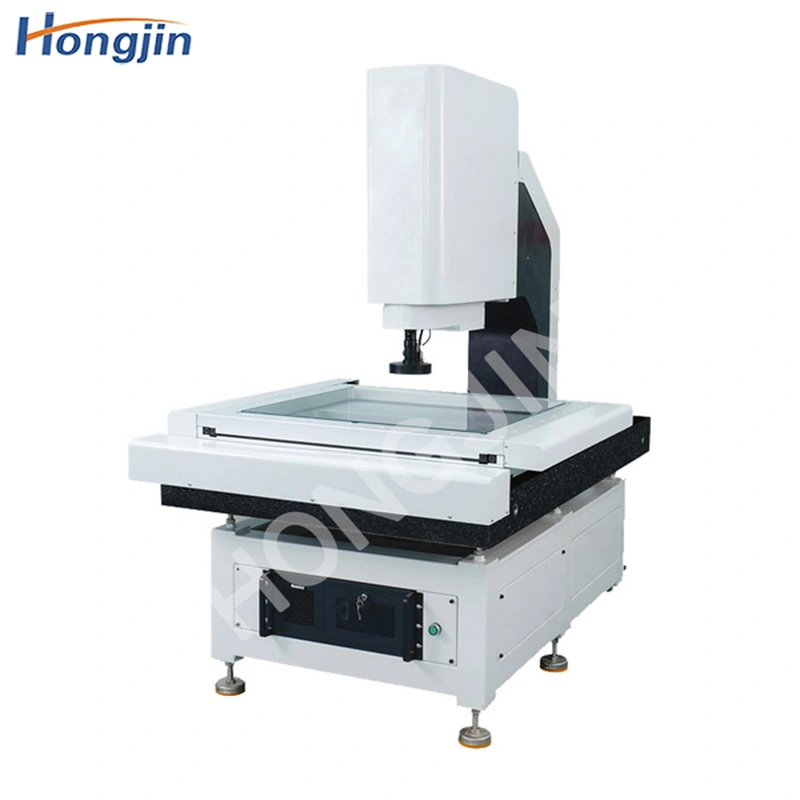

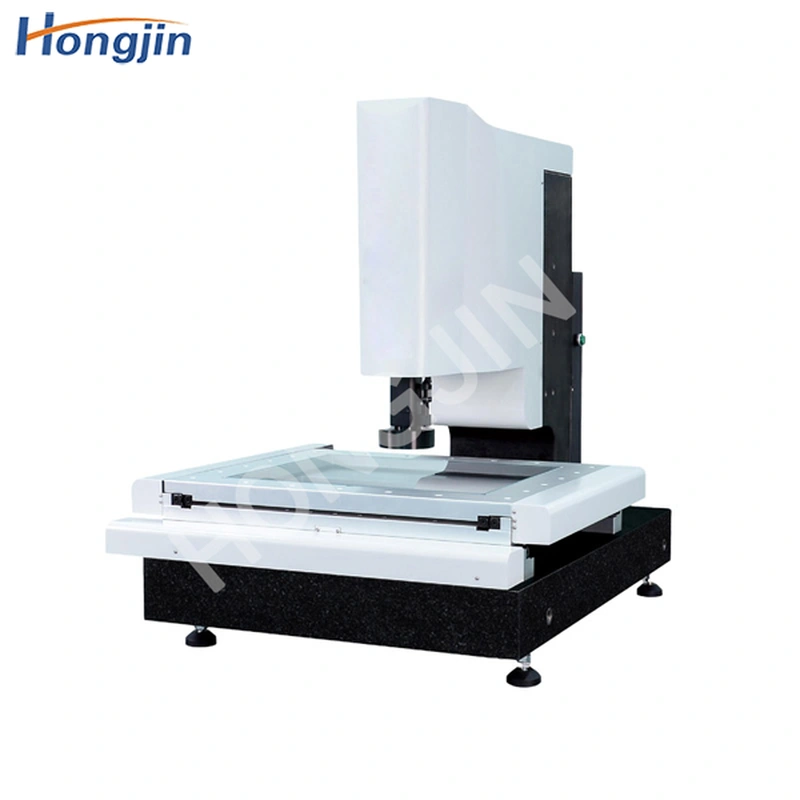

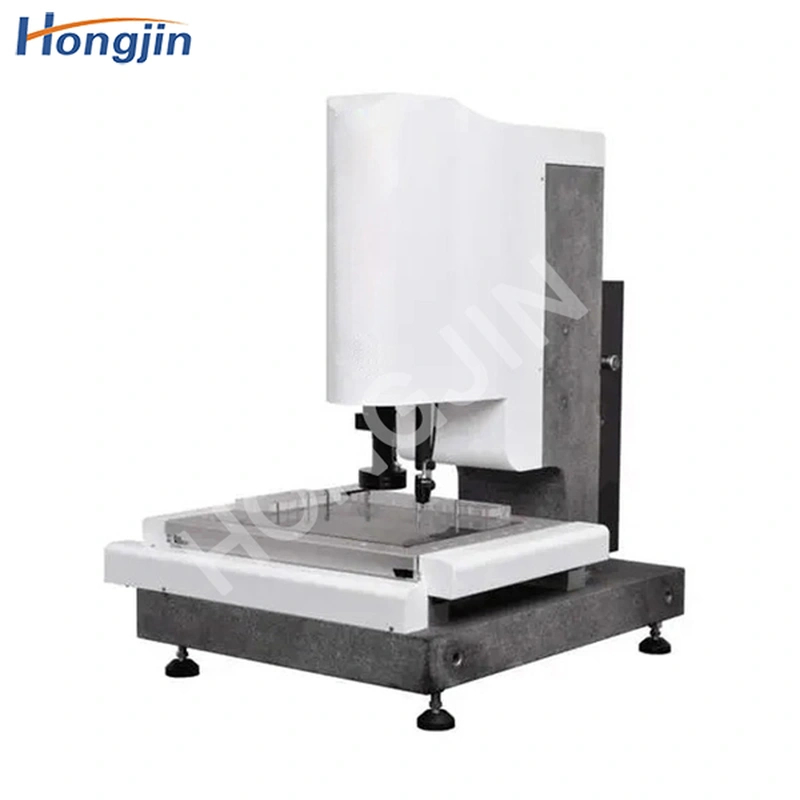

Fully Automatic Imager

Automatic image measuring instrument is a kind of coordinate measuring machine, also known as image probe coordinate measuring machine. It uses an optical microscope to magnify and image the object to be measured at a free magnification, and transmits the magnified image of the object to be measured to the computer connected to the instrument through the CCD camera system, and combines computer software to measure and draw the geometric size of the object, and can The data is tabulated and post-processed for non-contact and efficient detection of the geometric quantities of various complex workpieces. It is suitable for engineering development, drawing and product surveying and inspection of machinery, electronics, electrical appliances, molds and precision hardware.
