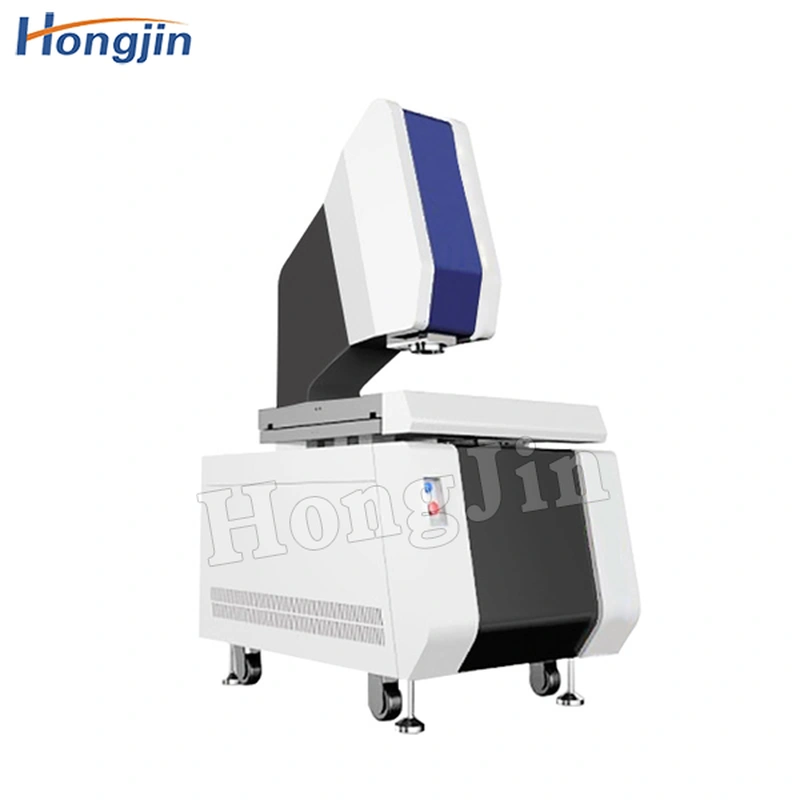

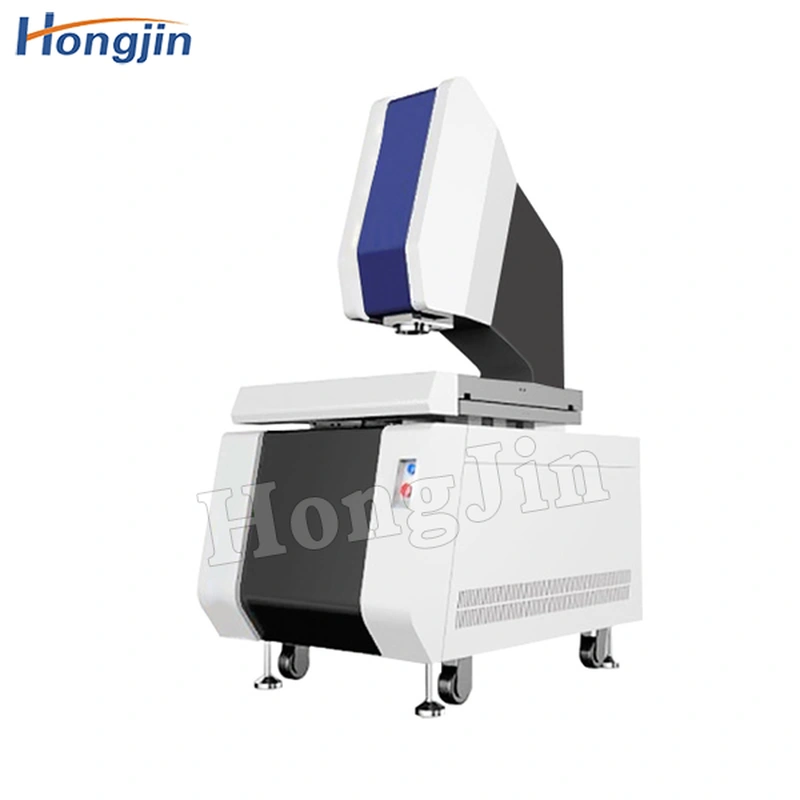

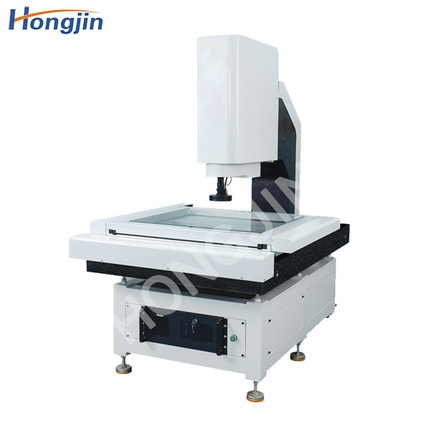

Features
1. Using double closed-loop motion control, the motor has precise positioning and stability during high-speed motion;
2. The embedded module is used to control the motor, which improves the response speed of the motor and simplifies the interface between the instrument and the PC. The PC and the instrument are connected through the USB cable and the S terminal cable;
3. Using granite platform, the appearance is simple and elegant;
4. The surface light consists of forty-eight groups of independent light sources, each of which is driven by a constant current source and is continuously adjustable;
5. Equipped with automatic measurement software QuickMeasuring measuring instrument measurement software, which greatly improves the measurement efficiency.
2. The embedded module is used to control the motor, which improves the response speed of the motor and simplifies the interface between the instrument and the PC. The PC and the instrument are connected through the USB cable and the S terminal cable;
3. Using granite platform, the appearance is simple and elegant;
4. The surface light consists of forty-eight groups of independent light sources, each of which is driven by a constant current source and is continuously adjustable;5. Equipped with automatic measurement software QuickMeasuring measuring instrument measurement software, which greatly improves the measurement efficiency.
Product parameter
| X/Y/Z measuring stroke | 500╳400╳200mm |
| Z-axis travel | Focusing stroke 200mm (height can be customized according to customer requirements) |
| glass table size | 580╳480mm |
| Glass table load-bearing | 30kg |
| Metal patch optical ruler | X/Y axis resolution: 0.0005mm (0.5μm, optional 0.1μm) |
| Z-axis resolution: 0.0005mm (0.5μm, optional 0.1μm) |
| X/Y linear measurement accuracy (μm) | ≤3+L/200 |
| Machine positioning accuracy (μm) | ≤3 |
| Repeatability (μm) | ≤3 |
| camera | Ultra-clear color industrial digital camera |
| Measurement software | Self-developed automatic imaging software (measurement data can be exported or imported into MES, QMS system according to customer report format) |
| Light source system | Surface light source: 5-ring 8-zone LED cold light source, 255-level independent adjustment |
| Contour light source: LED green cold light source, 255-level independent adjustment |
| Dimensions of the instrument (L*W*H) | 1230╳820╳1850mm |
| Instrument weight (kg) | 400kg (to ensure the stability of the machine during high-speed operation) |
| power supply | AC220V/50HZ AC110V/60HZ |
| computer | intel i5 host |
| monitor | 27 inches |
| Warranty | 1 year warranty for the whole machine |
| video card | intel gigabit network card |
| switch | 12V-24V, leakage and short circuit protection |
| power filter | A total of 3 sets of independent filters for X, Y and Z (anti-current interference) |
