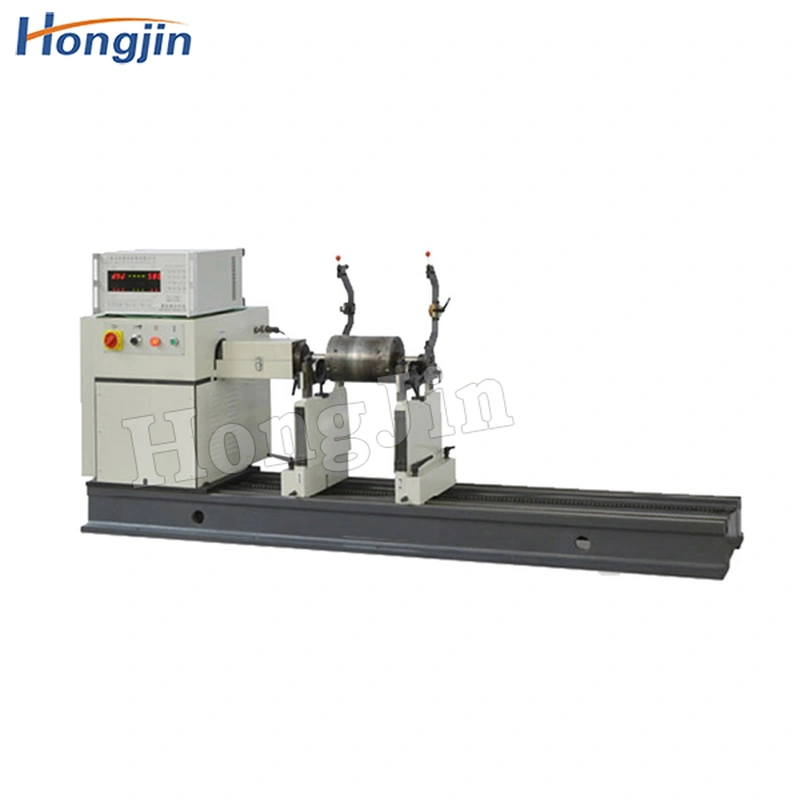

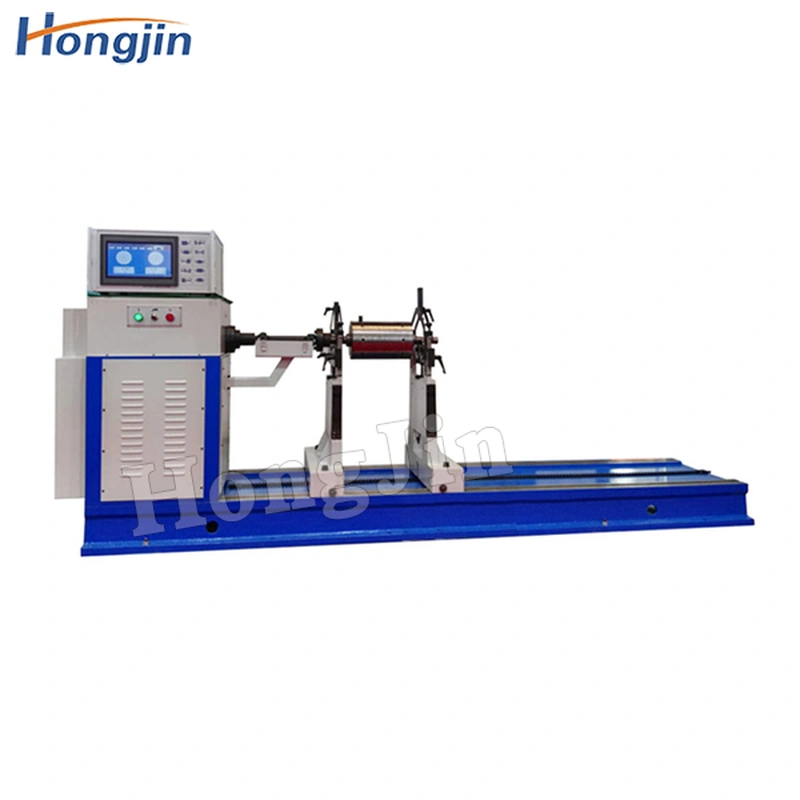

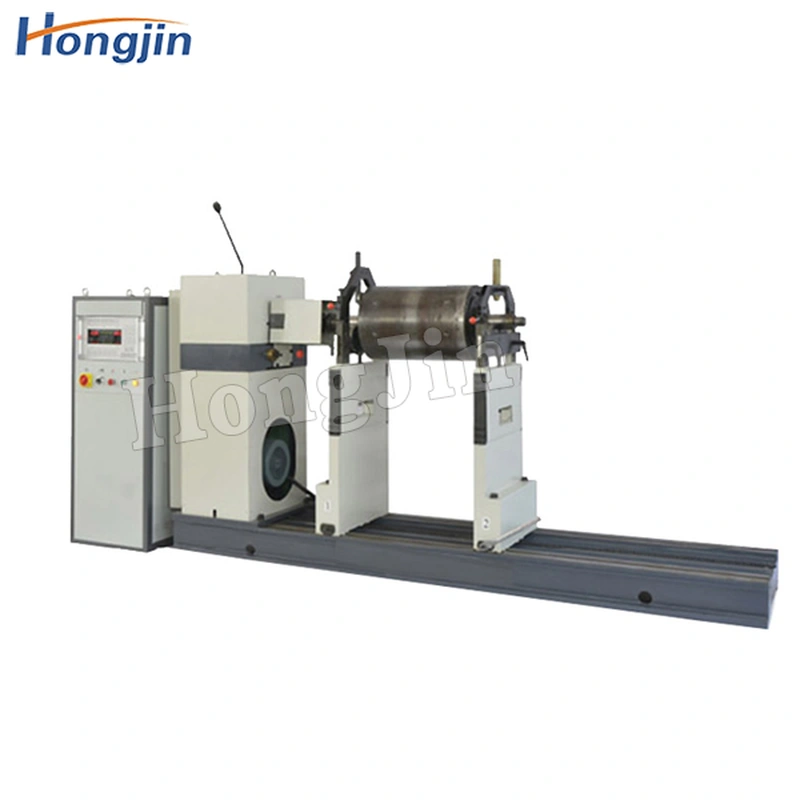

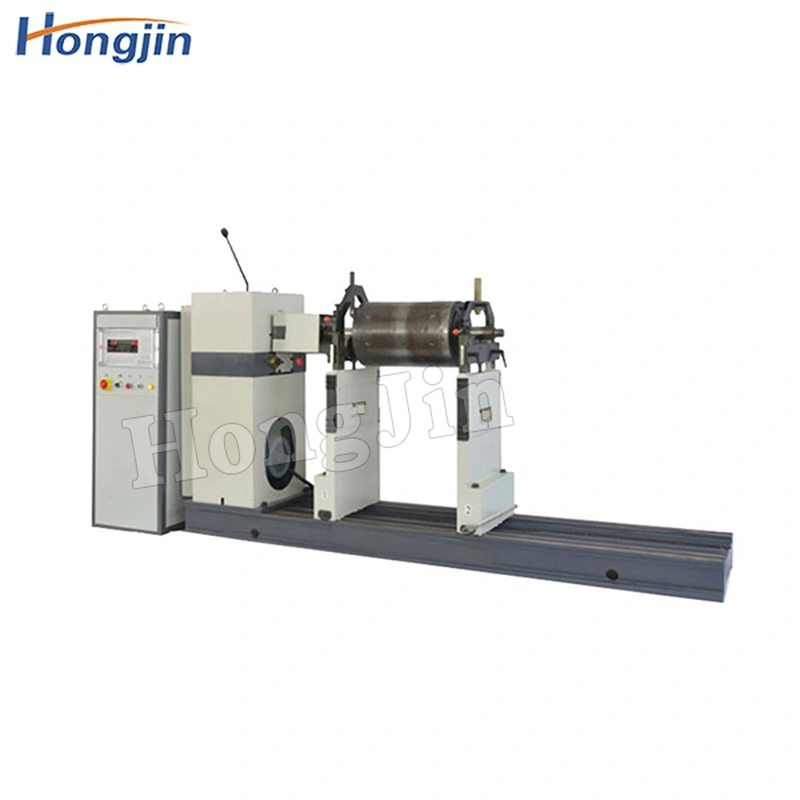

Universal Joint Dynamic Balancing Machine

описание

This machine adopts universal coupling or gear box transmission, and can obtain various balanced speed or stepless speed regulation, and has the characteristics

of large driving power, high precision and convenient operation.

Product Features:

The universal joint balancing machine has a reliable design and uses an industry-leading measurement system. Dynamic and static balance, there are up to 10 kinds of support modes, plus de-weighting, forward and reverse rotation can be flexibly customized, the balance amount and angle unit of the measurement display can be customized, and the displayed precision can also be customized arbitrarily, realizing real-time conversion of units to meet the needs of Different customer needs.

Product parameters：

Model	HJ-160	HJ-300	HJ-500
Workpiece mass range (kg)	160	300	500
Maximum outer diameter of workpiece (mm)	Φ1000	Φ1200	Φ1500
Distance between two support seats (mm)	Minimum 60	Minimum 60	Minimum 60
Support shaft diameter range (mm)	Φ10~Φ75	Φ15~Φ180	Φ15~Φ180
Maximum distance from the end face of the universal coupling to the center of the right bearing seat (mm)	1500	1500	1500
Rotation speed (r/min) when the diameter of the working transmission is 100mm	Variable frequency stepless speed regulation	Variable frequency stepless speed regulation	Frequency conversion stepless adjustment
Motor power (kw)	3	3	4
Universal coupling torque (N m)	60	60	60
Minimum achievable residual unbalance (emar)	1g·mm/kg	1g·mm/kg	1g·mm/kg
