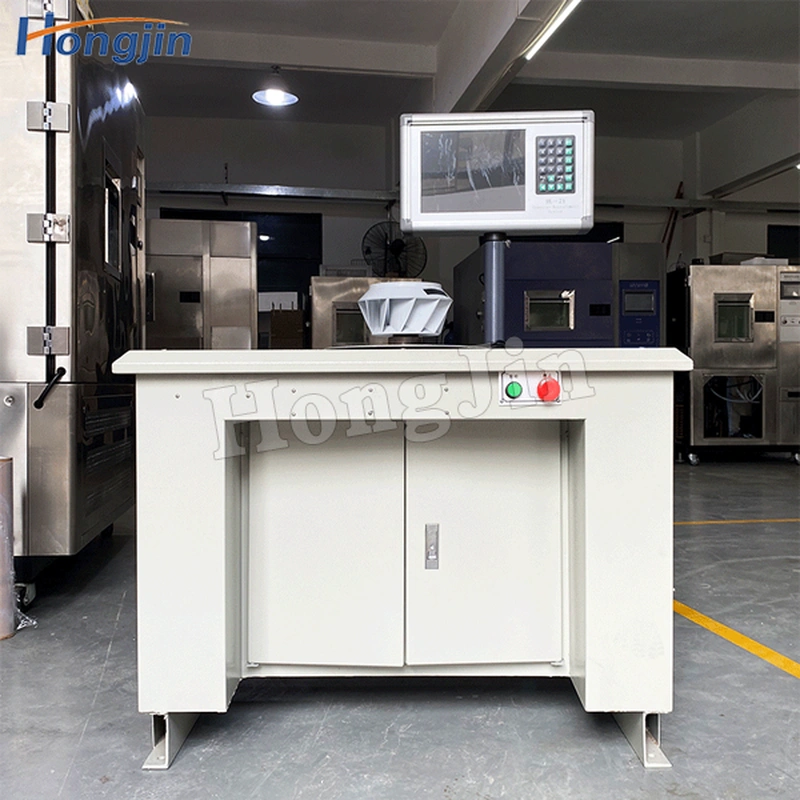

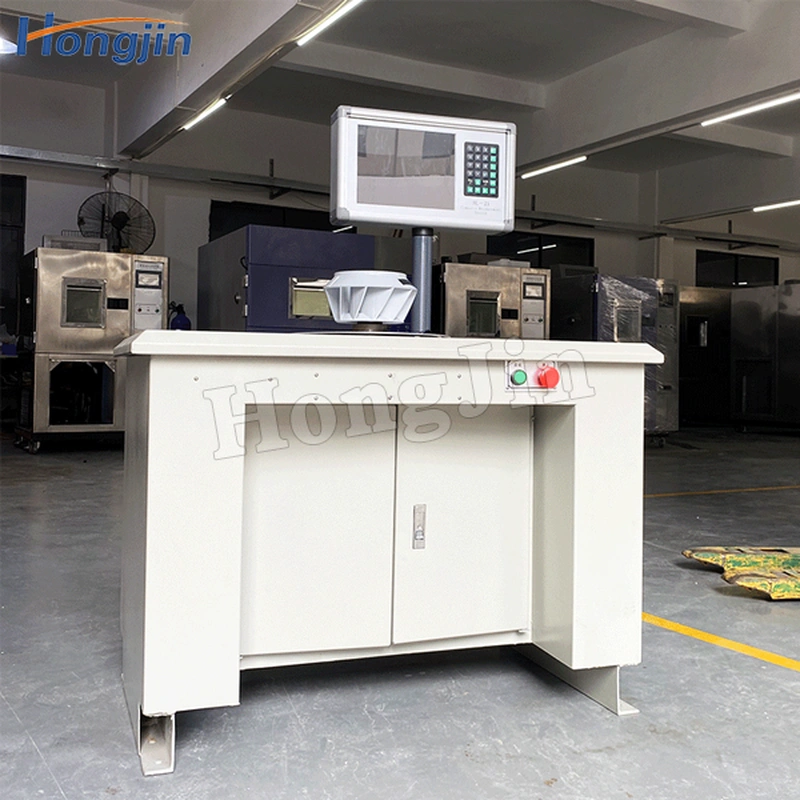

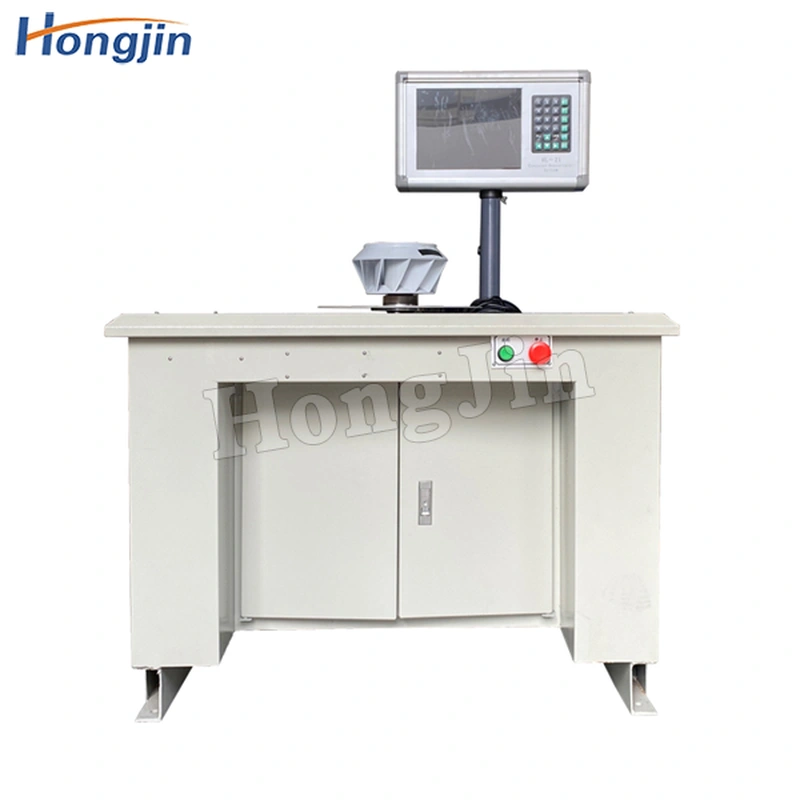

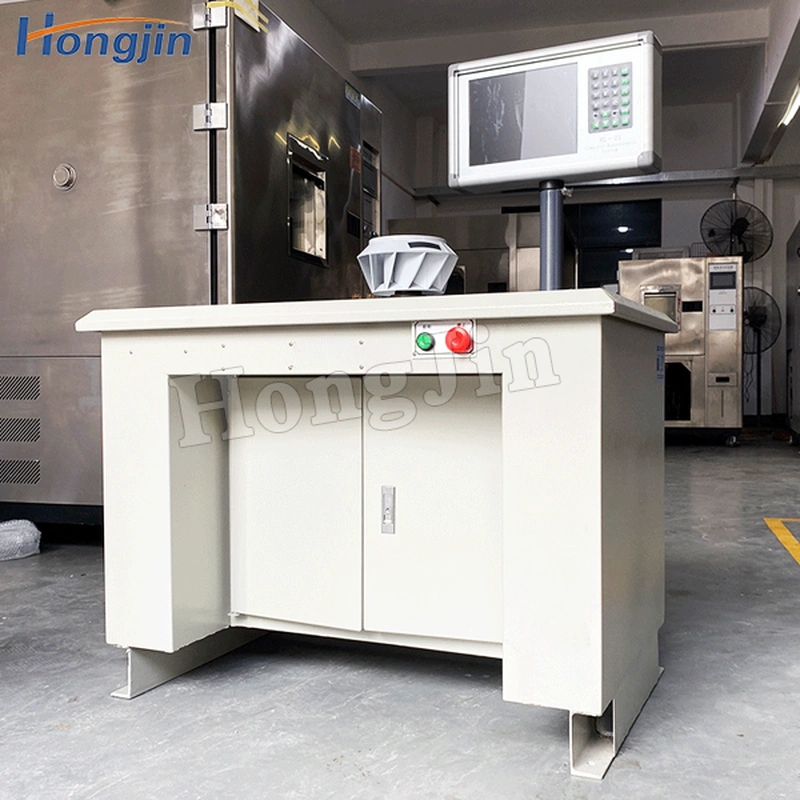

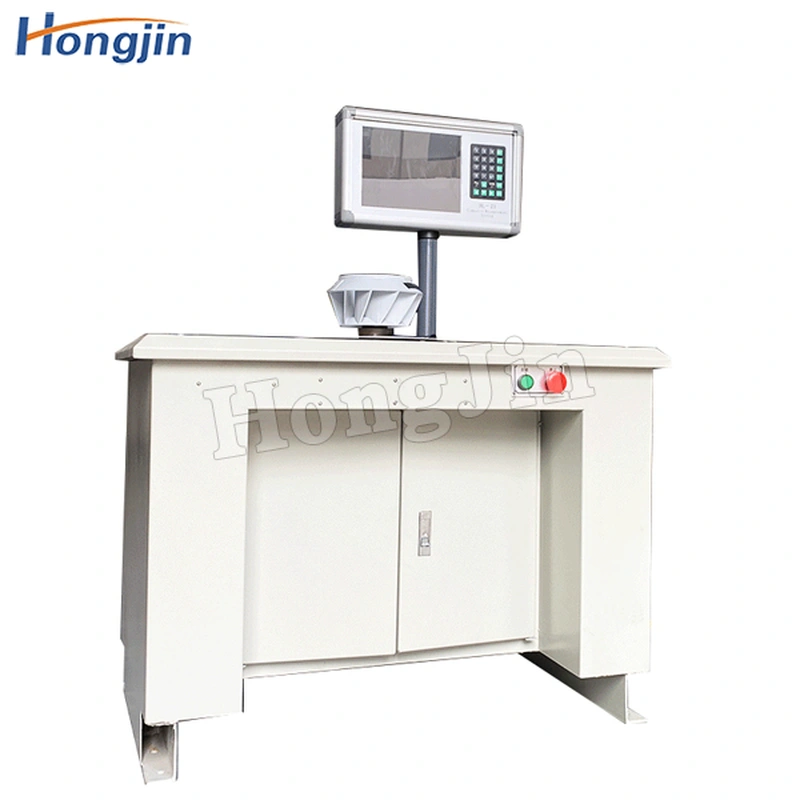

Single-Sided Vertical Balancing Machine

Mainly applicable to flywheel, large impeller, chuck, large clutch, pulley, wind blade and other disc parts for balance correction; Measurement system adopts industrial computer (single chip microcomputer) and international general digital and analog integrated circuit, speed, value, phase all use digital display, unbalance directly (g) display.

описание

Product features：

In the form of menu operation, can achieve man-machine dialogue. Complete industrial computer design, safe use, suitable for harsh production site environment normal use, good stability, amplifier, filtering, calculation and so on circuits have been modular, easy maintenance, complete digital circuit calculation mode high precision, and the use of program control for the future upgrade of equipment to bring feasible space, unbalance directly to "g" or "mg" display. Electromechanical transducer adopts piezoelectric ceramic sensor, which is characterized by small volume, large output, high sensitivity and reliable performance

Product parameters：

Workpiece Max mass	5Kg
Equilibrium speed	900-1200r/min
Min can reach the remaining unbalance emar	5g.mm/kg
Complete machine load	1KVA
Workpiece Max diameter	500mm
Workpiece height	350mm
Unbalance reduction rate URR	≥90%
Power supply	380V 50Hz
