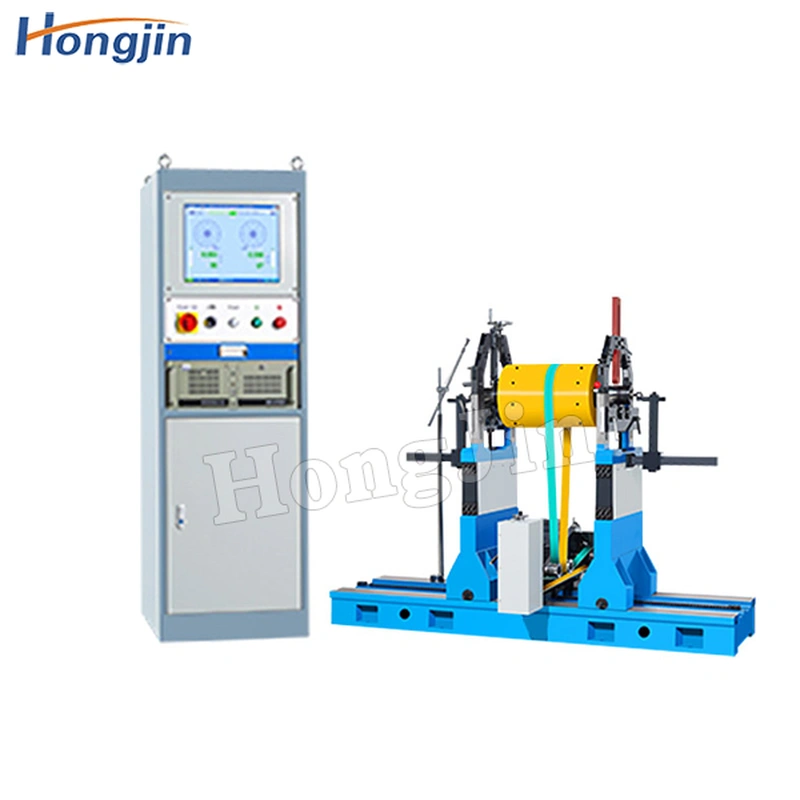

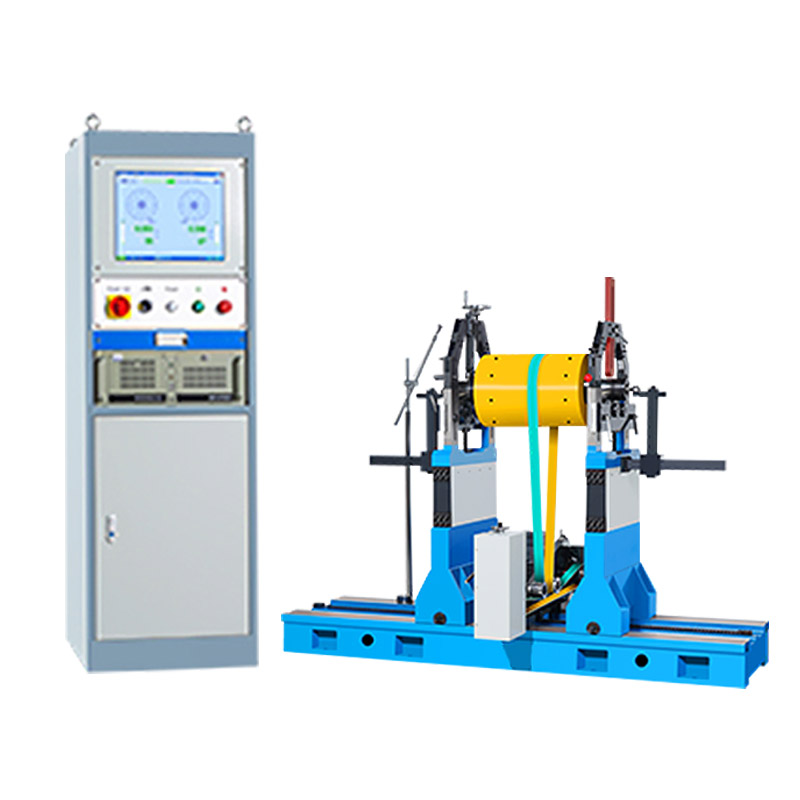

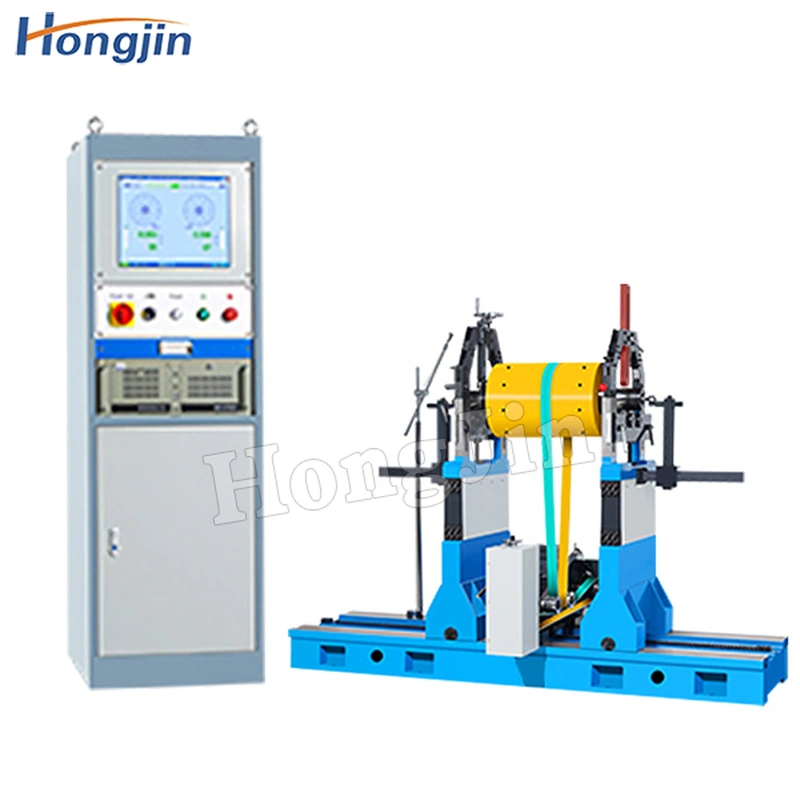

Round Belt Balancing Machine

Ring belt balancing machine is widely used in all kinds of small and medium-sized motor rotor, impeller, crankshaft, drum and shaft rotation workpiece balance correction. Using the ring drive, ensure the balance of the workpiece quality and accuracy, with easy loading and unloading, fast start, high efficiency.

описание

Product Features:

Ring belt balancing machine is widely used in all kinds of small and medium-sized motor rotor, impeller, crankshaft, drum and shaft rotation workpiece

balance correction. Using the ring drive, ensure the balance of the workpiece quality and accuracy, with easy loading and unloading, fast start, high efficiency.

Product parameters:

Workpiece mass range (kg)	16
Maximum outer diameter of workpiece (mm)	Φ260
Distance between two supports (mm)	20～550
Motor power (kw)	0.25
Unbalance Reduction Rate (URR)	≥95%
Roller bearing shaft diameter range (mm)	Φ3～Φ20
Balance speed (r/min)	400～3000 frequency conversion stepless adjustment
