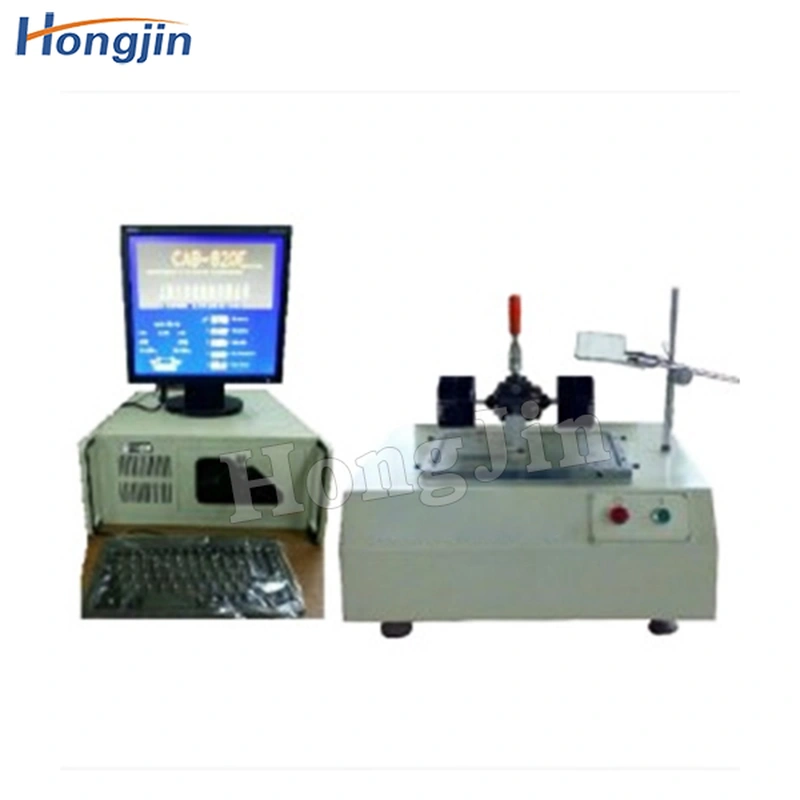

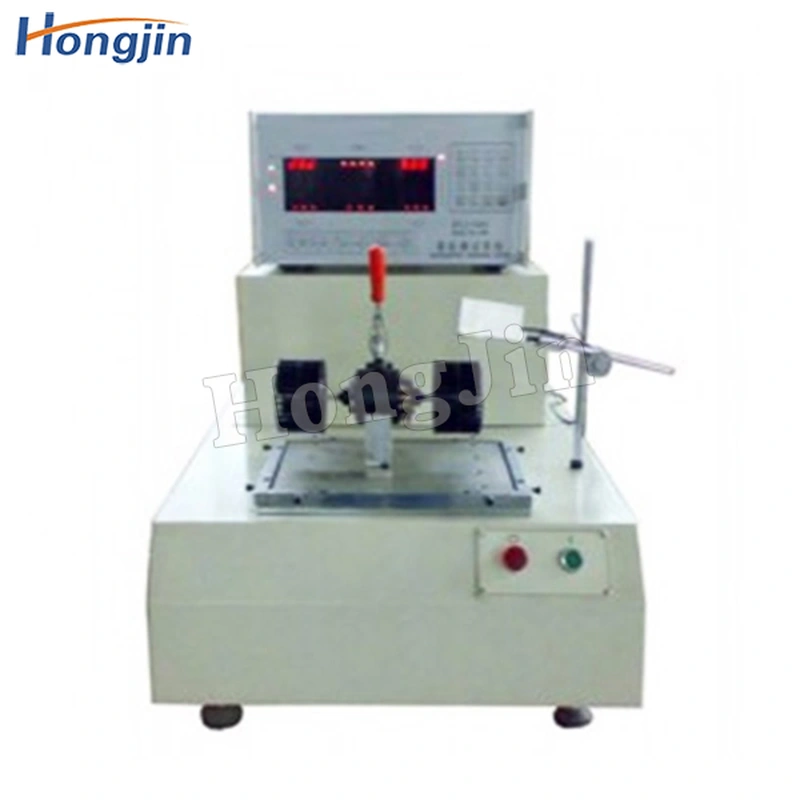

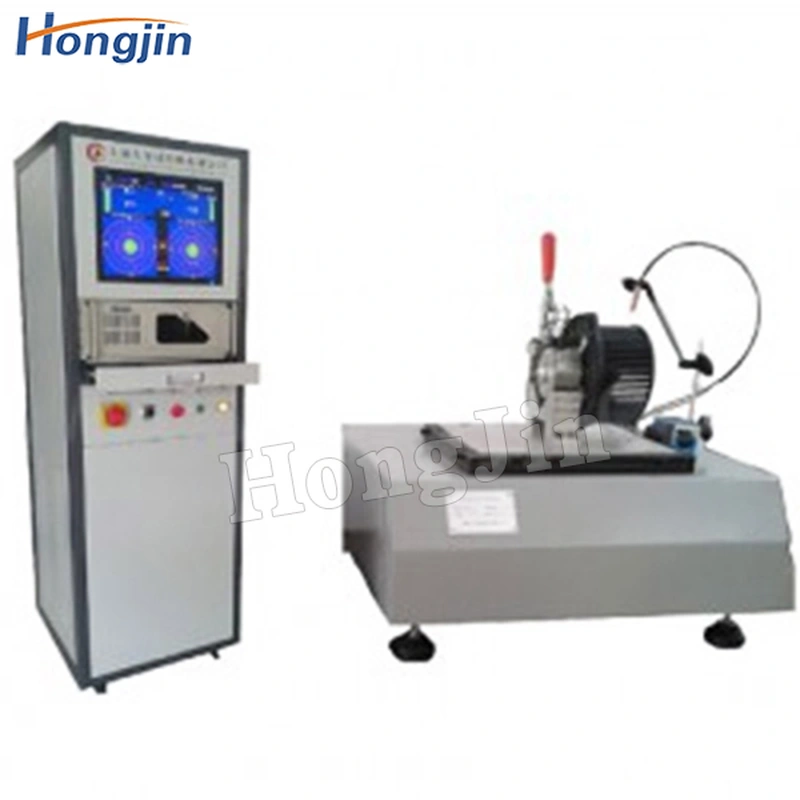

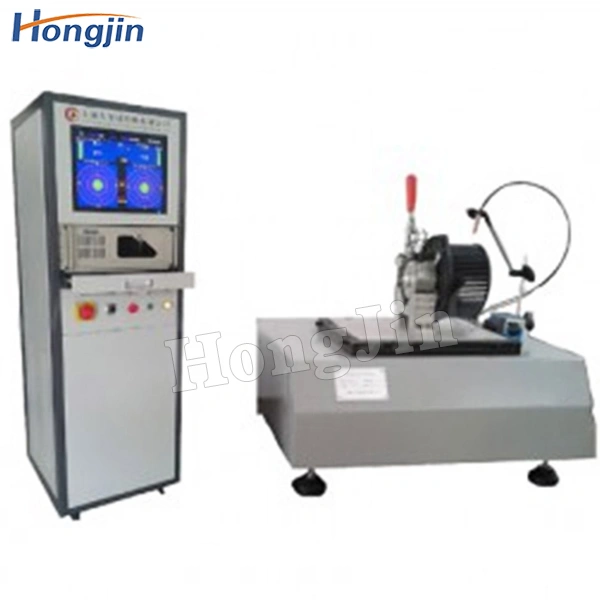

Self-Driven Balancing Machine

Reduce vibration, improve the trial life of the supporting parts (bearings), reduce the user's discomfort, reduce the power consumption of the product

описание

Product Description:

Mainly used in coil fan and other parts of the overall balance, fully consider the overall component of the balance accuracy, eliminate the bearing and other parts and assembly errors caused by the unbalance, improve your product quality. It is mainly composed of precision mechanical unit and advanced measurement and control unit. It belongs to the hard bearing dynamic balancing machine. The products are widely used in: warm fan, running motor rotor, cooling fan, micro blower and other products with power supply balance detection and correction.

Product parameters：

project	Parameter content
Job quality	0.1-1.6 kg
Detection diameter	150mm
Unbalance display unit	mg or g
The minimum unbalance quantity value can be displayed	0.1 mg
Repetition accuracy	≤±2-5mg
Detection speed	600-3500 RPM (adjust according to customer's workpiece RPM)
Unbalanced reduction rate	0.95
Power supply	220V
