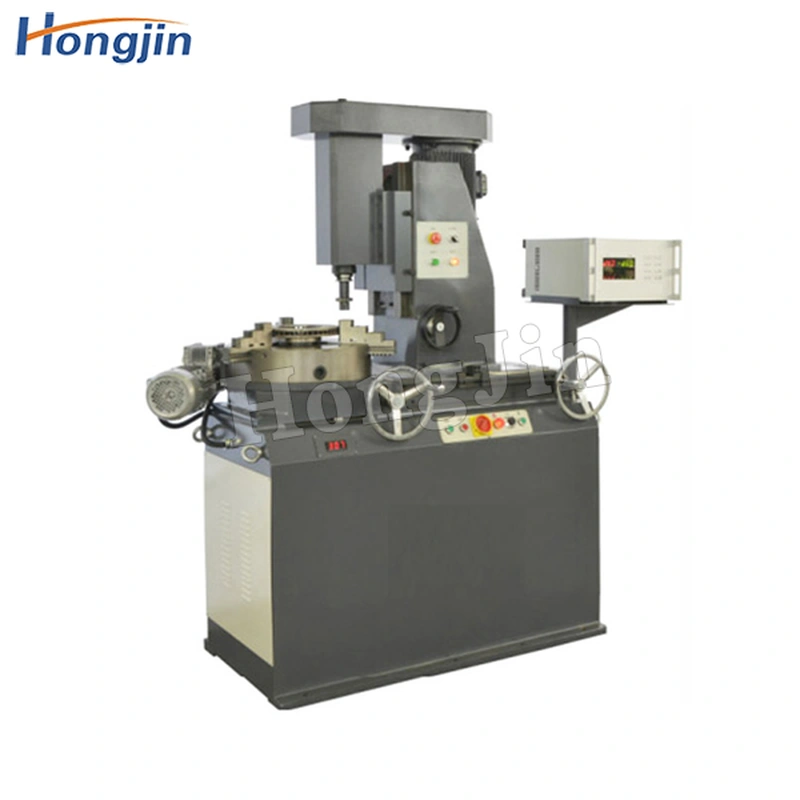

Milling Weight Removal And Balancing Machine

Milling Weight Removal And Balancing Machine

This product is mainly used for water pump impeller/brake disc/brake disc/plate balance measurement and milling weight removal.It is characterized that the balance measurement and milling removal of the rotor are completed on the same equipment.High production efficiency, high precision, measurement, milling to remove the weight is convenient, with different fixture can meet the needs of various specifications of products, suitable for product batch and single production

описание

Product introduction：

This product is mainly used for automobile brake disc balance measurement and weight removal. The feature of this product is that the workpiece balance measurement and milling weight removal are completed on the same equipment. This product has high production efficiency, easy to measure and remove weight. With different fixtures can meet the needs of a variety of specifications, suitable for product batch and single


Product parameters：

Maximum mass of workpiece (kg)100
Milling diameter range (mm)φ220～φ450
Three-jaw clamping range (mm)φ200～φ450
Individual balance maximum diameter (mm)φ500
Balance speedStepless variable frequency speed regulation
Brake disc positioning aperture range (mm)φ65～φ90 (can be adjusted according to the actual user)
Brake disc thickness range (mm)20～75
Maximum depth of deduplication for milling (mm)5
Main motor power (kW)3
Balance Measurement SystemEquipped with DYJ-S60 microcomputer digital display electric measuring box, with electric braking speed control device
