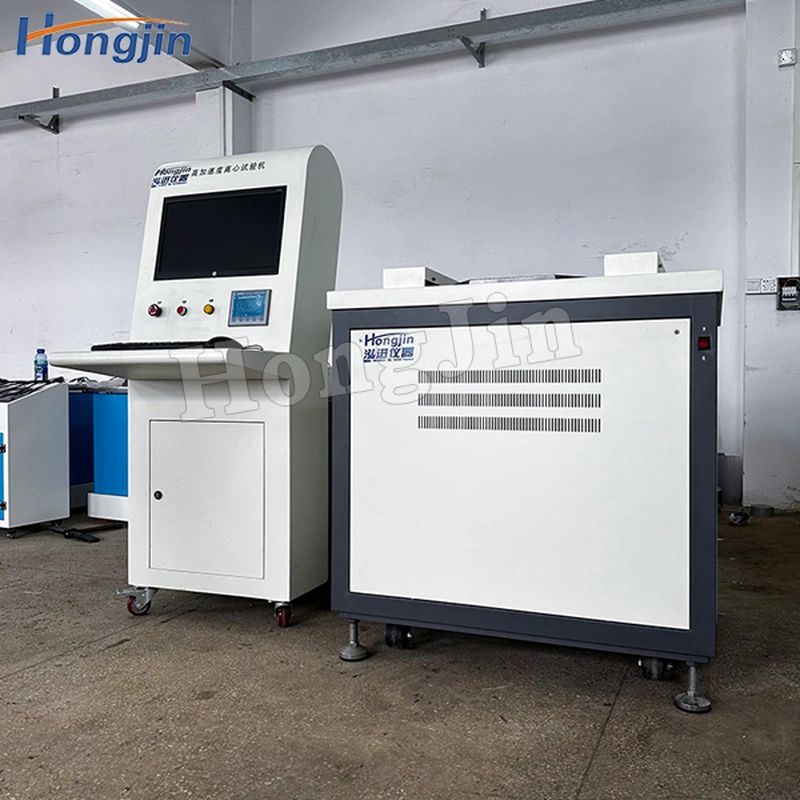

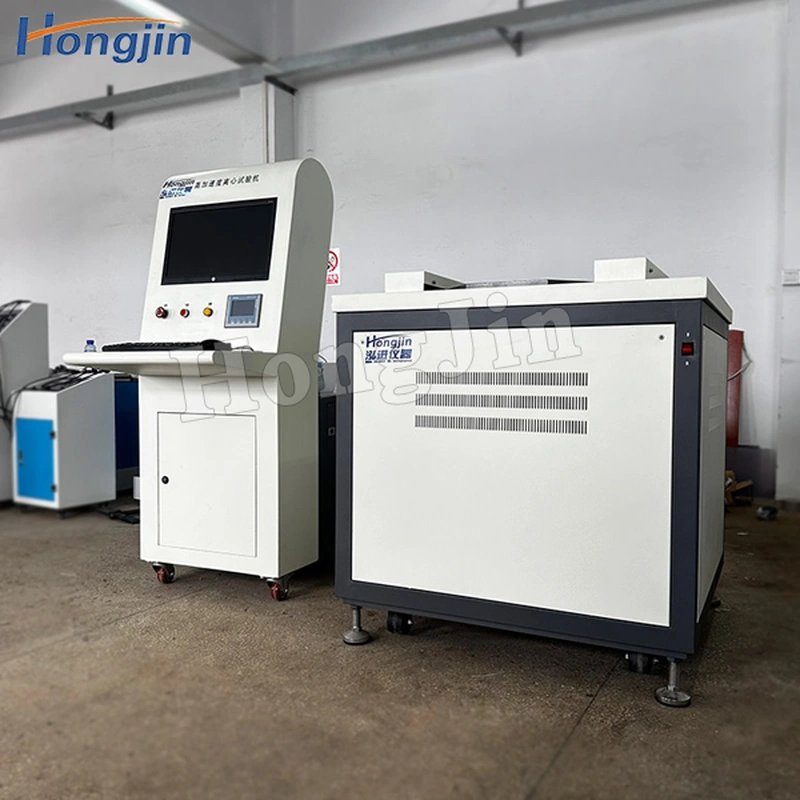

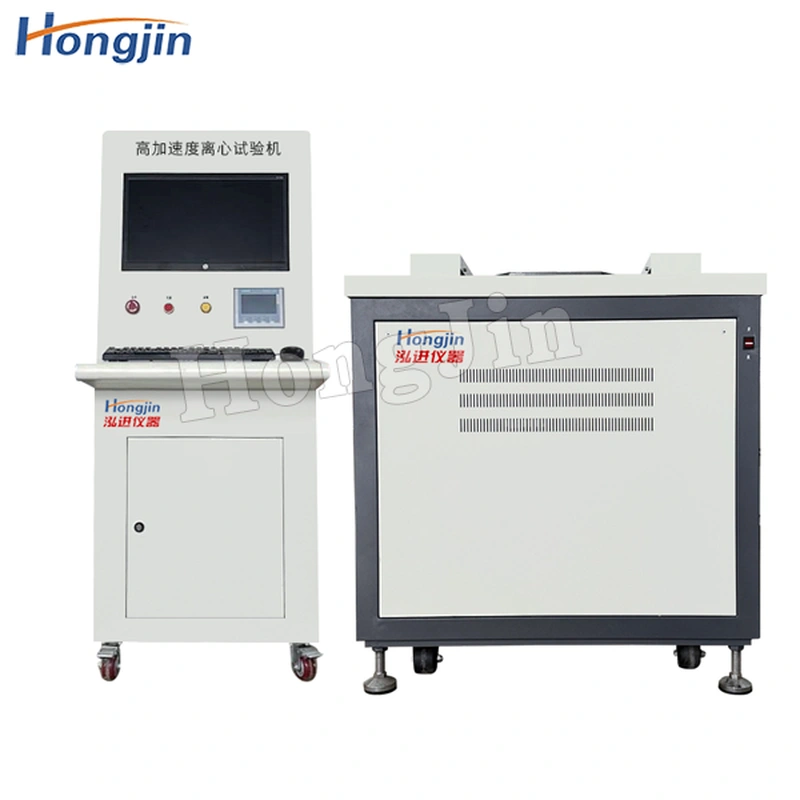

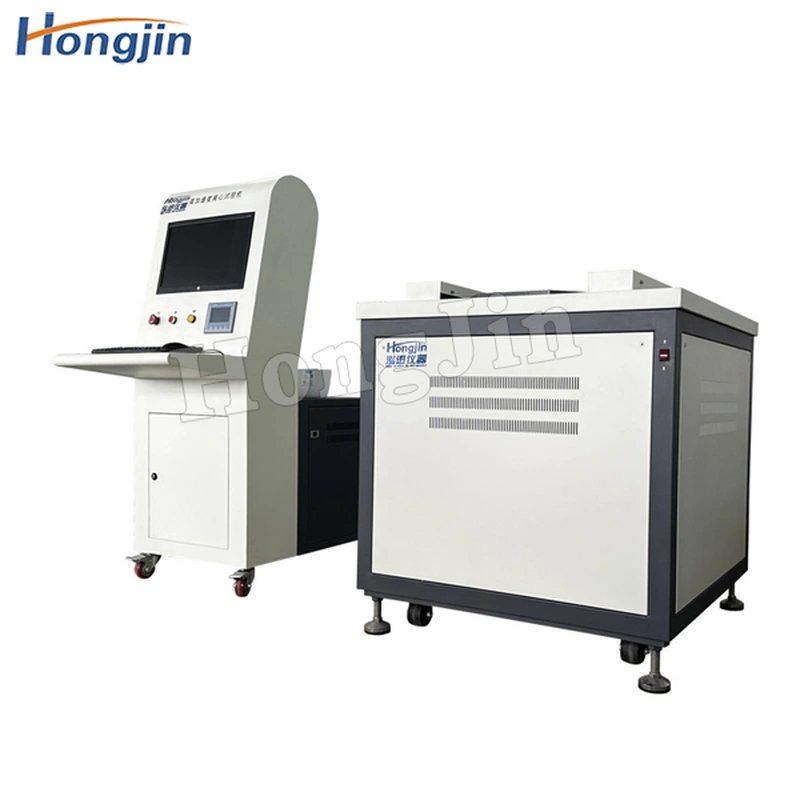

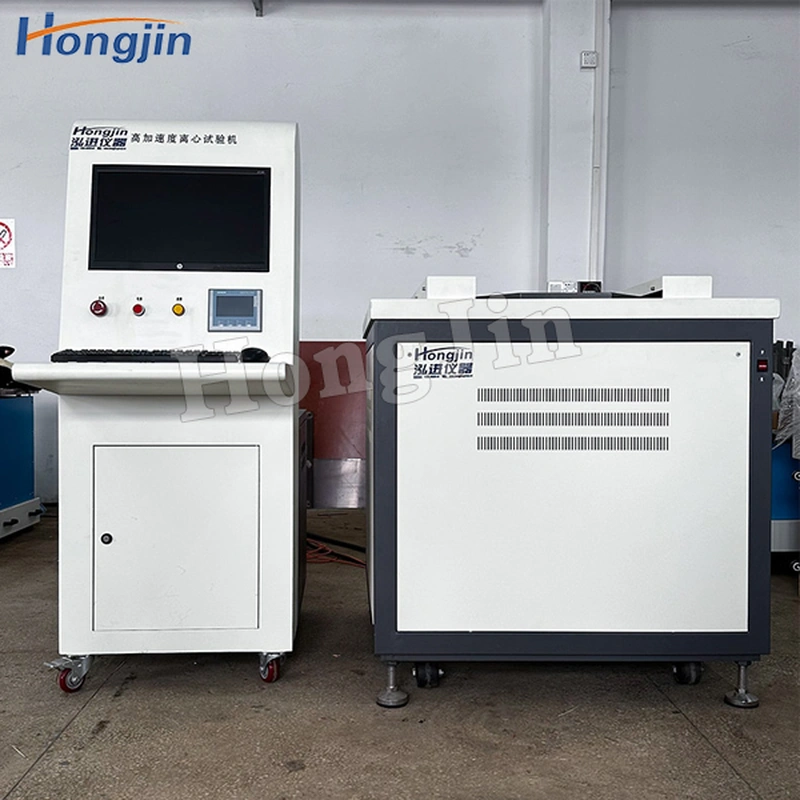

Constant Acceleration Testing Machine (box Type)

High Acceleration Centrifugal Test Chassis Centrifugal Constant Acceleration Simulation Dynamic Motion Testing Machine Steady state acceleration centrifugal testing machine is used to determine the force (except gravity) of electronic components,small equipment and other electrical and electronic products subjected to dynamic overload environment. The structural compatibility and performance are good, as well as the evaluation of the structural integrity of some components, and verify that these components under the expected use of the environment under the combined acceleration stress is normal and the bearing capacity of the structure.

описание

Features

1.automatic computer remote real-time control interface, the operator only need to input a simple value, you can start the
equipment, accurate completion of the acceleration test;

equipment, accurate completion of the acceleration test;
2.the control interface can display the test curve, tolerance and test time in reall time
3.Multi-stage acceleration continuous test can be realized according to different requirements of test products;
4.can realize open circuit, over limit, overspeed protection;

5.in the absence of automatic control or automatic control failure, the equipment can still use manual control to complete the test.


Product parameter：


Maximum load:
0.04 (can be customized according to the product)
Acceleration range:
6 Work stations (optimize the design of work stations according to users" trial products)
Number of working stations:
10m/s2-30000m/s2 (15g-3000g) (magnetic absorption method 1000g) acceleration stability and accuracy can be better than 3%
Working spindle*high speed:
17000r/min (based on calculated radius)
Rotation direction of working spindle:
Rotate in a clockwise direction
Direction of trial product test:
x, Y and z coordinate directions are carried out respectively (determine the sub-fixture)
Test installation calculation radius:
130mm (according to the user's test product optimization design) universal sand burial method of the turntable diameter 335mm, tank 50mm diameter x 50mm height, four stations. Magnetic suction method and special fixture installation can be designed 8-16 stations, each station 0.04kg.
Starting time:
Less than 5min (the time from motor startup of centrifuge to reach steady-state acceleration)
Continuous working time:
5min (duration of centrifuge operation in steady-state acceleration state)
Vacuum pump:
2x7-4 380550W
Main motor:
Three-phase asynchronous motor Y132S1-2, 5.5W, 2880r/min
Overall dimensions:
920mm length ×920mm width ×1200mm height (body) 630mm width ×1000mm depth ×1350mm height(control cabinet)900Kg (body) 100Kg
(control cabinet)
Main machine weight:
900Kg (body) 100Kg (control cabinet)
