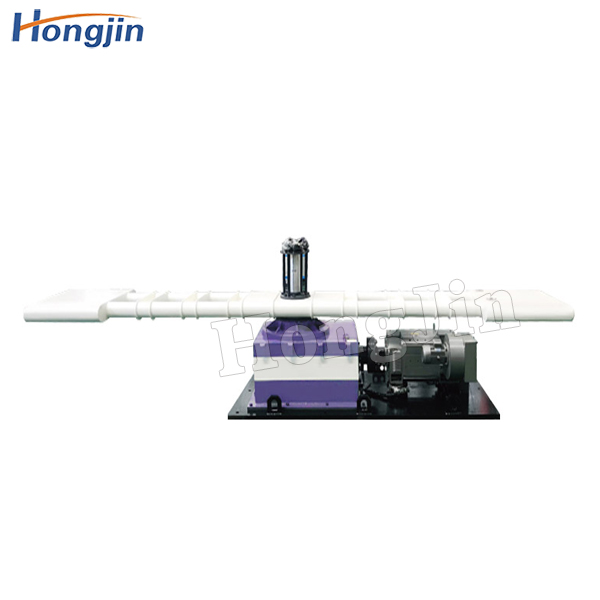

Constant Acceleration Testing Machine (arm type)

Arm Type Centrifugal Constant Acceleration Shock Testing Machine Steady State Acceleration Testing Machine Used for aerospace, aviation, components and other electrical and electronic products under the action of steady-state acceleration (constant acceleration) environment generated by the force (except gravity), the adaptability of the structure and components and the integrity of the performance. Moreover, the electrical parameters of the test products are examined under the steady state acceleration environment. Verify whether the test product can work normally under the steady-state acceleration stress and the bearing capacity of the structure under the expected use environment.

описание

Product Characteristics

Centrifugal constant acceleration tester is an instrument for testing under extreme acceleration conditions according to MIL-STD-810F, MIL-STD-202 and IEC68-2-7.

It is most suitable for testing components or devices. Check the adaptability and reliability of the wire and internal structure when the microcircuit is highly responsive.

It may expose mechanical and structural defects not detected in vibration and impact tests.


Product Characteristics


Model number
HJ31-30
HJ31-50
HJ31-100/ HJ31-100A
HJ31-200
HJ31-500
HJ31-1000
HJ31-1500
Maximum load (kg)
30
50
100
200
500
1000
1500
Mounting platform size
500*500
600*600
700*700
800*800
1000*1000
1200*1200
1500*1500
Acceleration range (g)
0.5-100
0.5-50
Acceleration accuracy (%)
<+3
Installation calculation radius (mm)
1000
1200
1650
2150
2600
3000
5400
Maximum turning diameter(mm)
2500
3000
4000
5000
6000
7000
12000
Startup/shutdown time(Min)
<3
<5
<8
<10
Continuous working time (min)
60
30
Pit diameter (mm)
Ф3000
Ф3500
Ф4500
Φ5500
Φ7000
Φ8500
Ф14000
Collecting ring device
Optional according to user requirements
Table weight (kg)
2500
4000
5000
5500
7000
8000
10000
Power supply
AC380V±10%30KVA
AC380V±10% 45KVA
AC380V±10% 60KVA
AC380V±10% 75KVA
AC380V±10 % 110KVA
AC380V±10 % 150KVA
AC380V±10" % 500KVA
Measurement control system
Full closed loop digital network (remote) automatic control +manual control
remarks
Connecting device and control precision can be configured according to relevant standards or user requirements
Working environment
Temperature 0~40℃; Humidity <: 80% dew free
standard
GB/T 2423 GJB 150A GJB1027 GJB360BMIL-STD-810F IEC68-2-7
