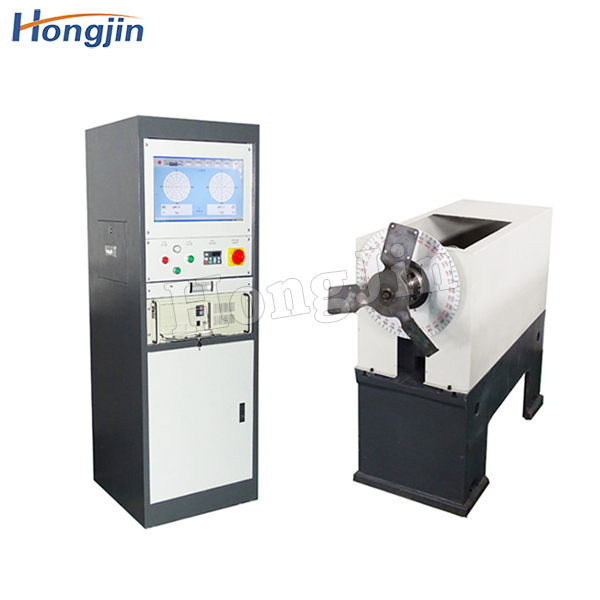

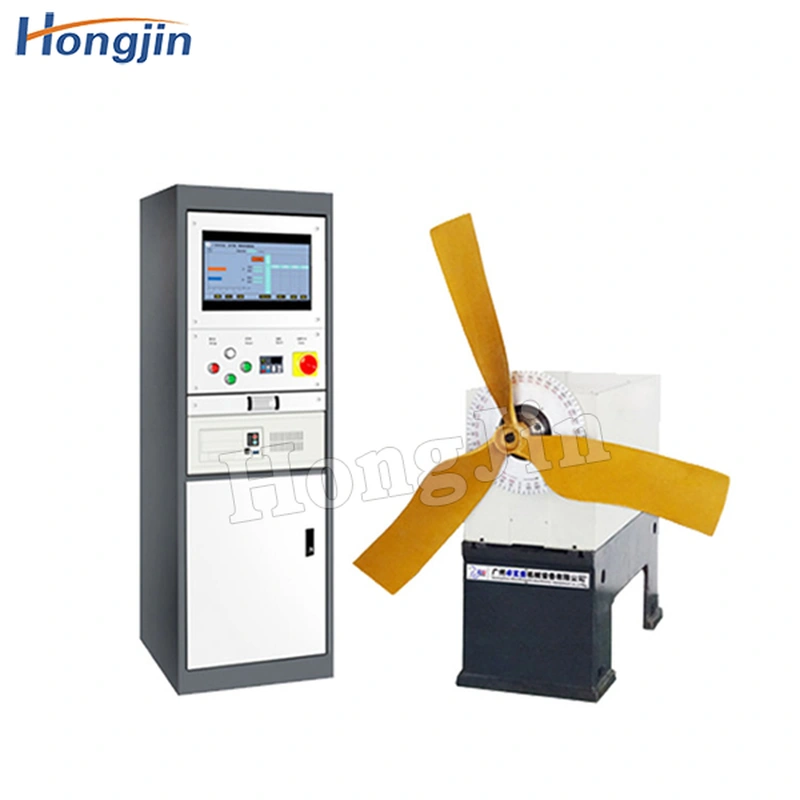

Axial Flow Blade Bbalancing Machine

It is used in various rotating workpieces such as: micro motors, power tools, water pumps, turbocharger rotors, textile machines, high-speed tools, gyroscopes, fans, aerospace and other industries. Axial fan blade balancing machine is mainly used for the balance correction of centrifugal fan blades, axial fan blades and other similar rotating workpieces.

описание

Product Features:

The axial flow fan blade balancing machine adopts an advanced electrical measurement system, adopts a combination of multiple calibration coefficients, automatically adjusts the system sensitivity, shifts without jumping, software and hardware double filtering, high-speed data compression, and the measurement is more stable, accurate and faster. The measurement value display adopts the combination of digital and vector graphics, all system parameters have prompt information, including parameter definition and setting range, and the calibration process has a whole guide.

Product parameters:

Maximum mass of workpiece (kg)	300
Maximum diameter of workpiece (mm)	Ф1200
Distance between two supports (mm)	150-1600
Workpiece support shaft diameter range (mm)	10-70，70-140
Universal joint transmission torque (N.m)	80
Balance speed (r/min)	290/580/650/1300
Motor power (kw)	2.2/3.3
Minimum reachable residual unbalance (g mm/kg)	≤0.5
Imbalance reduction rate	≥90％
