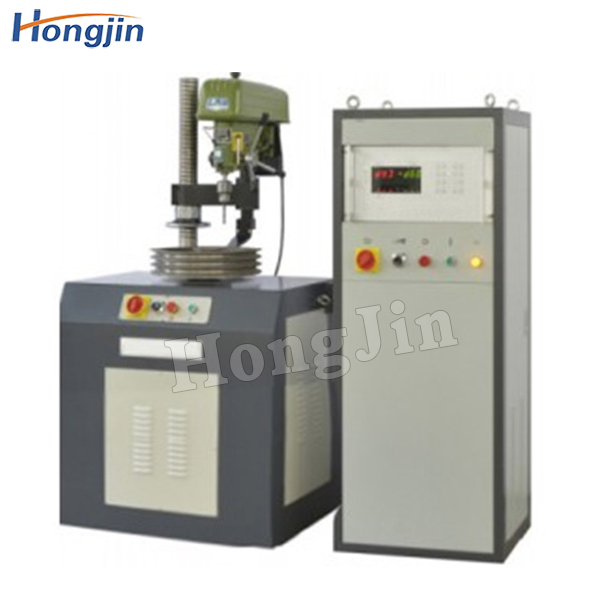

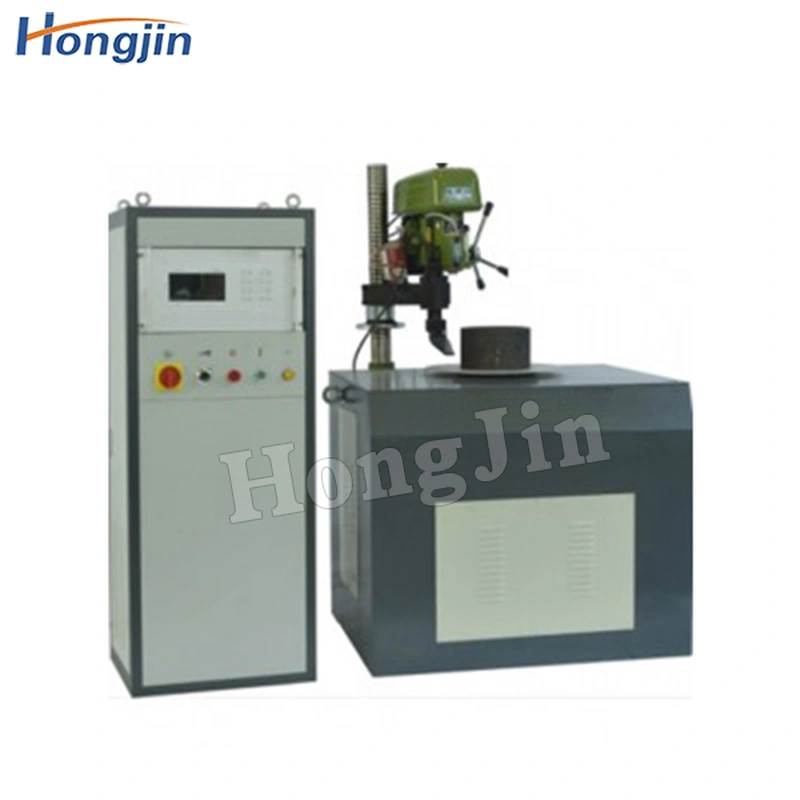

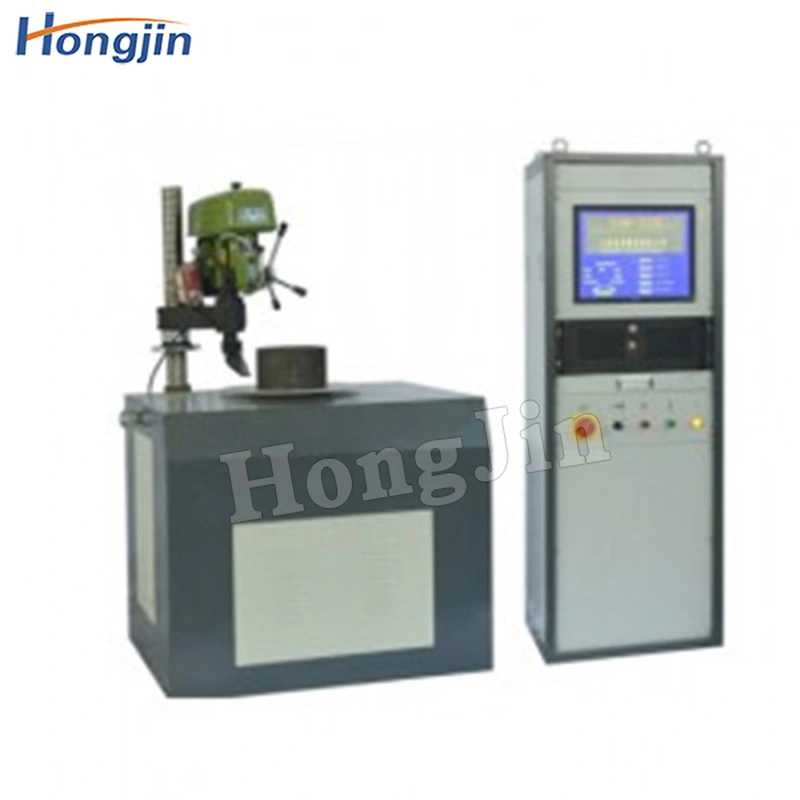

Automatic De-Weighting Balancing Machine

It is mainly composed of high precision mechanical parts and advanced electrical parts, combined as one of the hard support balancing machine, is currently the world's advanced models, applied to a variety of disc workpiece such as: brake disc, clutch, brake drum, water pump impeller, flywheel, gear, pulley, flange, fan impeller, saw blade, cutting tool, grinding wheel, traction wheel and other parts of the balance detection and correction.

описание

Product features:

The machine is equipped with a special fixture and the reweight device after installation is convenient, for users to improve the work efficiency. It is characterized by high precision, high efficiency, easy operation, visual display, rapid measurement, stable performance, speed control by frequency conversion speed regulating device and other advantages. The electromechanical measuring system can be equipped with microcomputer digital display measuring system, also can be equipped with computer measuring system. Rigorous production and inspection personnel, to ensure that every detail of the product is meticulous. Experienced professional after-sales service personnel, ready to provide you with high quality, fast, thoughtful service, for your production to provide a strong guarantee, let you completely at ease. Excellent quality, perfect service, by the majority of users at home and abroad.


Product parameters:

Silicon steel sheet stacking thickness15-60mm
Rotor diameter23-60mm
Rotor shaft diameter2.0-12mm
Measuring rotational speed2100RMP
Milling methodSelect knife type according to rotor unbalance
Power supplyAC220V/50Hz
Gas source0.4-0.6Mpa
Work beat(detection, milling once on each side) 8-16 seconds
Residual Unbalance AccuracyNational standard 6.3
Correct number of rotors per hour200 or so
