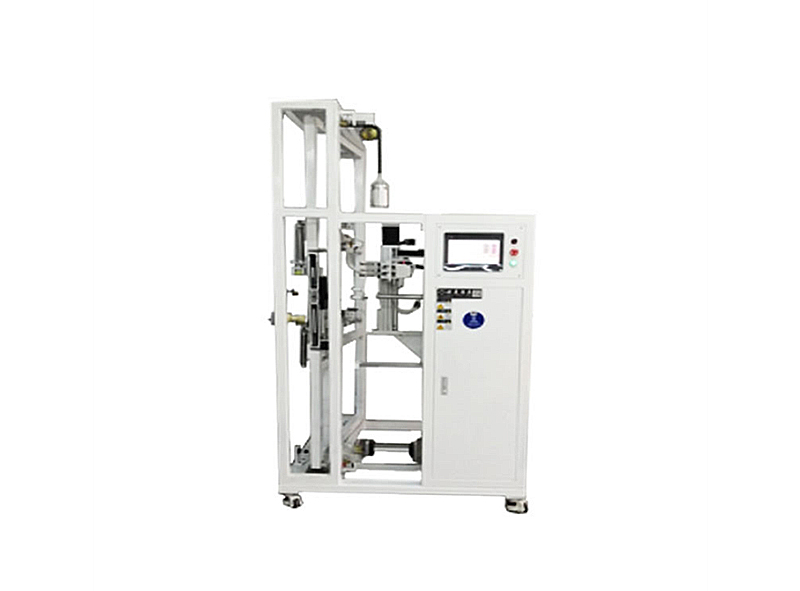

Single-station intelligent lock life testing machine

1. This Equipment Is Manufactured According To The Durable Operation Requirements Of European Standard En12209.

2. Equipment Dimensions: 750X550X1500Mm (With Chassis Tool Box).

3. Clamp One Lock At A Time.

4. The Key Can Be Opened At Any Appropriate Angle (Delta Servo Motor Is Used To Control The Opening Angle) And The Strength Of The Motor Can Be Set By The User. Avoid Twisting Off The Key When The Lock Cylinder Gets Stuck Due To Excessive Force, Making It Easy To Adjust.

5. The Rotation Of The Handle, Ball Or Knob Uses A Stepper Motor.

6. The Insertion And Extraction Key Uses A Stepper Motor To Drive The Screw (Silver Wire Rod Imported From Taiwan And Tbi Navigation), Which Can Achieve A Maximum Insertion And Extraction Distance Of 60Mm. The Insertion And Extraction Speed And Insertion And Extraction Depth Are Adjustable (The Key Can Be Completely Removed From The Lock Cylinder) When It Is Pulled Out From Inside, The Insertion And Extraction Accuracy Of The Key Can Be Controlled Within 0.02Mm).

7. The Control Part Is Controlled By Delta Plc And Equipped With A Weilon 7-Inch Touch Screen To Realize Parameter Changes.

8. High-Precision Safety Protection Device, Shutdown Protection Function In Case Of Failure, And Memory Function.

9. The Surface Treatment Is Baking Paint And The Fixture Is Electroplated.

10. Add Weights And Load Functions According To European Standards (Four Levels: 10N, 25N, 50N, 120N). 11. International Test Methods Can Also Be Fully Used.
