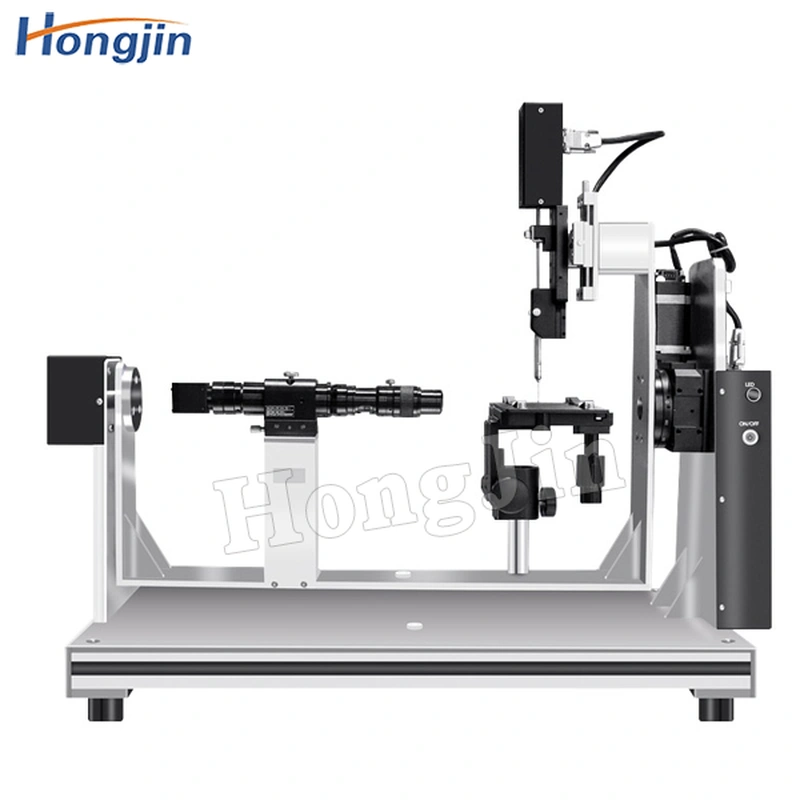

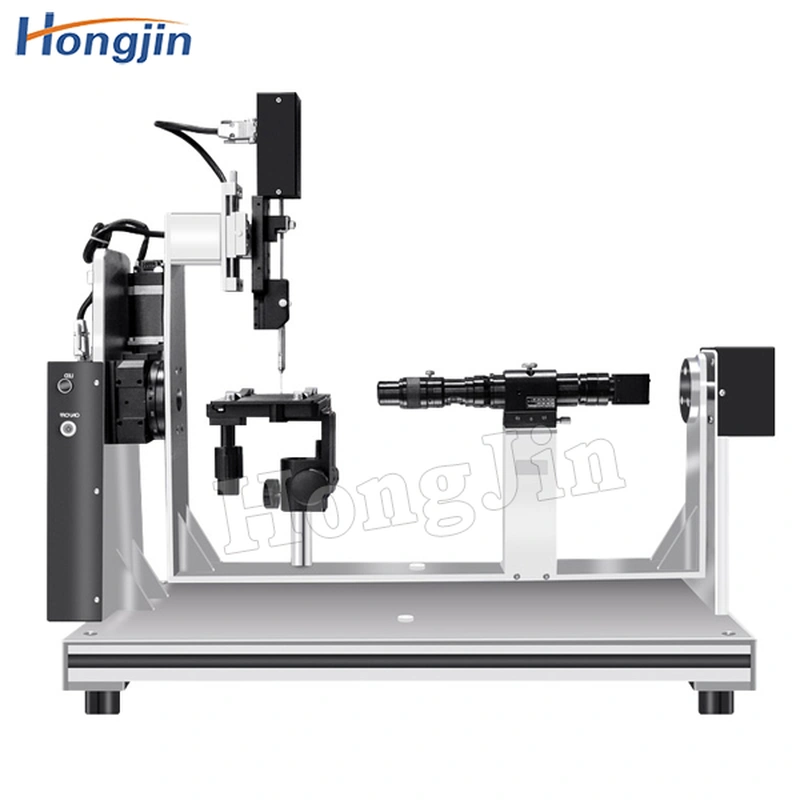

Overall Tilt Type Contact Angle Measuring Instrument

Product features:

1, the main engine adopts high-strength aviation aluminum alloy structure with modular design concept, independently developed integrated chip circuit control,

to ensure that the instrument has strong stability

2. Industrial intensive adjustable LED cold light source system (25000H life) is adopted to ensure clearer imaging and avoid volatilization of small droplets caused by extra heat:

3, the use of high-performance imported industrial movement, industrial grade telecentric zoom lens, the image can be achieved without straightenness, to ensure the imaging effect;

4. USB2.0 standard interface, fast data transmission speed, high compatibility, strong imaging stability;

5. For contact Angle measurement calibration sample, to ensure the accuracy of instrument testing, Angle calibration standard plate 3° 5°8°; 60°90° 120°; 115° (optional);

6, the acquisition system design is flexible, suitable for most of the measurement environment, simple to deal with a variety of complex sample surface measurement;

7. Contact Angle analysis method meets the accurate fitting of all kinds of droplet imaging, including differential ellipse and differential ellipse method for special liquid imaging fitting;

8. Calculation method, the software has realized automatic fitting, to avoid the error caused by artificial lifting;

9. With the rapid fitting function of bilateral contact Angle measurement, comprehensively analyze the surface wettability of liquid and solid, and analyze the actual wetting condition of the surface;

10, dynamic shooting, video fast test data, can continuously record the change of the test contact Angle, and then the software automatically batch fitting;

11. The software automatically generates reports, which cover a variety of data reports in the form of Word, Excel, spectrum and so on;

12. With a variety of optional functions, our R & D team can meet a variety of customized measurement requirements put forward by customers;

13, with forward and backward Angle measurement function, easy to measure the surface stability of the sample;

14. With rolling Angle measurement function, can intelligently distinguish material surface slip point and this way forward and backward Angle measurement;

Product parameter：
