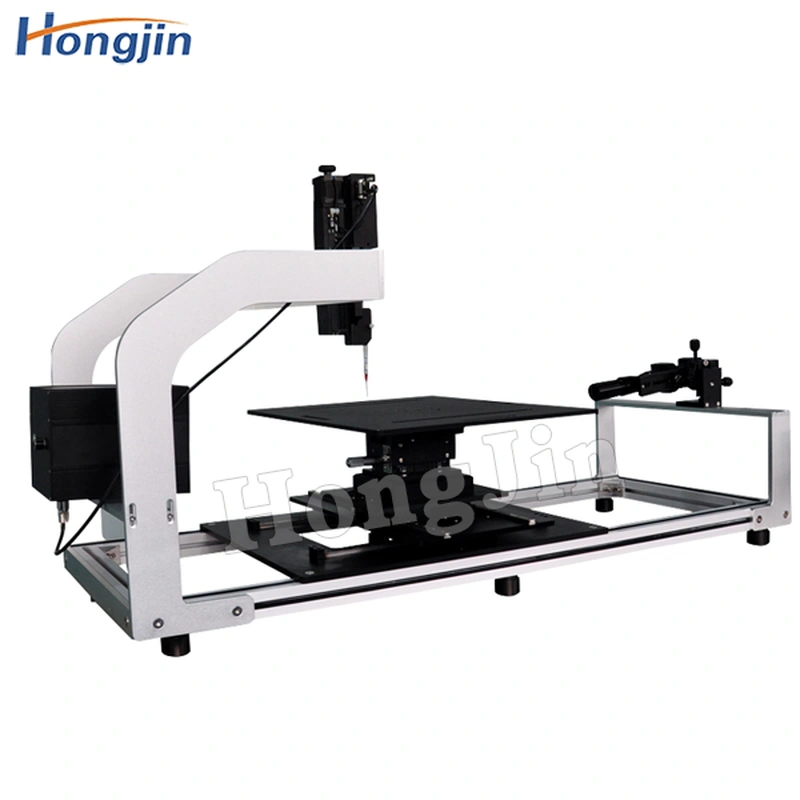

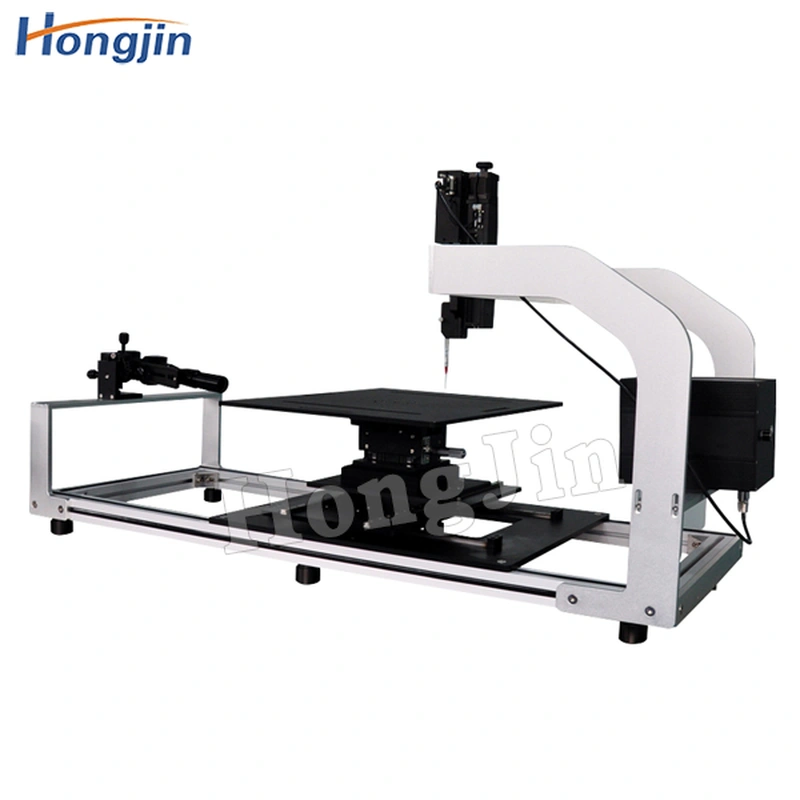

Large Platform Contact Angle

Product parameter

Dimensions:	690mm (length) * 380mm (width) * 680mm (height)
Weight	43KG
Power supply	220V/60HZ
Light source	dense LED adjustable blue tone industrial grade cold light source
Lifespan	The service life is more than 25,000 hours
Syringe	Special supporting high-precision quartz syringe, capacity 500μL
Dropping liquid	automatic liquid feeding controlled by software, the precision is as high as 0.01μL
Injection unit movement	software automatic lifting stroke 60mm; left and right 30mm
CCD	High-speed industrial-grade chip, 25 frames/S, 130W pixels Lens: 0.7-4.5 times high-definition industrial-grade continuous zoom microscope
Acquisition system adjustment	front and rear 50mm (3mm fine-tuning), adjustable viewing angle (head-up, top-down, up-down, 360°rotation, etc. multi-view viewing)
Worktable size	120mm*150mm (can be customized according to the actual sample size)
Maximum sample size	6 inches
Sample stage movement	forward and backward movement automatic, stroke 200mm, precision 0.01mm, left and right movement automatic, stroke 200mm, precision 0.01mm vertical movement manual, stroke 30mm, precision 0.01mm
Contact angle measurement range	0-180°
Contact angle measurement accuracy	±0.1°
Measuring range of surface and interfacial tension	0-2000mN/m
Surface and interfacial tension measurement accuracy	0.01 mN/m
