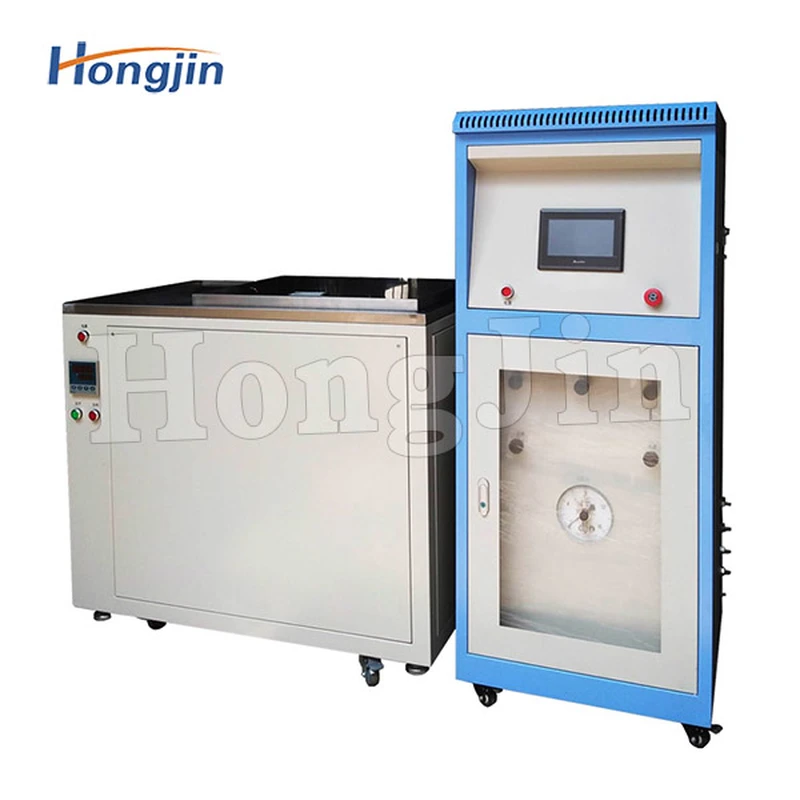

Hydrostatic testing machine for pipes

Hydrostatic testing machine for pipes

Pipe hydrostatic testing machine is used to determine thermoplastic pipe, composite pipe (such as PP-RPP-B, PP-A, PE, PE-X, PVCPVC-UPVC-C and aluminum-plastic composite pipe and other pipes) in a long time of constant internal pressure and constant temperature under the pressure failure time or the maximum pressure value of instantaneous blasting. It is a commonly used testing equipment for plastic pipe manufacturers and testing institutions.

описание

Pipe hydrostatic testing machine is used to determine thermoplastic pipe, composite pipe (such as PP-RPP-B, PP-A, PE, PE-X, PVCPVC-UPVC-C and aluminum-plastic composite pipe and other pipes) in a long time of constant internal pressure and constant temperature under the pressure failure time or the maximum pressure value of instantaneous blasting. It is a commonly used testing equipment for plastic pipe manufacturers and testing institutions.


Product parameters:


Maximum test pressure:0.6~ 10MPA, 0.6~ 16MPA ,0.6 ~20MPA
Sample diameter:With diameter of 12-630mm (other pipe diameters specially made)
Test pipeline at the same time:1 way, 3 way, 6 way (can be expanded according to user needs, independent pressure, independent control)
Pressure accuracy:≤±1%Constant pressure accuracy:  -1%-2%
Constant temperature range:20°℃-95℃Temperature fluctuation:≤±1℃
Temperature uniformity:≤±1℃Constant pressure timing range:0 - 10000 H
Time display accuracy:≤0.1%
Pressure sensor:Test pressure sampling frequency 0.02 seconds
Fixture:Type A fixture with type O sealFixture material:Carbon steel or stainless steel
Power supply voltage:Three-phase 380V
External dimension of control cabinet:About 700X 600x1800MM
