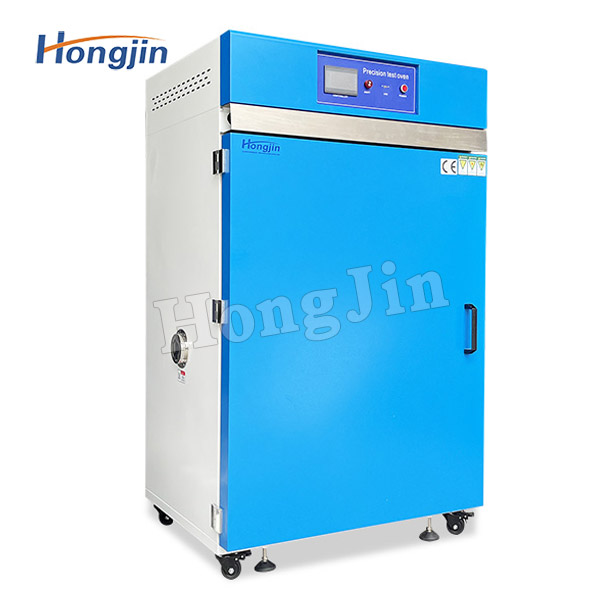

High temperature oven (can be customized)

Features:

1. Strong durability: Since the electric heater is sealed in the box, the contact surface with the outside air is small, so it is not easily oxidized and corroded.

2. Electrical control is safe, accurate and reliable: reasonable structure, large effective working area, full functions, simple operation, convenient maintenance and adjustment, low noise, high reliability, low cost, low energy consumption and high production efficiency.

3. Internal heat circulation: Baking objects are heated evenly.

Temperature Control System:

1. The temperature control instrument is a PID digital display instrument with single-point temperature control, automatic calculation, PV/SV simultaneous display, and button setting;

2. Timer setting: 1 second - 9999 hours (optional setting of hours, minutes and seconds), when the temperature reaches the time, the heating current is cut off (alarm device)

3. Temperature sensing line (K) type;

4. Signal output is 3-32V;

5. The heating control is: solid state relay SSR has no contacts;

6. The heating element is: high temperature resistant heating tube;

7. Temperature range: RT+20~200℃;

8. Heating rate: about 15 minutes at 100℃

9. Control accuracy: ±1.0℃;

10. Display accuracy: 0.1℃;

11. Temperature deviation distribution uniformity: ±2.5℃. (No-load test)

parameter
