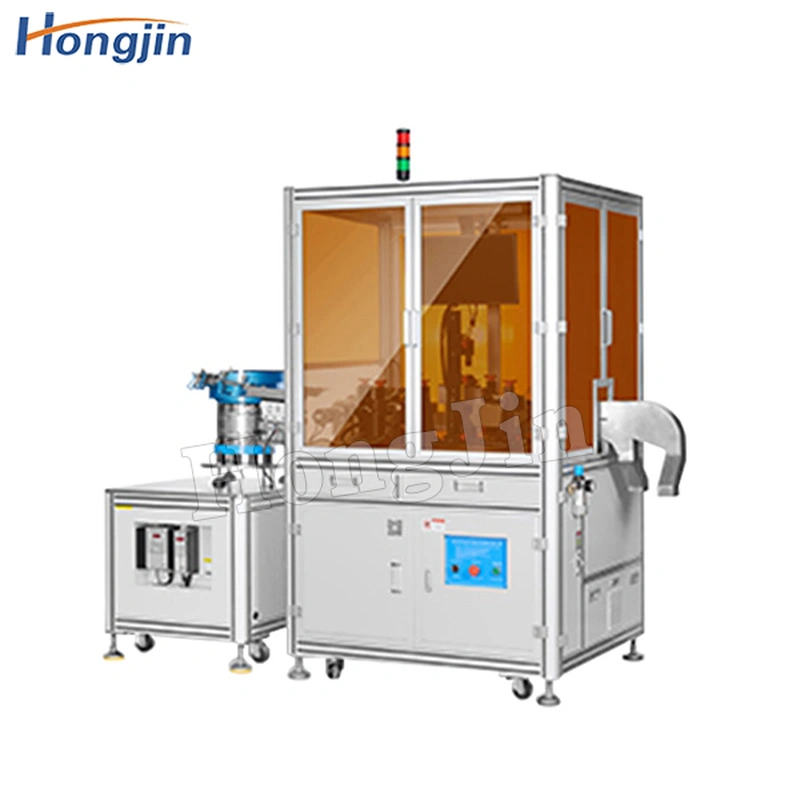

Glass Tray/U-slot Image Screening Machine

Electronic Component Image Screening Machine Glass Plate U-groove Image Screening Machine Rubber Optical image Screening Machine Instead of manual single repetitive inspection work, 100% automatic inspection of products is carried out to improve inspection efficiency, ensure the accuracy of the testing process, and enhance the competitiveness of enterprises. Use CCD measurement technology to quickly obtain the multi-faceted feature size of the product, real-time measurement data and edge contour feature lines at different positions, process the feature detection reflected in the CCD image on the product through powerful software algorithms, calculate the relevant size, and determine the product size. Make precise judgments.

описание

Features

The equipment consists of automatic feeding system, transmission positioning system, automatic measuring system, automatic sorting and unloading system, intelligent measurement and control system and computer data processing system. It can automatically measure the inspection items required by customers and sort according to the measured value of the workpiece. Qualified parts and unqualified parts can be obtained, and statistical analysis can be performed on the measurement data. In the ambient temperature range of 5~40°C, it can work continuously for 24 hours, and can keep the equipment reliable and stable.

Product parameter

Head diameter		1-25
Head thickness		1-25
Total height		1-25
Screening precision		±0.005mm - ±0.02mm
Use air pressure		5kg/cm
Computer host		Industrial computer
Digital camera		German CDD
Net weight		650kg
Outer size		1350×1100×1800(LWH)(customizable)
