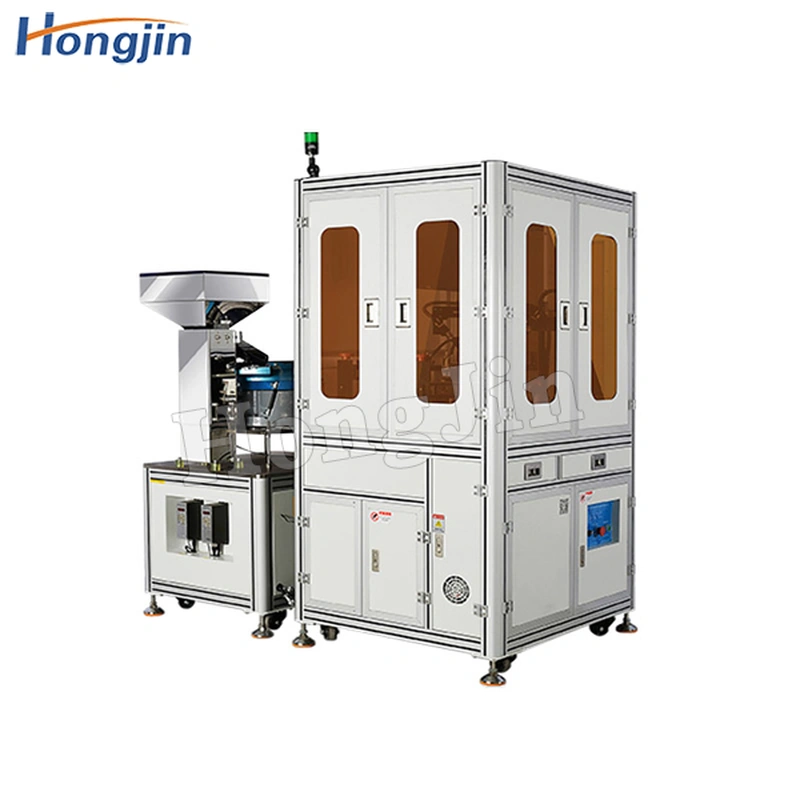

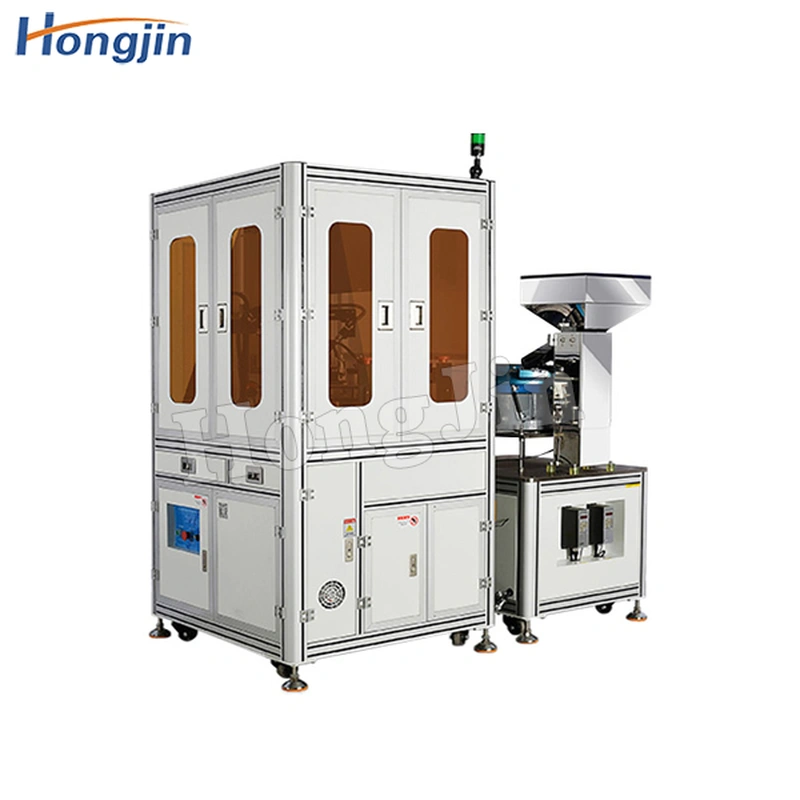

360 Degree Optical Image Screening Machine

High-precision 360-degree Optical ccd Image Screening Machine Automatic Visual Sorting Machine Instead of manual single repetitive inspection work, 100% automatic inspection of products is carried out to improve inspection efficiency, ensure the accuracy of the testing process, and enhance the competitiveness of enterprises. Use CCD measurement technology to quickly obtain the multi-faceted feature size of the product, real-time measurement data and edge contour feature lines at different positions, process the feature detection reflected in the CCD image on the product through powerful software algorithms, calculate the relevant size, and determine the product size. Make precise judgments.

описание

Features

The equipment consists of automatic feeding system, transmission positioning system, automatic measuring system, automatic sorting and unloading system, intelligent measurement

and control system and computer data processing system. It can automatically measure the inspection items required by customers and sort according to the measured value of

the workpiece. Qualified parts and unqualified parts can be obtained, and statistical analysis can be performed on the measurement data. In the ambient temperature range

of 5~40°C, it can work continuously for 24 hours, and can keep the equipment reliable and stable.

Product parameter

Head diameter		ф5-ф15(mm
Head thickness		ф2-ф10(mm)
Total height		5-50mm
Screening precision		±0.02
Use air pressure		5kg/cm
Computer host		Industrial computer
Net weight		700kg
700kg		1400×900×1800 (LWH)(customizable)
