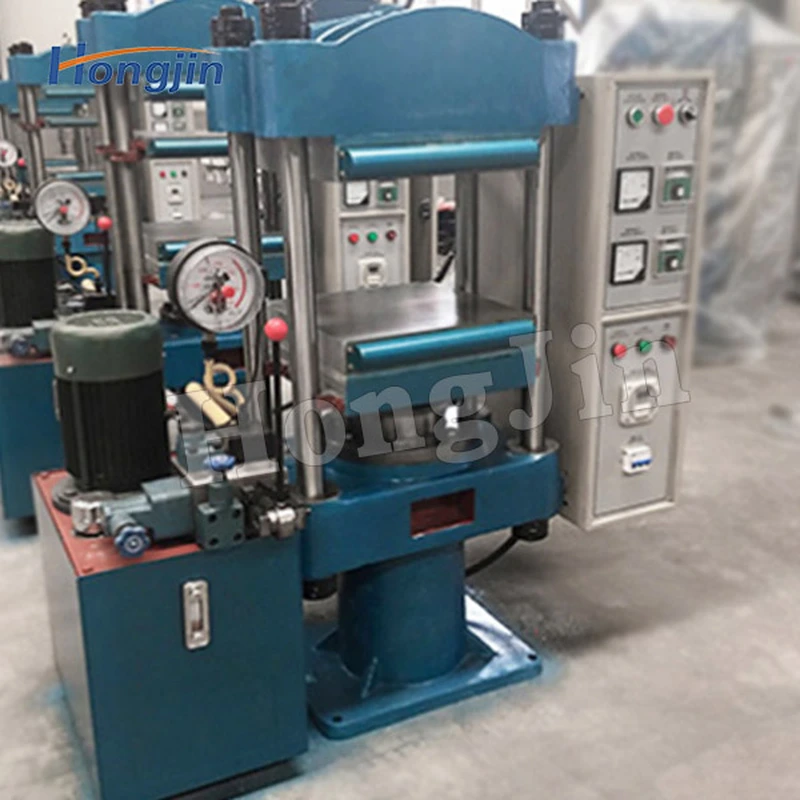

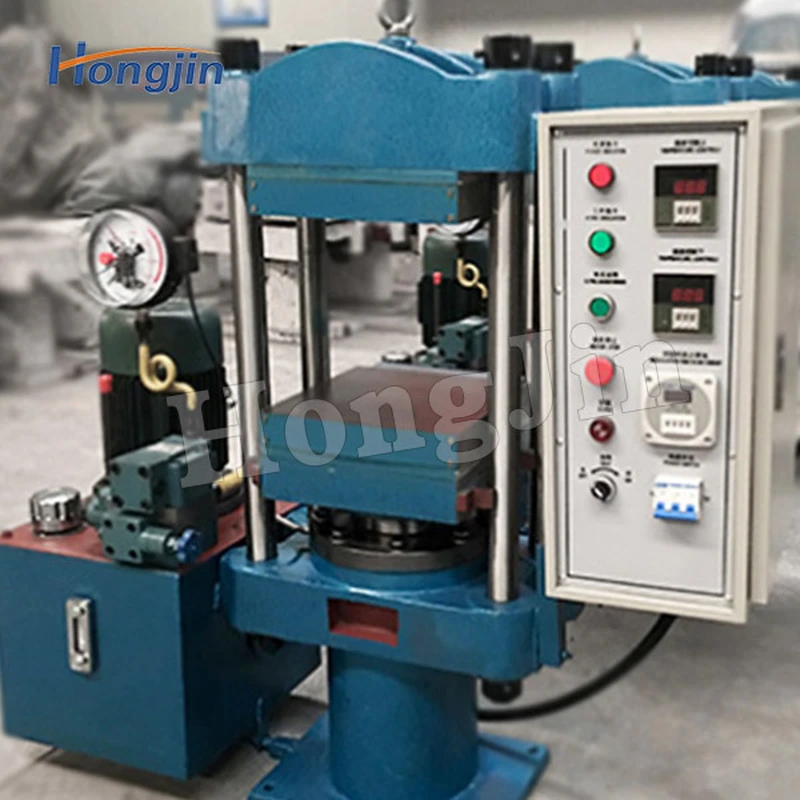

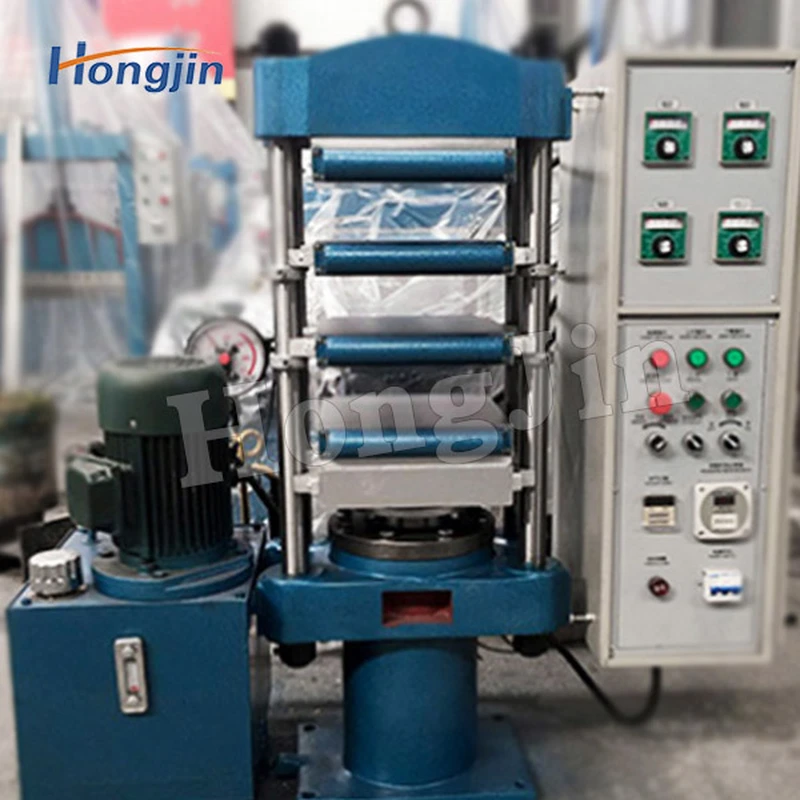

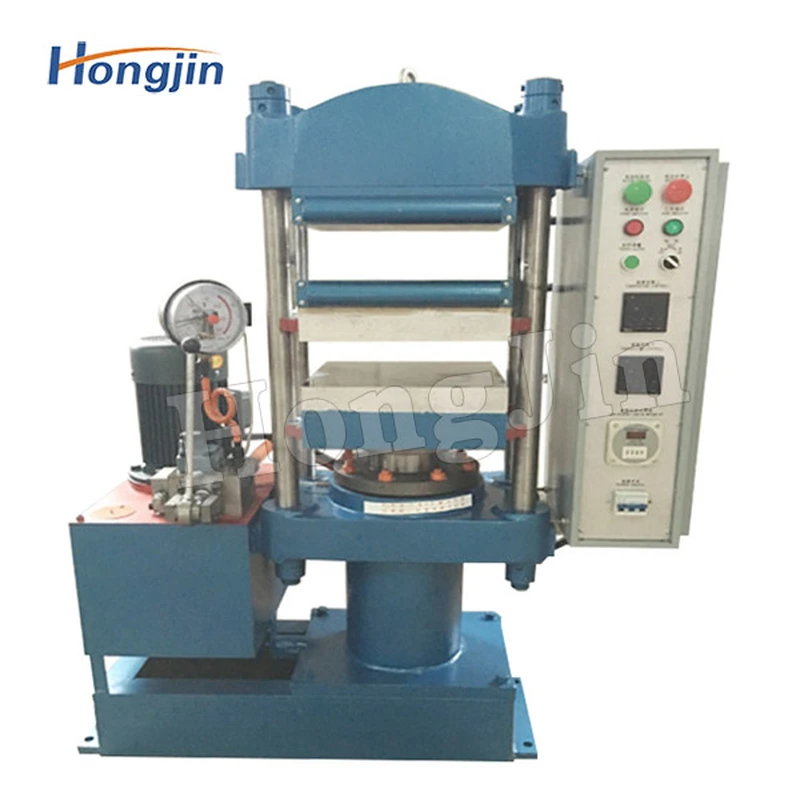

Rubber Flat Vulcanizer

Plate vulcanizer is a press with a heated plate. (It is also the main equipment in the rubber industry, no matter which rubber factory, you can see different types of plate vulcanizing machine, especially the miscellaneous products factory, it is the main equipment.) It has the characteristics of simple structure, high pressure and wide adaptability. Mainly used for small and medium-sized mold products, adhesive tape, rubber plate, etc.

Description

Features of Rubber Flat Vulcanizer

The main engine is a four-column overall structure, pressing type for upward pressure type, divided into the main engine, oil tank and electric control box three parts. The electric heating is divided into three ways by the automatic temperature control instrument, which can be adjusted in the range of 20-200 degrees. When the temperature is reached, the circuit can automatically maintain the constant temperature, and when the curing time is reached, the alarm will be automatically given.

Parameters of Rubber Flat Vulcanizer

Nominal closing force	0.25 MN	Plate area	350× 350MM
Hot plate spacing	150MM	Working level	2 layers (can be added on request)
Maximum liquid pressure	14.5 MPA	Maximum plunger stroke	250MM
Heating power	7.2 KW	Motor power	2.2 KW
Overall dimension	1250×550X1420MM	weight	1.1 T

Rubber Flat Vulcanizer

Description

Related Product

Carbon black content detector

Colorimeter

Izod Impact Testing Machine

Thermal Deformation Vicat Softening Point Tester

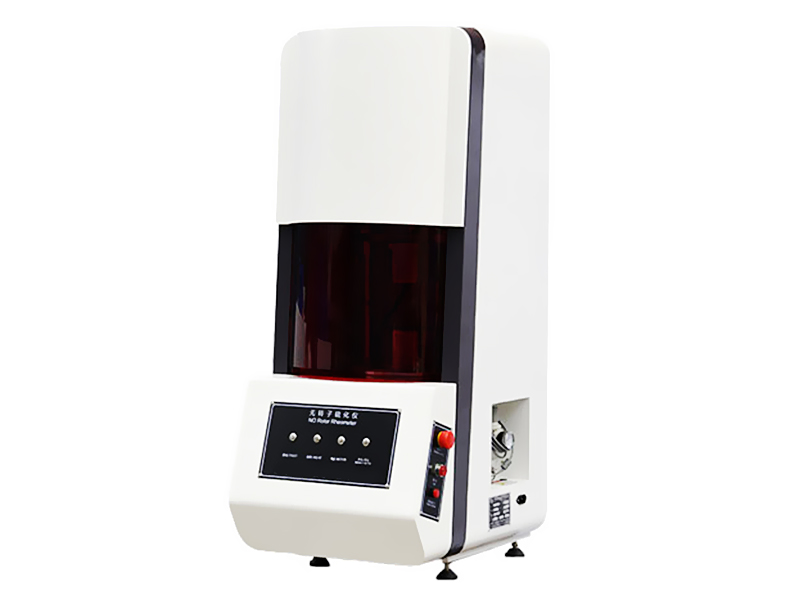

Rotorless vulcanization testing machine
