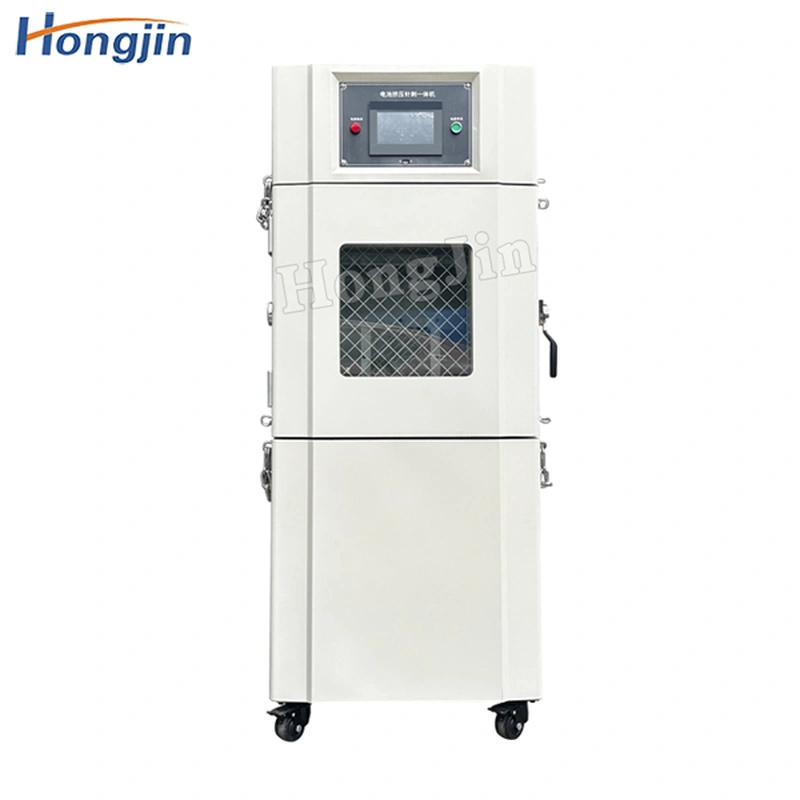

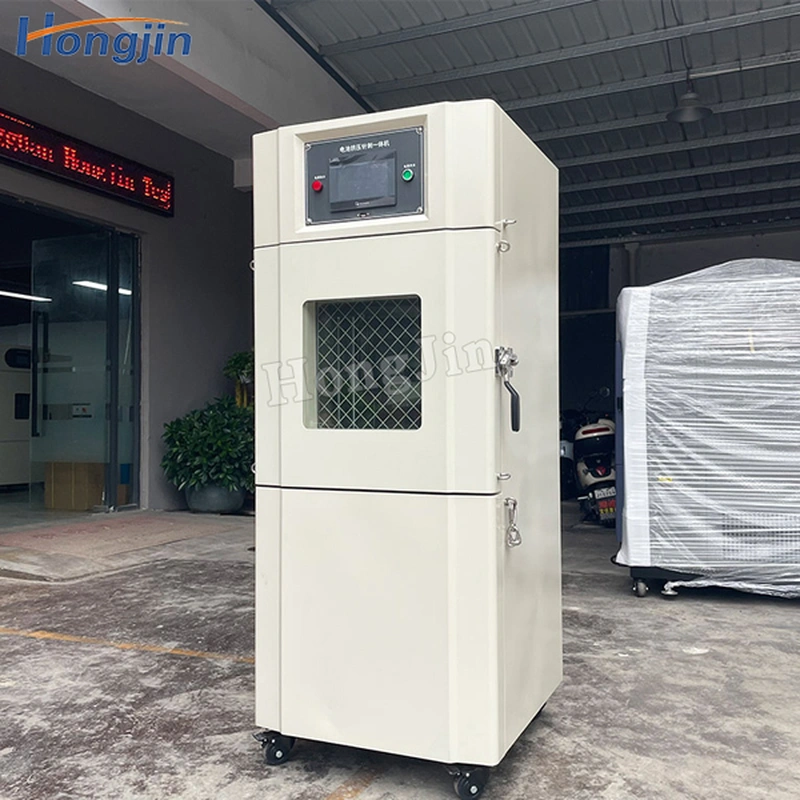

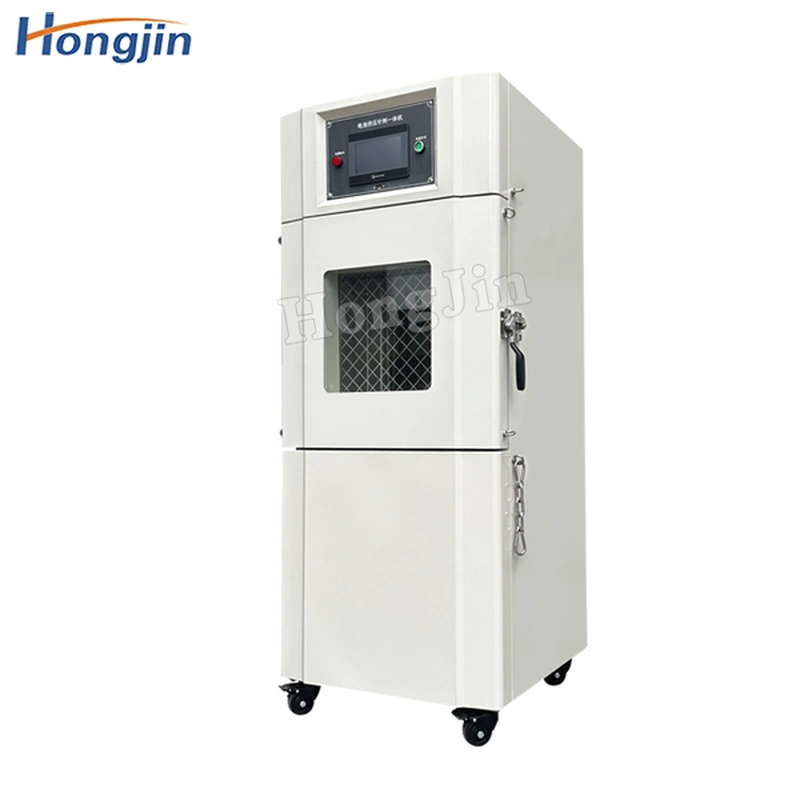

New Energy Battery Acupuncture and Extrusion All-in-One Machine

This machine is suitable for simulating the needling of various batteries in the process of transportation and storage. The test should be carried out at the ambient temperature of 20℃±5℃. The battery connected with the thermocouple (the contact of the thermocouple is fixed on the large surface of the battery) is placed in the ventilator, and a corrosionless steel needle with a diameter of 2-8mm is used to Pierce the central position of the largest surface of the battery at a speed of 10mm/s~40mm/s. Keep any time and observe the test results of the battery does not explode, do not fire is qualified.

описание

Applicable criteria:

GB/T 31485-2015 "Power batteries for electric vehicles safety requirements and test methods" GB/T 31241-2014 "portable electronic products with lithium ion

batteries and battery pack safety requirements" UN38.3 "United Nations dangerous goods transport test and standard manual" IEC62133 Safety Requirements

for batteries (groups) composed of cells and for use in portable Devices UL 1642:2012 Lithium Battery Standard

Product parameter：

Extrusion parameter
Technical requirement	1. Inner box size: 600x500x500mm (width x depth x height);
	2, equipment dimensions: 950x780x1730mm (width x depth x height);
	3, inner box material: SUS201 stainless steel plate, thickness 1.2mm and coated with teflon;
	4, the outer box material: 1.5mm thick cold rolled steel plate paint treatment;
	5, observation window: size of 250x250mm two-layer toughened glass, transparent window is equipped with stainless steel mesh;
	6, smoke outlet: diameter of 100mm, located at the back of the box;
	7, pressure relief mouth: opening size 200x200mm, located at the back of the box, when the sample explosion, the pressure relief mouth will be discharged;

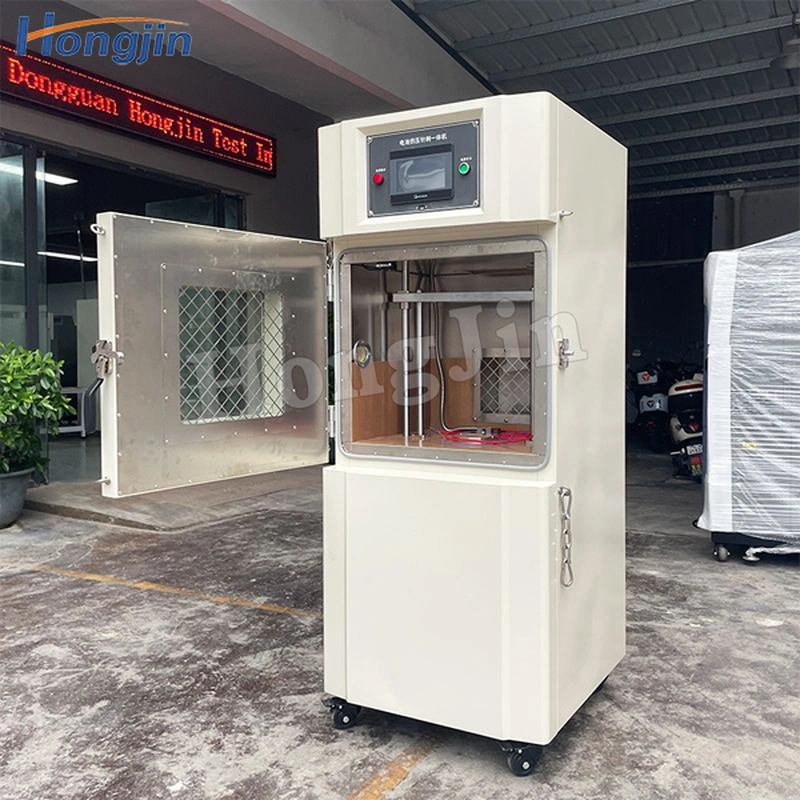

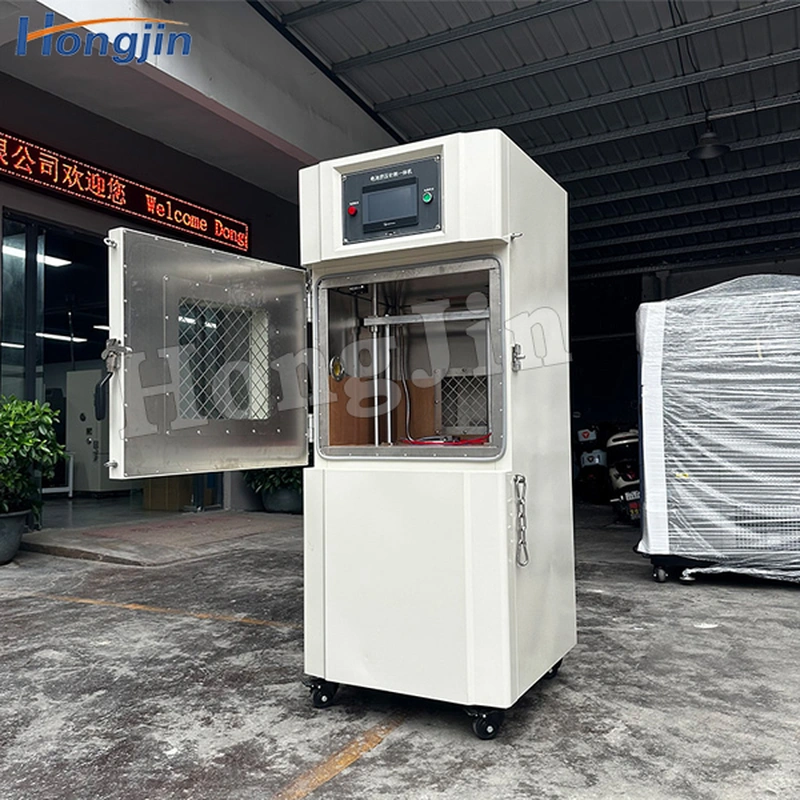

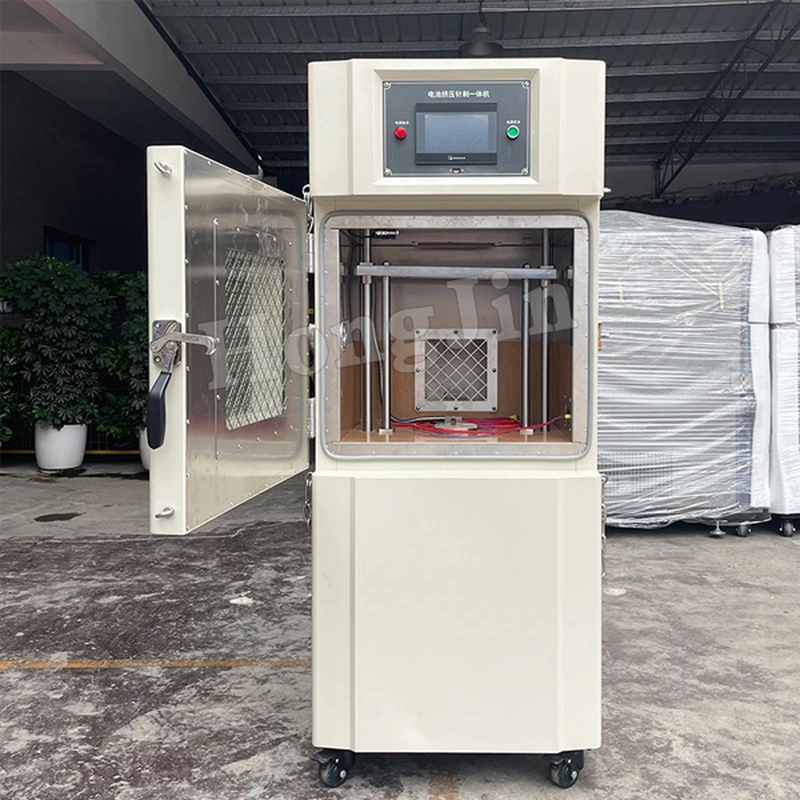

	8. Door: The single door is open to the left, the door is equipped with a safety limit switch, and the side is equipped with an explosion-proof chain. Only when the door is closed can the equipment be operated to ensure the safety of personnel;
	9. Test hole: there is a 50mm diameter test hole on the left side of the equipment, which is convenient to put the temperature, voltage, current and other collection lines;
	10, lighting device: easy to observe the state of the tested sample;
	11. Drive mode: hydraulic drive
	12. Extrusion direction: a. For cylindrical batteries, the longitudinal axis of the extrusion battery should be parallel to the two plates of the extrusion device; b. For square and soft pack batteries, only the wide side of the battery is squeezed; c. For coin or button batteries, the upper and lower planes of the battery are parallel to the flat plate for extrusion test:
	13, pressure range: 1-20kN (manual adjustment)
	14, pressure display accuracy: 0.1N,
	15, sensor resolution: 1/1000;
	16. Unit conversion: kg, N, Ib
	17. Data sampling frequency: 100ms
	18. Test maximum battery size: 200x200x200mm (width x height x depth)
	19, extrusion stroke: 250mm
	20, pressure holding time: 0-99H99 (H/M/S can be set arbitrarily)
	21, extrusion head: standard flat extrusion head, area ≥ 20cm
	22, extrusion degree: extrusion pressure up to 13±0.2kN, keep 1min;
	23, machine weight: 260kg
	24. Power supply: AC220V
	25. Power: 2KW
Acupuncture parameter
Needling requirement	1, steel needle: φ5mm ~ φ8mm high temperature resistant steel needle, length of 100mm
	2, acupuncture stroke: 200mm(customizable)
	3, clamping battery distance: 200mm
	4. Unit conversion: Kg, N, LB
	5, acupuncture speed: 10~40mm/s (not adjustable)
	6, acupuncture force value: 1-20kN
	7. Force display: touch screen display
	8. Drive mode: hydraulic drive
