Battery explosion-proof test box This type of equipment is used to find early failure, battery explosion-proof test box simulation of actual conditions assessment and structural strength test, the product has a wide range of applications, wide application surface, significant test effect, can be, rely on. Sinusoidal wave, frequency modulation, frequency sweep, programmable, frequency doubling, logarithm, acceleration, amplitude modulation, time control, full function computer control, simple fixed acceleration/fixed amplitude. The equipment has passed the test of continuous trouble-free operation for 3 months with stable performance and reliable quality.

описание

Product features:

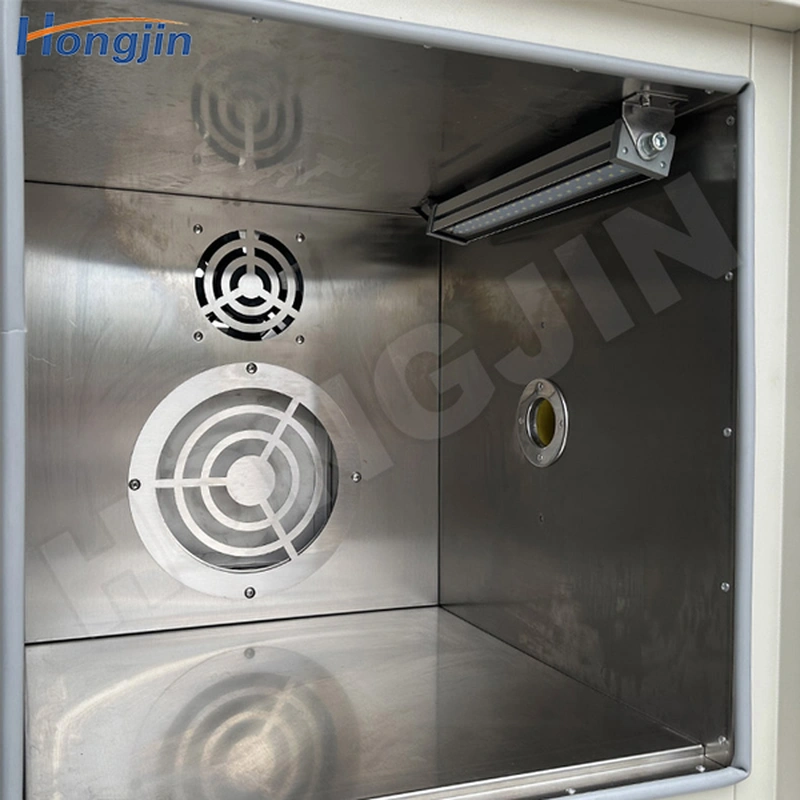

1. Electric wood or teflon tape are placed inside the test box, which is effectively insulated and effective flame retardant and easy to clean;

2. At the back of each box, two round wire mounting ports are opened to facilitate the test of connecting lines through;

3. There is a separate test panel to control the lighting and exhaust of each test room; There are smoke detection alarms, in case of fireworks in the box

exhaust fan automatically open smoke;

4. There is insulation design between each layer, which can avoid mutual influence test.

Test principle:

The battery is placed in the explosion-proof box, external charging and discharging tester.

Product parameter:

Technical parameter	1, each layer of test box size: 500500500mm (length * width * height); (can also be customized according to customer requirements)
	2, material: outer box: 1.5mm thick A3 steel plate and paint treatment, inner box: SUS#201 thickness 1.2mm;

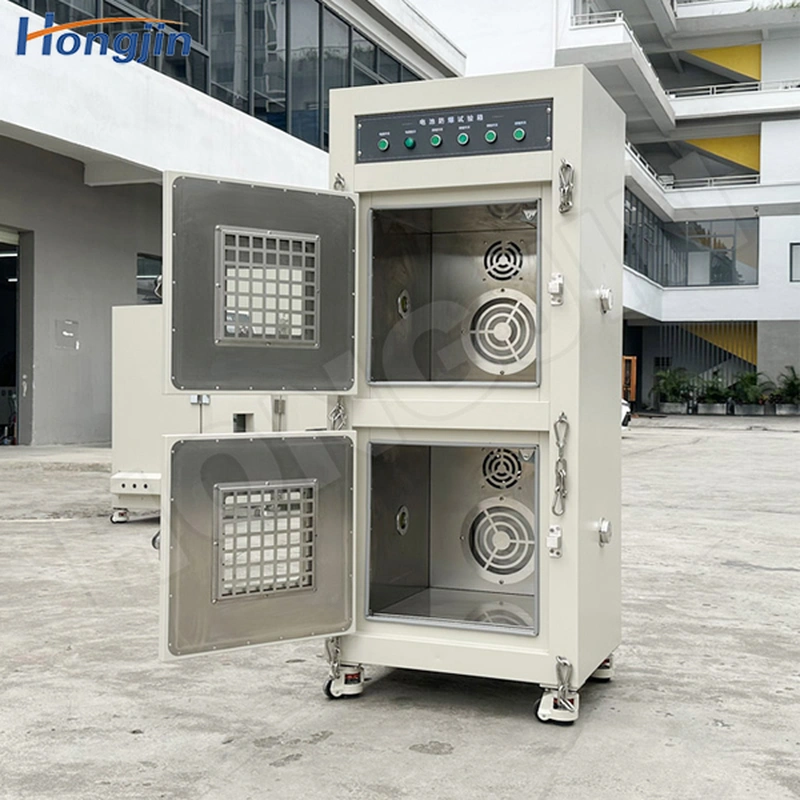

	3, single door, left open, the inner door is made of stainless steel, and add silicone force strip, the door is open with an observation window;
	4, the door is connected with the box body by a strong hinge, anti-cooling handle door lock;
	5, the test box inside with teflon tape, effective insulation and effective flame retardant, easy to clean;
	6. The right side of each box is provided with a circular wire installation port, which is convenient to test the connecting line through;
	7, there is a separate test panel to control the lighting and exhaust in each test room.
Installation requirements	1. Ambient temperature: 25±5° C;
	2, relative humidity: 45-85%RH;
	3, atmospheric pressure: 86~106KPa;
	4, no direct sunlight or other heat source direct radiation; 5, no strong vibration around;
