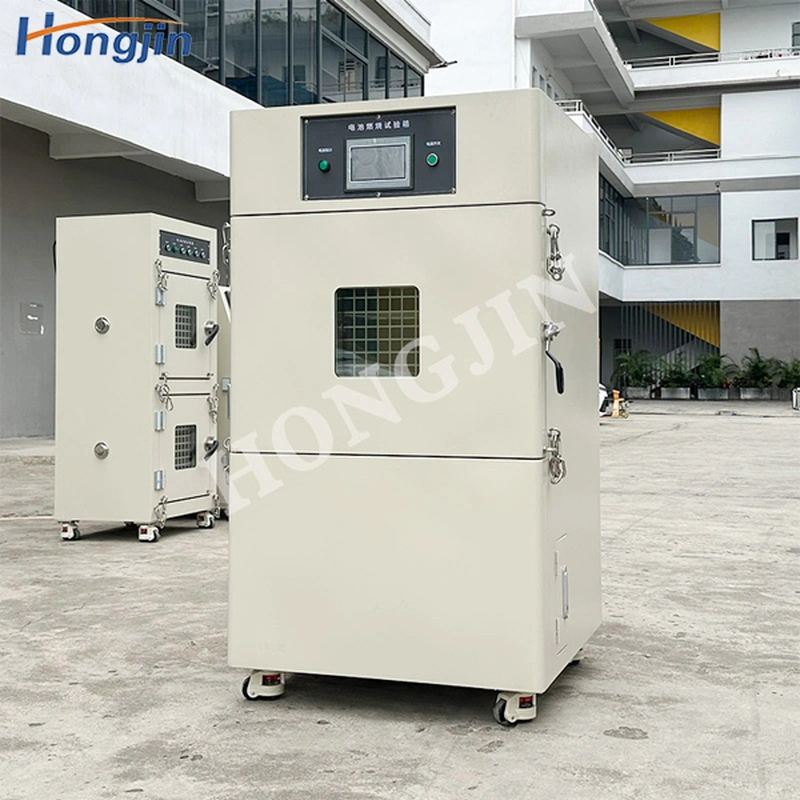

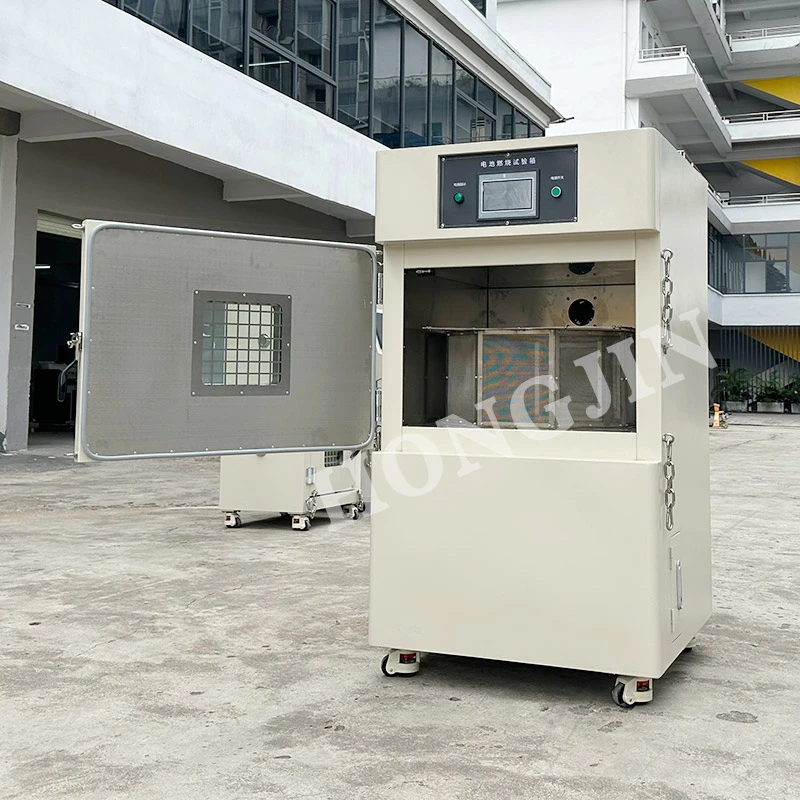

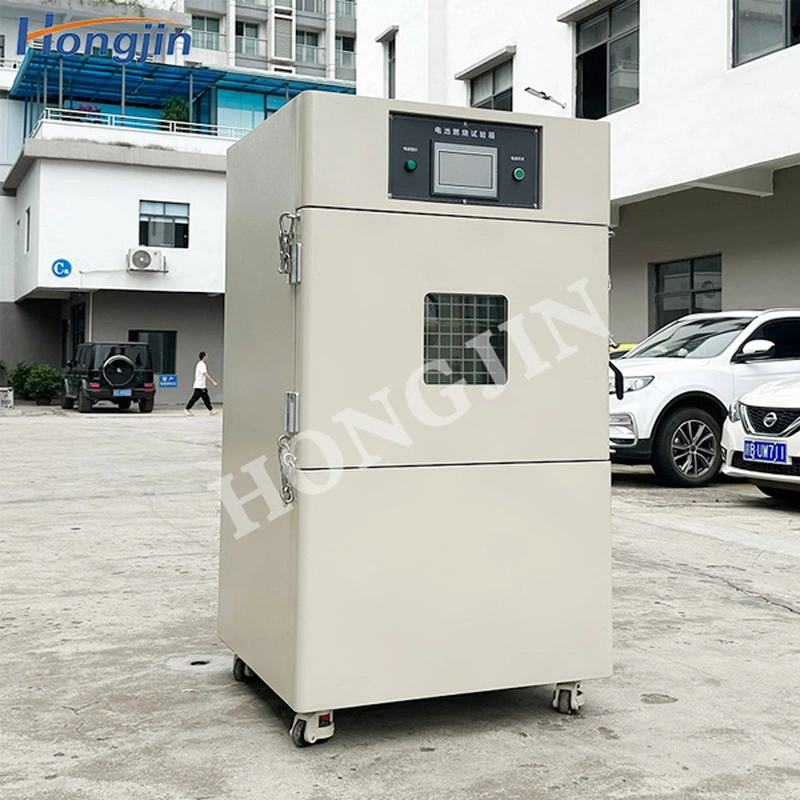

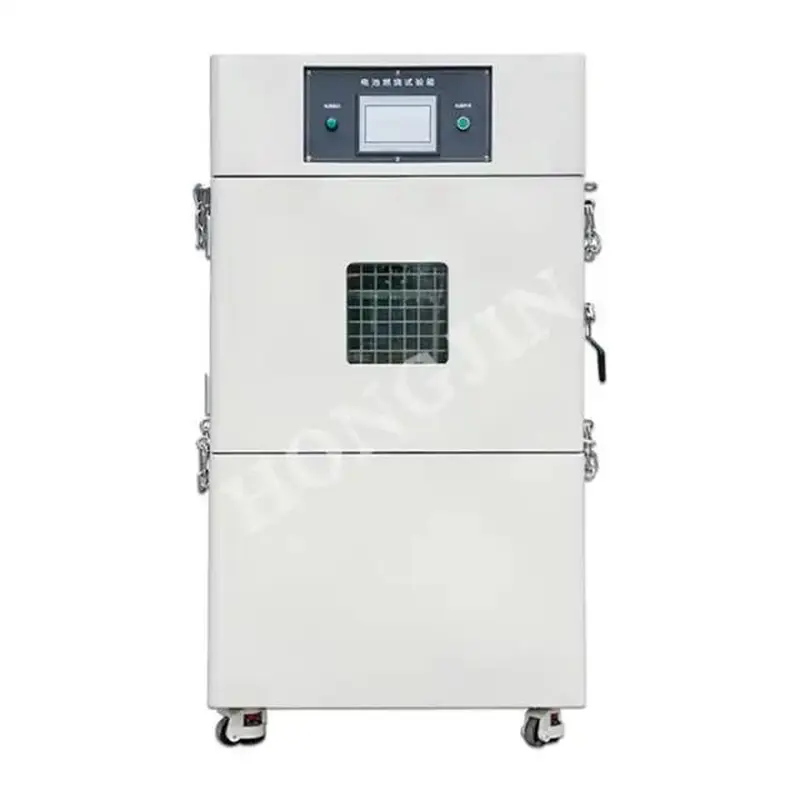

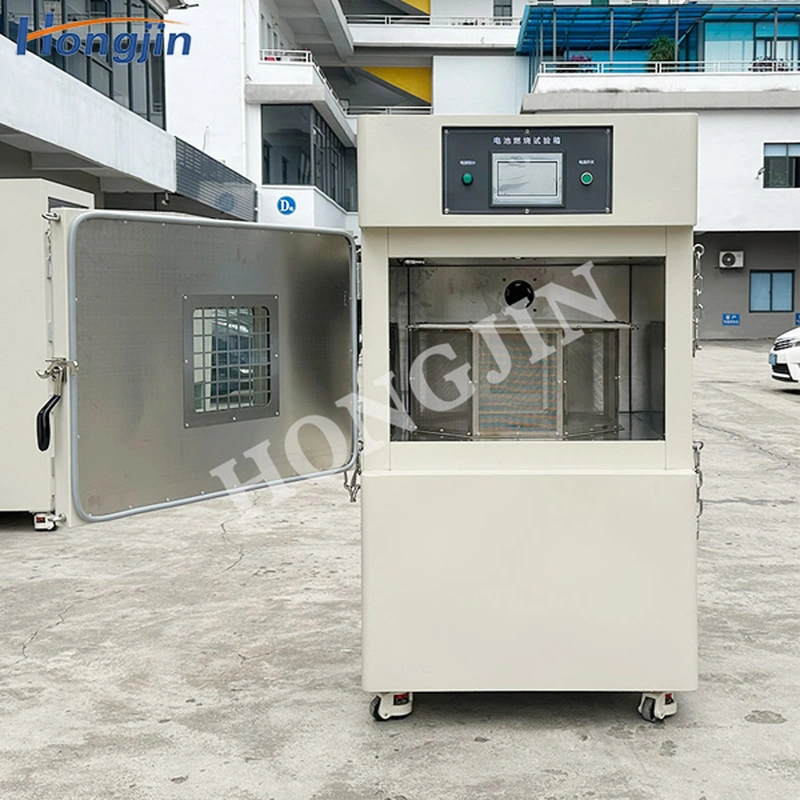

Lithium Battery Combustion Testing Machine

Lithium Battery Combustion Testing Machine

The battery burning tester is suitable for the battery fire resistance test of mobile phones, laptops and other small electronic consumer products. This machine is fixed on the screen from the top of the burner above 38.1mm, screen every 25.4mm has 20 holes, wire diameter 0.25mm; Ignite the burner and observe the combustion of the battery until the battery explodes or burns down, and time the combustion process.

описание

The battery burning tester is suitable for the battery fire resistance test of mobile phones, laptops and other small electronic consumer products. This machine is

fixed on the screen from the top of the burner above 38.1mm, screen every 25.4mm has 20 holes, wire diameter 0.25mm; Ignite the burner and observe the

combustion of the battery until the battery explodes or burns down, and time the combustion process.

Product standard:

Gr88974-2002 6.3.2.9, idtIEC60086 battery burning repair testing machine in line with SJ/T11169-1

Product parameter：

1. Control mode: button type

2. Burner: Bunsen burner, inner diameter of tube mouth is 9.5mm, length is about 100 mm

3, flame application time: 0999.9 seconds ±0.1 seconds

4 test round hole surface diameter: 102mm

5, test network: The diameter of 0.43mm(0.017inch) stainless steel wire woven into the United States inch containing 20 mesh network

6 flame on the screen height: 38mm

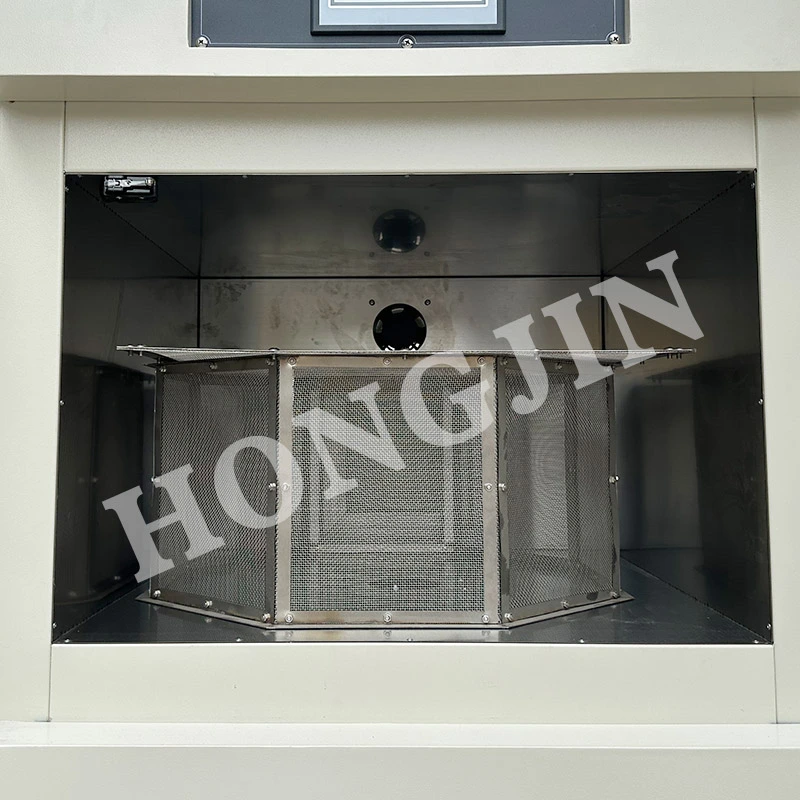

7, octagonal net cover width: each opposite to ask the distance of 24° (610mm), octagonal, at the same time for the eight sides of the movable type convenient replacement and disassembly

8. Octagonal mesh cover height: 12*(305mm)

9. Inner box size: 740x730x500mm (width x depth x height)

10. Combustion gas: methane or liquefied petroleum gas (customer's own)
