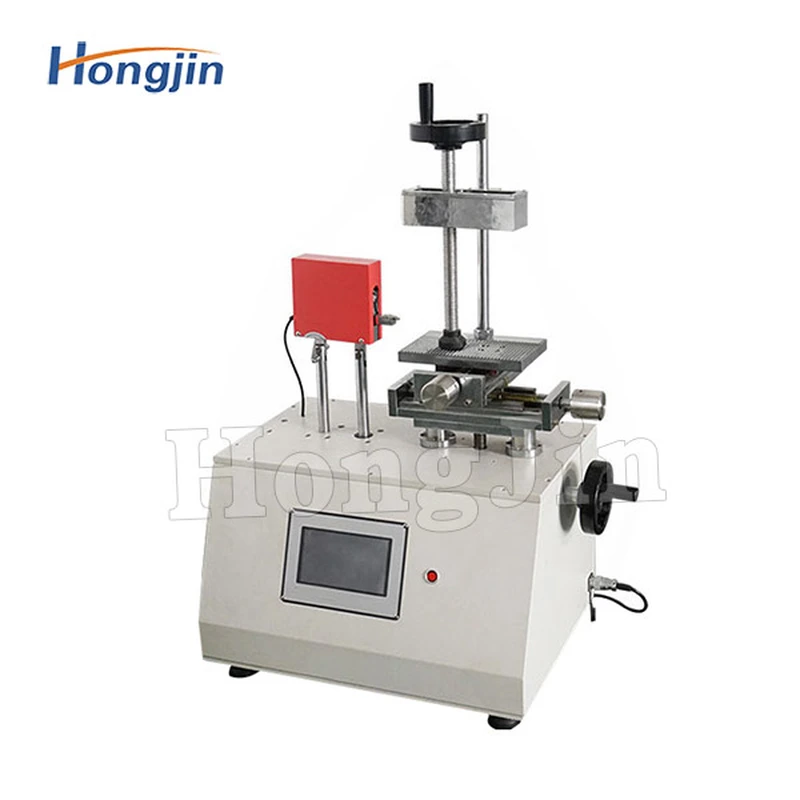

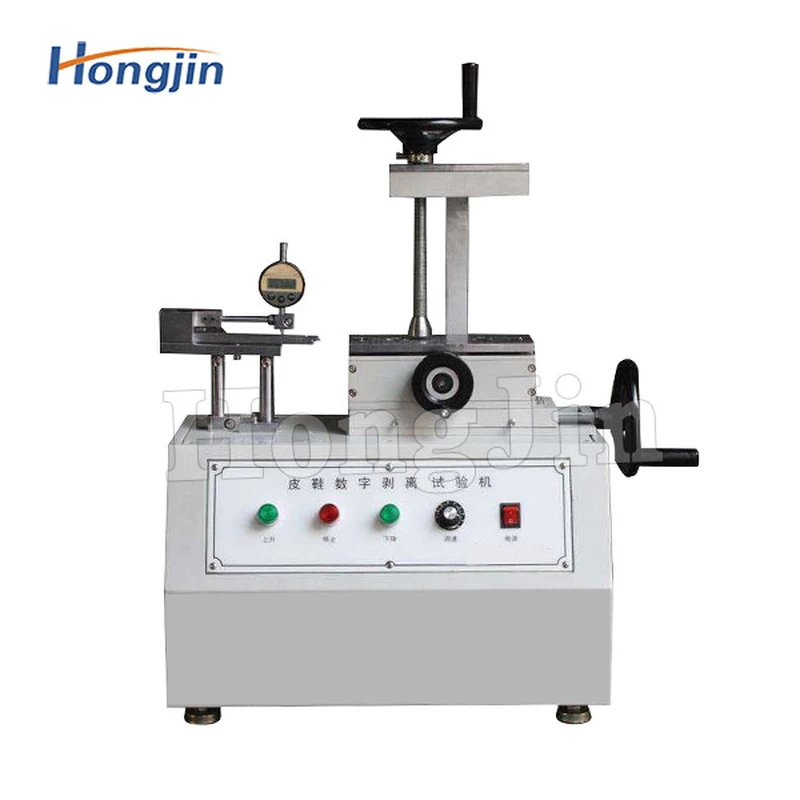

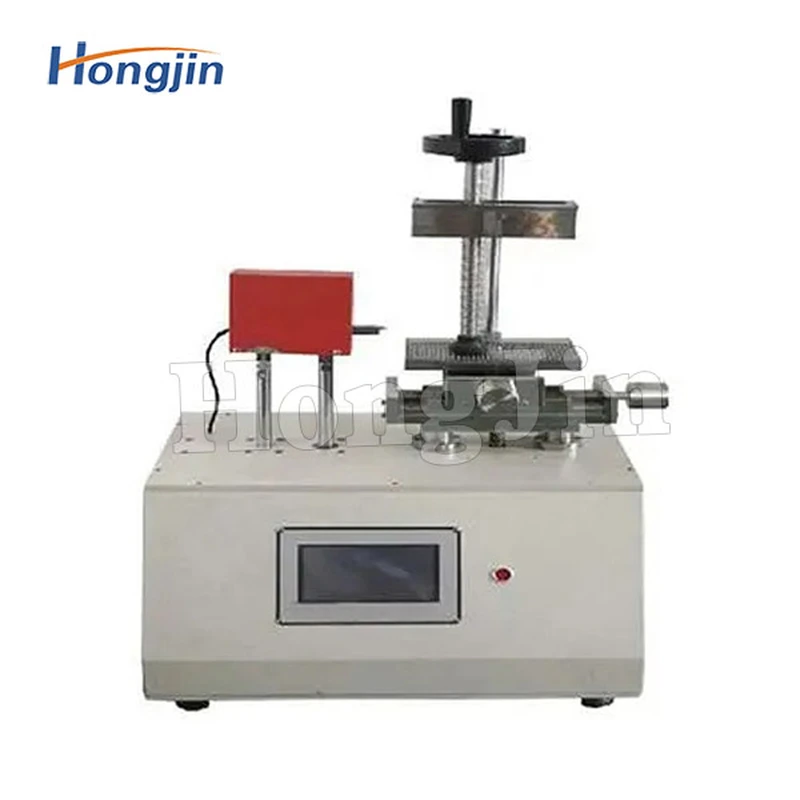

Leather shoe stripping tester

Upper peeling strength tester is suitable for testing the peeling strength between the sole and the upper of the shoe, the principle is to load the shoe on the shoe last clamp on the machine, peel the sole and the upper joint with the peeling knife, measure the force required when stripping force is the peeling force, and then calculate the peeling strength according to the peeling force and the width of the knife edge.

описание

Technical parameter

Width of knife edge:	20±0.2mm and 10±0.2mm
Knife edge descending speed:	20±2mm/min, rise and fall speed adjustable
Spacing between positioning rod and tie rod:	50~70mm adjustable
Micrometer:	0.001~10mm
Average rise and fall range:	40mm
The volume is about:	560320750mm
Approximate weight:	45kg
Power supply:	$1 AC220V, 50HZ(depending on country or designation)
