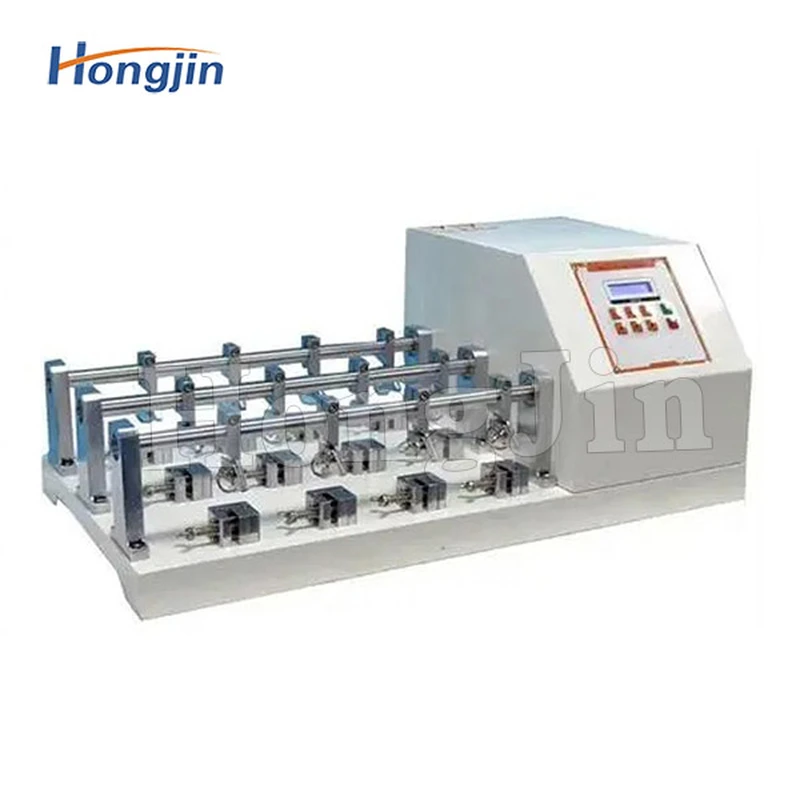

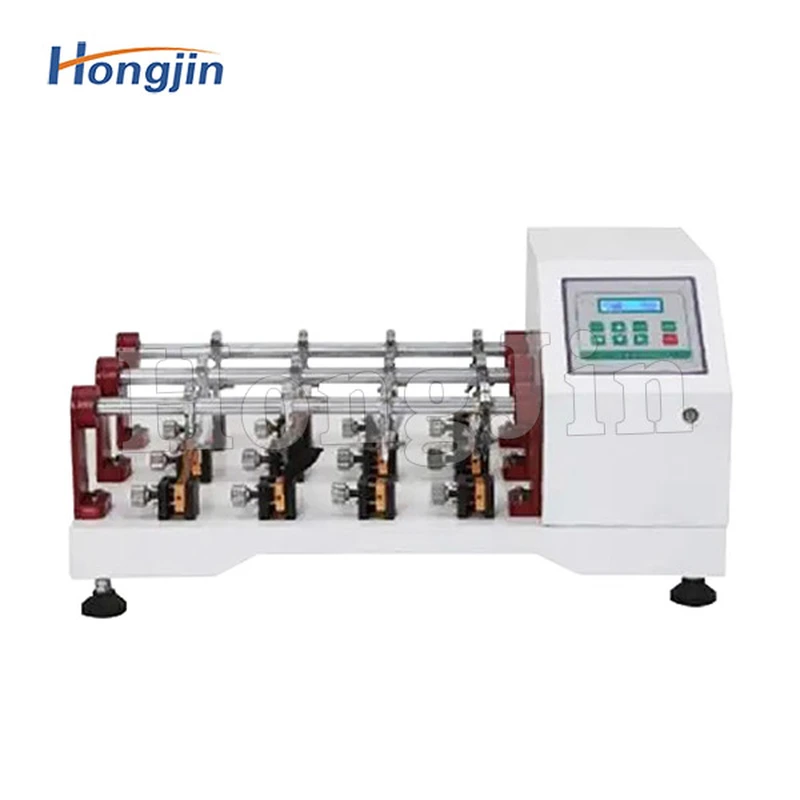

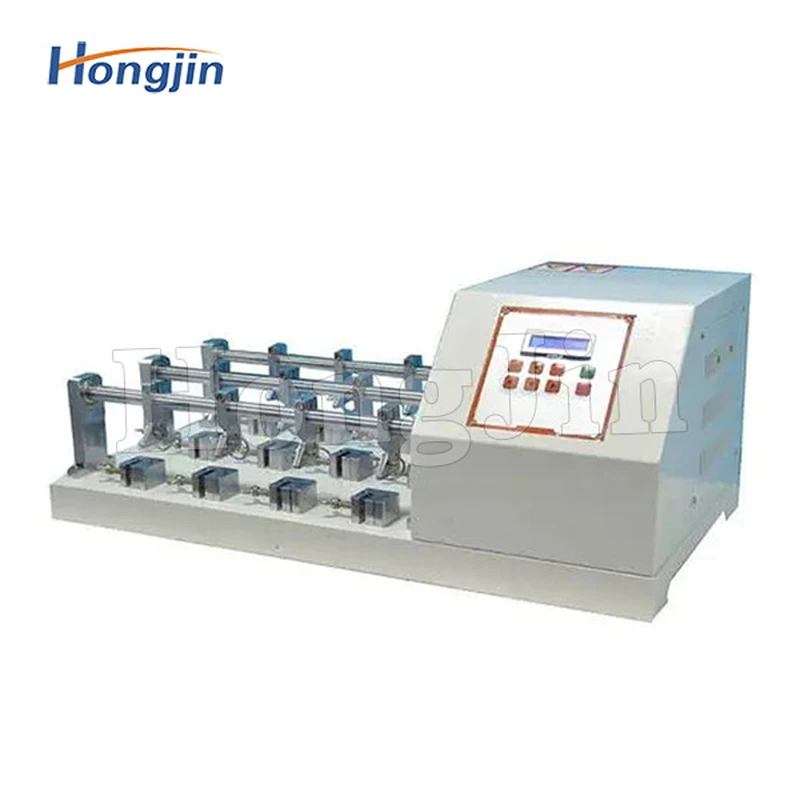

Leather flexibility testing machine

Leather flexure testing machine is mainly used to test the flexure of upper leather, lining, clothing or bag materials at normal temperature. The surface of one end of the test piece is used as the inside, and the surface of the other end is used as the outside. The bending times are recorded when the test piece is damaged. Or set the number of bending, and then take out to observe the extent of damage.

описание

Leather flexure testing machine is mainly used to test the flexure of upper leather, lining, clothing or bag materials at normal temperature. The surface of one end of the test piece is used as the inside, and the surface of the other end is used as the outside. The bending times are recorded when the test piece is damaged. Or set the number of bending, and then take out to observe the extent of damage.


Technical parameter


Fixture selection:12 groups
Test film:(70±1) mm× (45±1)mm
Bending Angle:(22.5±0.5)°
Bending speed:100±5cpm /min
Dry state test times:500, 1,000, 5,000, 10,000... 250,000 (optional)
Counter:LCD,0~999,999 automatic stop
Machine size:(LXWXH) 500×580×300mm
Weight:69kg
Power supply:1, AC220V, 20A
