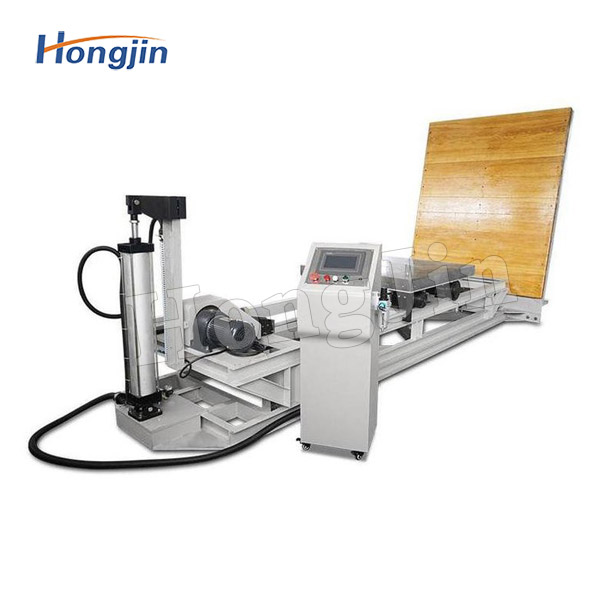

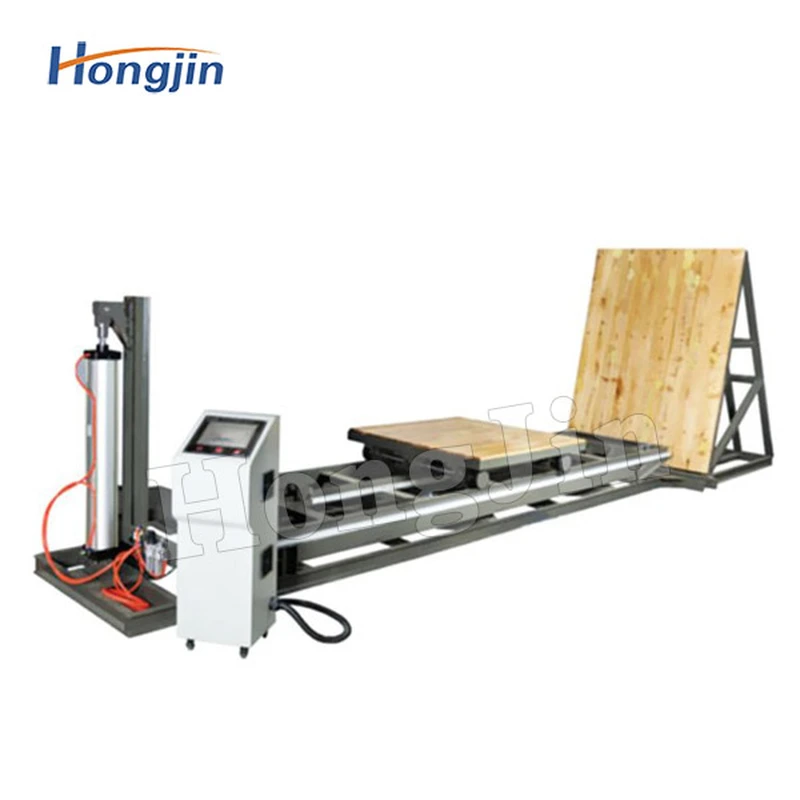

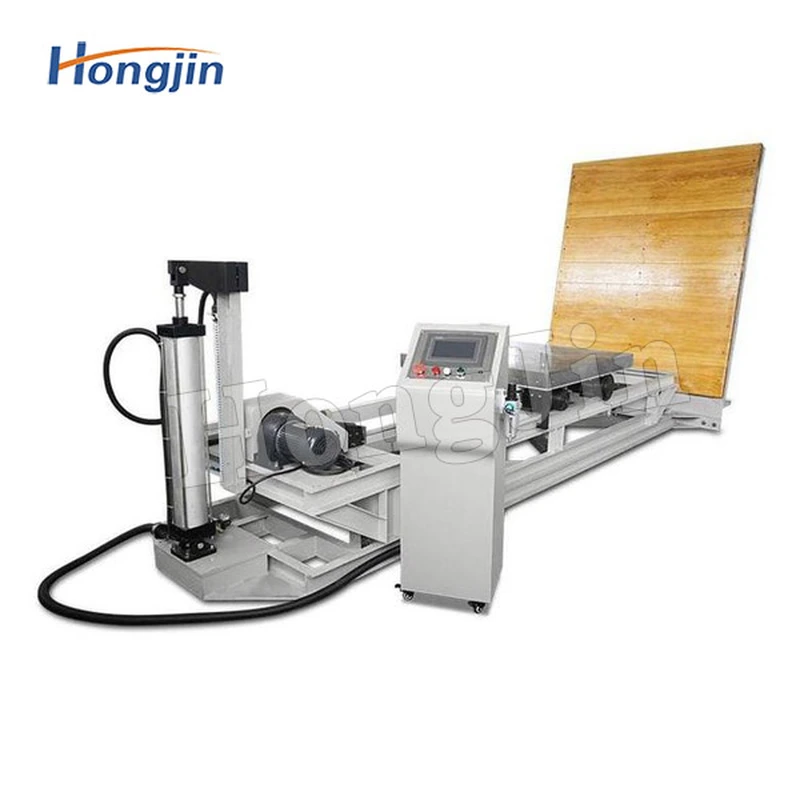

Incline impact test bench

The Inclined Plane Impact Test Bench Simulates The Ability Of Product Packaging To Resist Impact Damage In Actual Environments, Such As Handling, Stacking Of Shelves, Sliding Of Motors, Loading And Unloading Of Locomotives, Transportation Of Products, Etc. This Machine Can Also Be Used As A Scientific Research Institution, Commonly Used Test Equipment For Inclined Plane Impact In Colleges And Universities, Packaging Technology Testing Centers, Packaging Material Manufacturers, And Foreign Trade, Transportation And Other Departments.

описание

Features:

1. Flexible Positioning Of The Electric Pulley Makes It Easy To Fix The Position And Achieve The Required Speed Change Value;

2. The Height Of The Pulley Is Relatively Low, Which Is Convenient For Installing The Test Product; The Reinforced Impact-Resistant Plate Ensures A Solid Structure

3. The Trolley Table Can Be Adjusted To Be Horizontal, Which Is Convenient For Users To Install Test Pieces; The Angle Adjustment Is Driven By A Cylinder, Which Is Flexible And Convenient. 4. It Can Be Operated By Remote Control To Fully Ensure The Safety Of Test Personnel; 5. During Installation, Customers Only Need To Fix The Machine On On The Ground, There Are No Other Complicated Operations Or Installations, And The Test Is Convenient.

Product parameter table

Impact panel size (mm)	1600x2000, 2100x2400(customizable)
Maximum glide length (mm)	1600,2000 (to be agreed)
Impact velocity range (m/s)	1.305~2608, 1305~2334(Customizable)
Block table size (mm)	1000x1000, 1800x1800(customizable)
Working environment	Temperature 0-40℃, humidity < 80%(no condensation)
Control system	microprocessor

Incline impact test bench

описание

похожий продукт

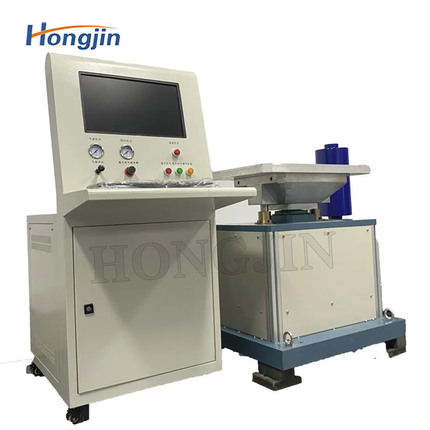

Pneumatic impact collision table
