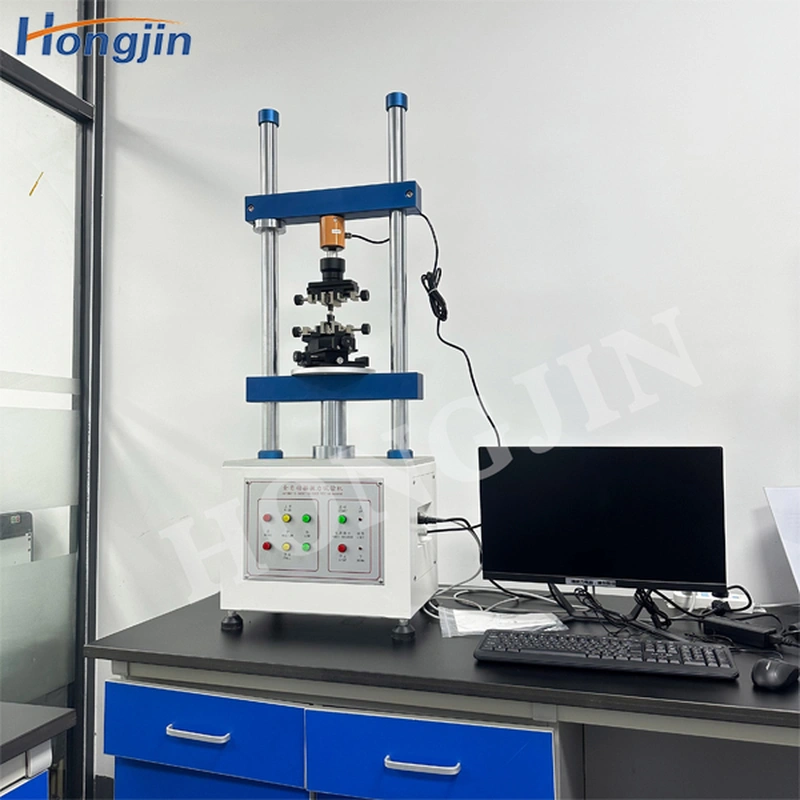

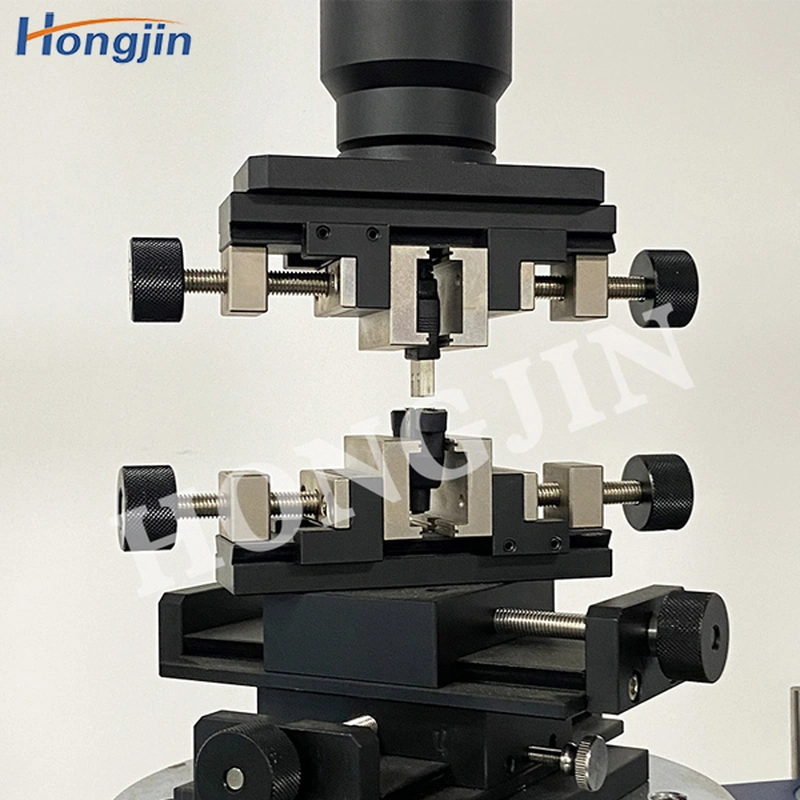

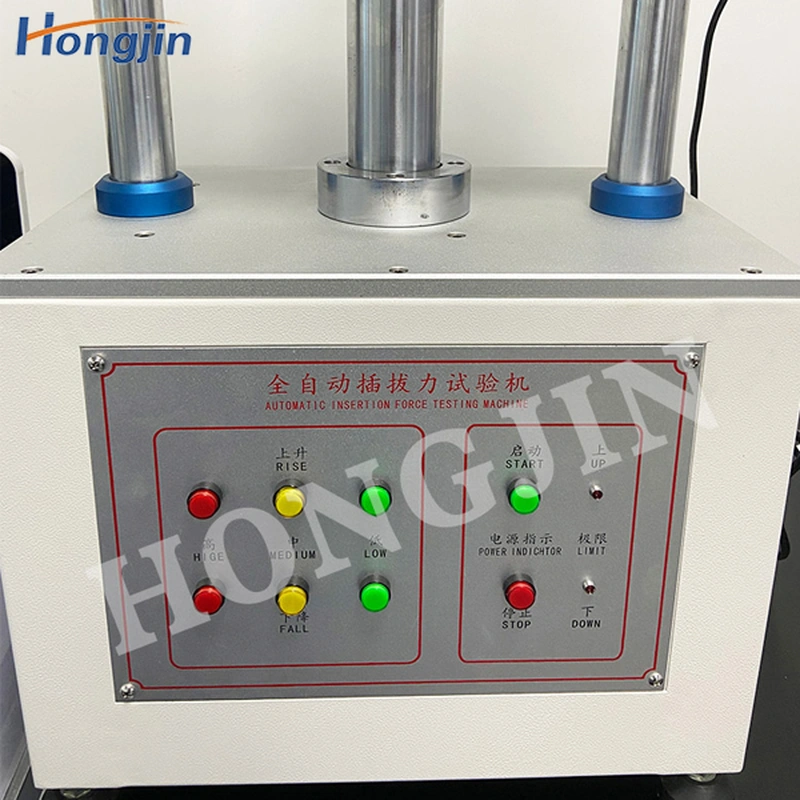

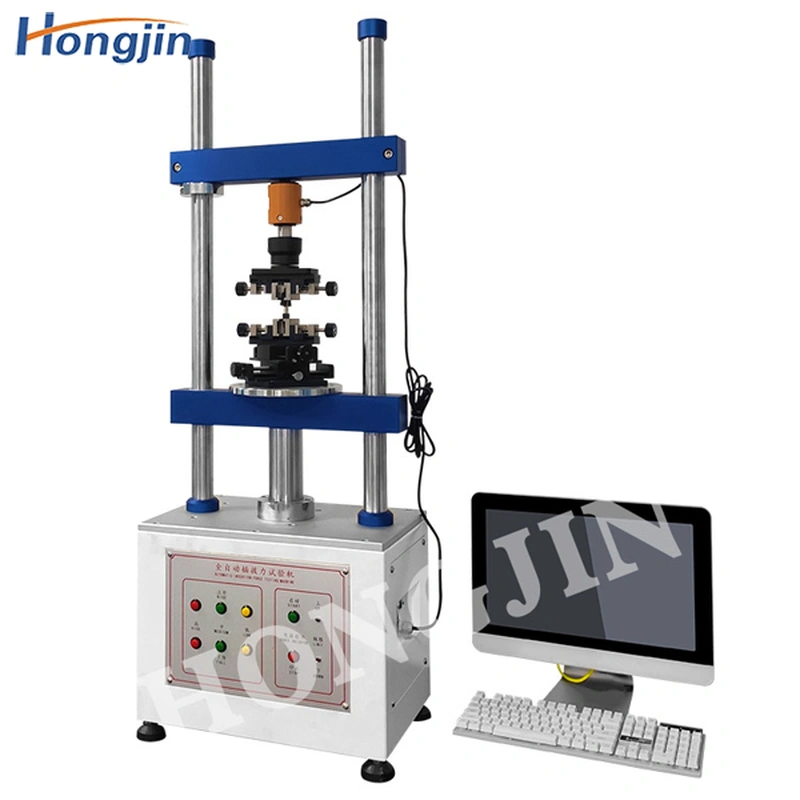

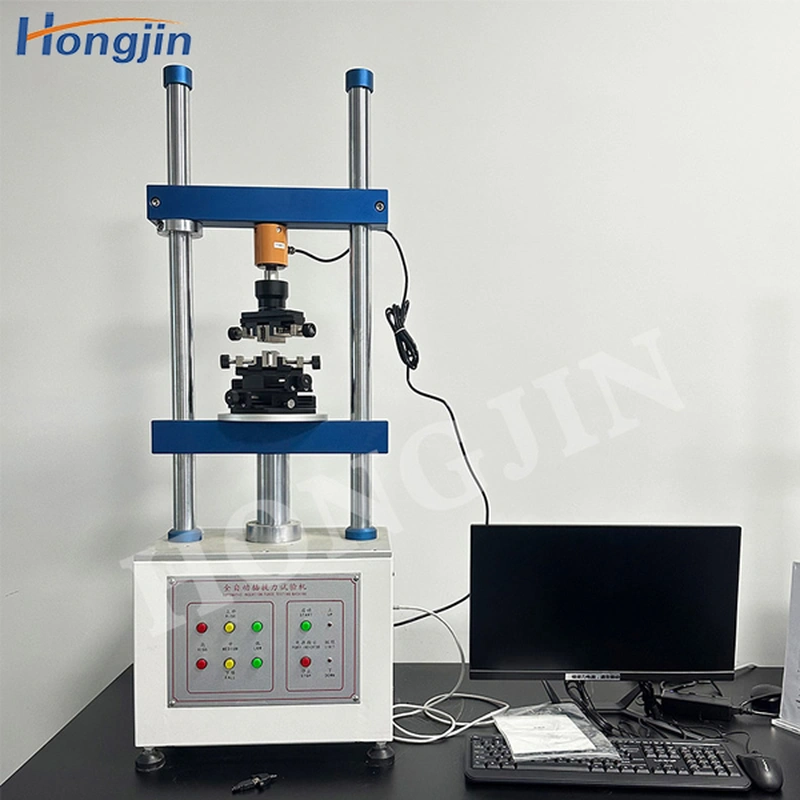

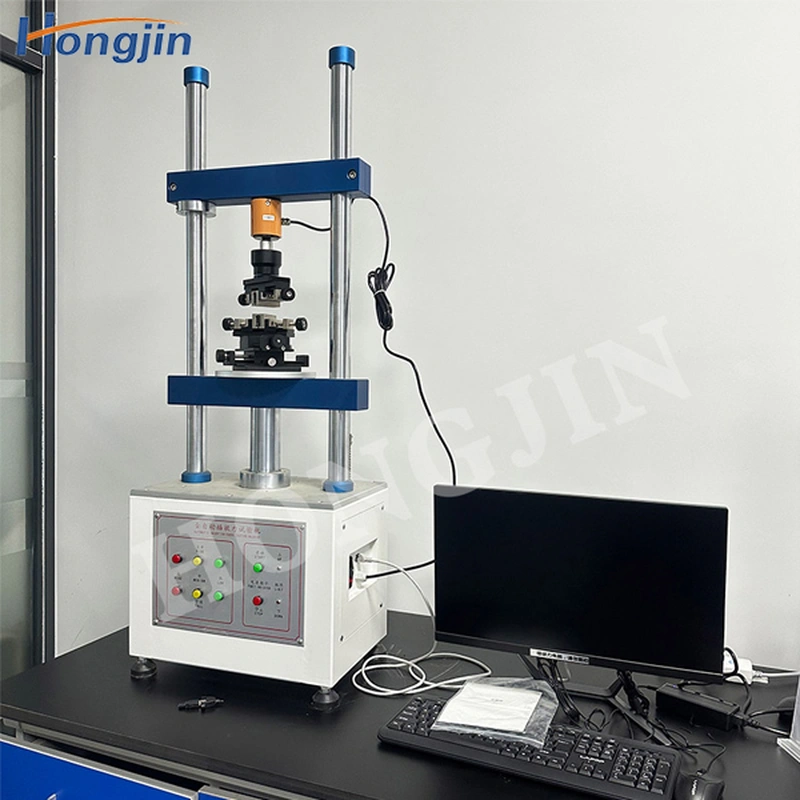

Automatic inserting and pulling force testing machine Suitable for all kinds of connectors insertion force and pulling force test, provide all kinds of connectors special fixture and automatic core seeking device, will get completely accurate insertion force results.

описание

Product features:

Automatic inserting and pulling force testing machine using Windows Chinese Windows program setting, easy to operate

automatic storage of test data (load - program curve, load decay life curve, test results), and all test conditions can be stored.


Product parameter:


Determine the maximum load range
50Kg
20Kg
5Kg
2Kg
Control mode
Full computer control (Chinese and English can be converted)
Test speed
0-200mm/min
Maximum measured height
150mm
Minimum decomposition capacity
0.001Kg or 1g
Minimum fine-tuning distance
The 0.01 mm
X-axis movement range
0-75mm
Y-axis movement range
0-75mm
Transmission mechanism
Japan THK ball screw drive
volume
360× 260×940mm
Power supply
AC220V
