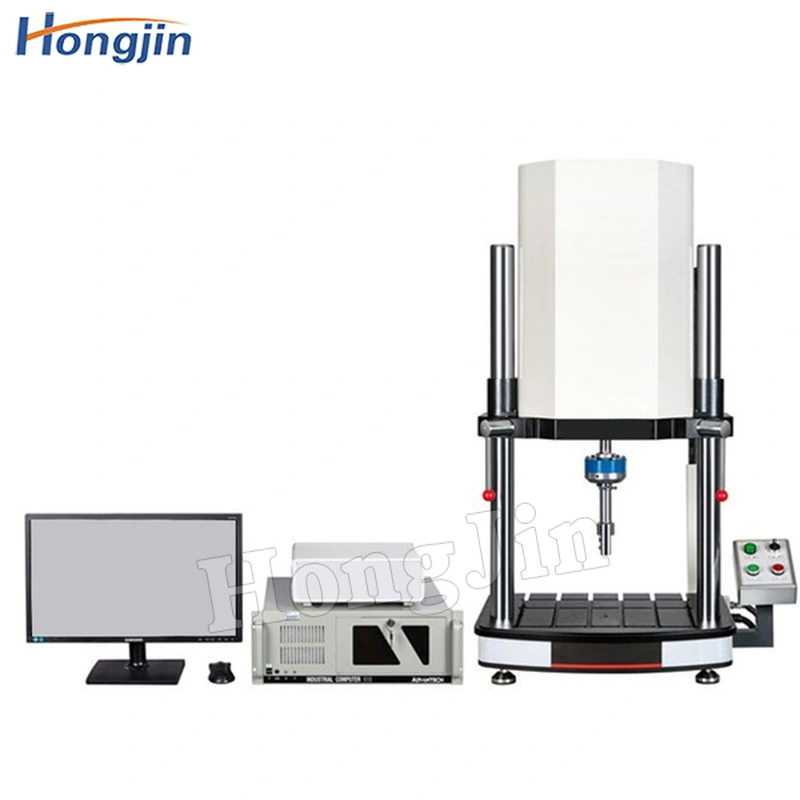

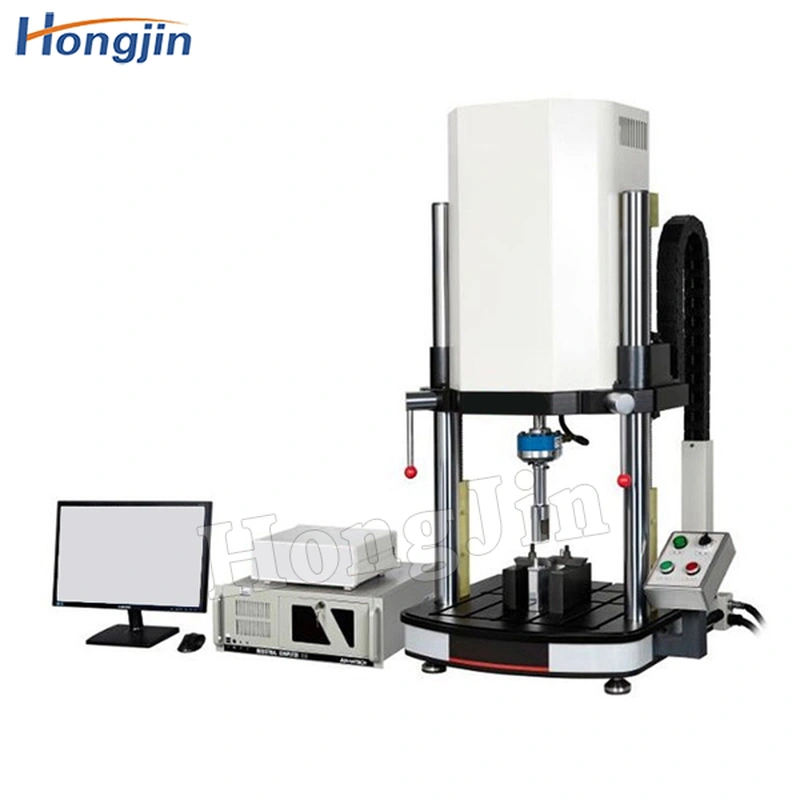

Electronic Dynamic Testing Machine

Performance characteristics

1, the use of electronic servo and DDR torque motor drive technology, with high efficiency, long life, low noise, maintenance-free advantages;

2, the testing machine adopts the "horizontal landing structure" good dynamic stability, the test bench is convenient, random, safe and reliable;

3. Parameters required by different tests -- torque, frequency, Angle, etc., can be set and displayed through the computer screen, and the process of the test can

also be called and queried at any time;

4. User operation interface: The test software can be operated under Windows system, and the microcomputer system can complete the test setting, working state control,

data acquisition, calculation and processing. Simple and reliable human-computer interaction interface and data processing interface, complete different experimental

requirements selected by users, display and print test results;

5. Open data structure: both result parameters and process data are allowed to be called randomly by users, which is very convenient for scientific research and teaching;

6, a variety of protective measures: sample damage, tooling fracture and equipment failure, automatic stop test and alarm, in the process of automatic control test,

testing machine with overload, over Angle, over temperature, electronic limit protection, over current, over voltage and other power links of various electrical protection,

software overload, mechanical forced safety limit protection.

Product parameter
