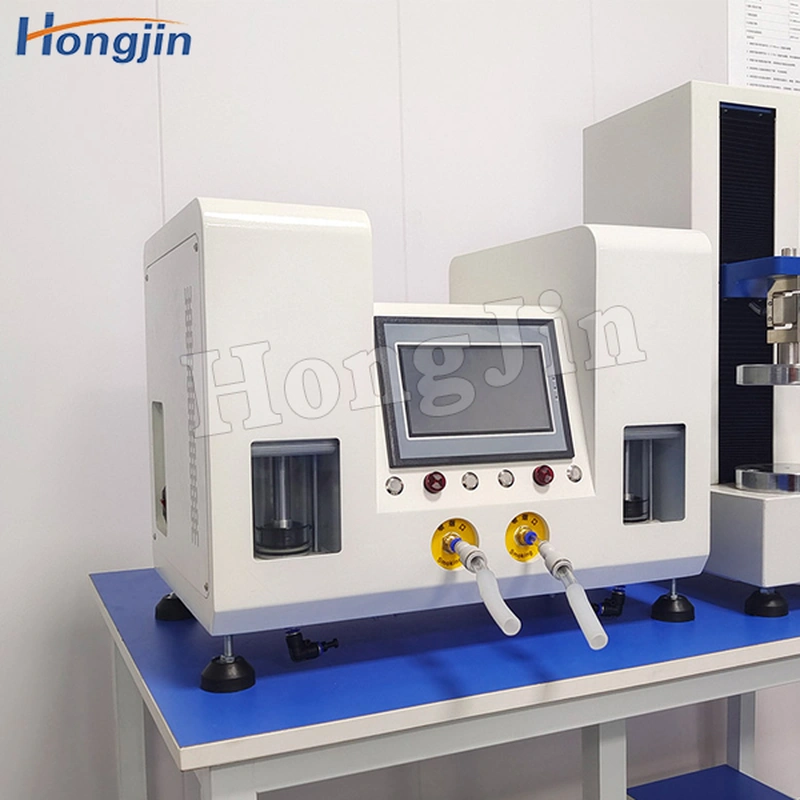

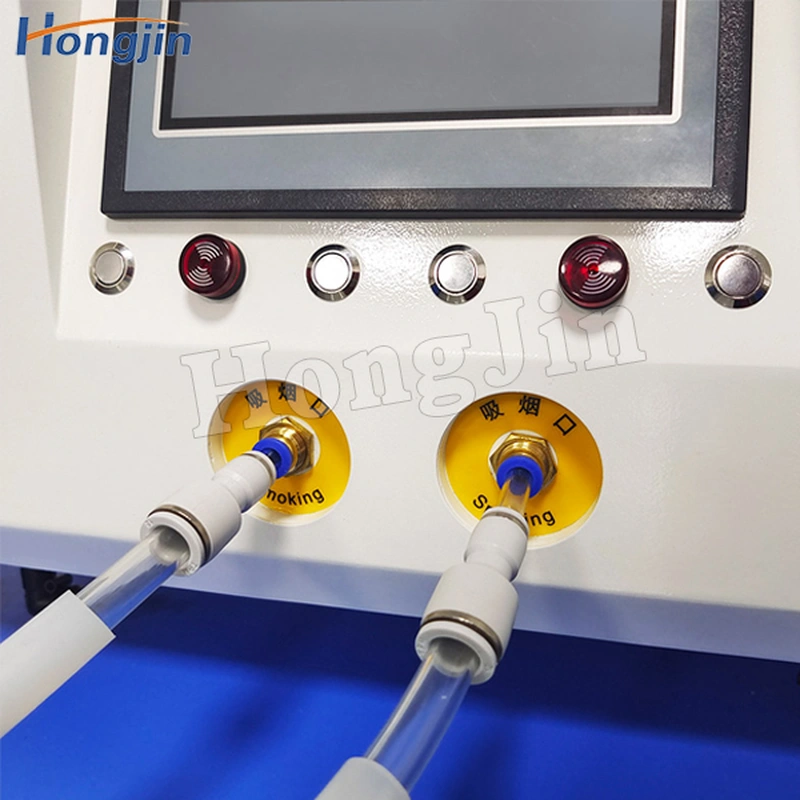

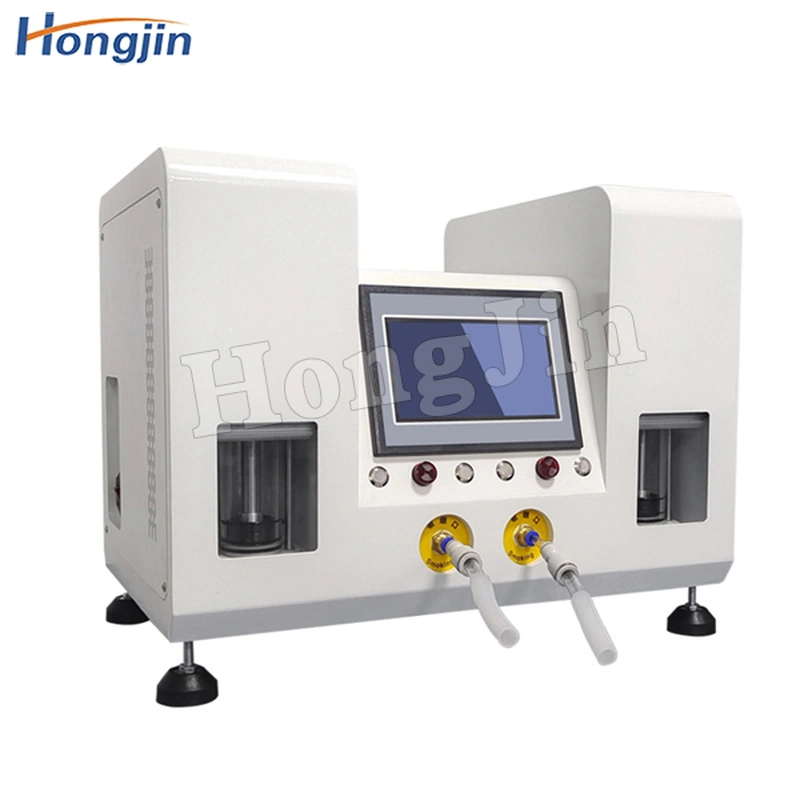

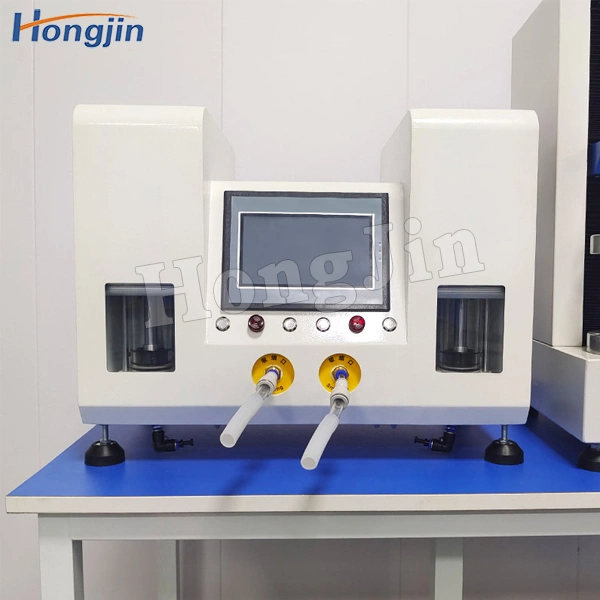

Electronic Cigarette Inhalation Resistance Testing Machine

Electronic Cigarette Inhalation Resistance Testing Machine

Vaping resistance test is mainly used to measure the vaping resistance performance of vaping dry, which is suitable for quality control and inspection of vaping production. When inhaling air with a fixed flow rate of 175ML/S is simulated on the e-cigarette, a certain vacuum pressure will be generated at the suction end of the e-cigarette. This pressure is the suction resistance, referred to as the suction resistance. By measuring this pressure, the suction resistance can be measured.

описание

Product introduction:

Vaping resistance test is mainly used to measure the vaping resistance performance of vaping dry, which is suitable for quality control and inspection of

vaping production. When inhaling air with a fixed flow rate of 175ML/S is simulated on the e-cigarette, a certain vacuum pressure will be generated at the

suction end of the e-cigarette. This pressure is the suction resistance, referred to as the suction resistance. By measuring this pressure, the suction resistance

can be measured.

Product parameter：

unit	Pa (Pa), twg (mm water column)
Gas flow rate	5-33ml/s can be set (standard requirement is 175ml/s)
resolution	0.1
error	＜1%
Test time	Average 5 seconds
Test sample straight warp	7.7mm(Test clamps of other calibers can be customized)
Insertion depth	9mm
Protective device	Leakage, short circuit, overload, pressure over capacity, air flow over capacity, etc
Other functions	Upper and lower limits can be set, automatically judge whether the sample is qualified
volume	580×380x420mm(WxDxH)
weight	28 kg
Power supply	AC220V, 50Hz, about 330w
