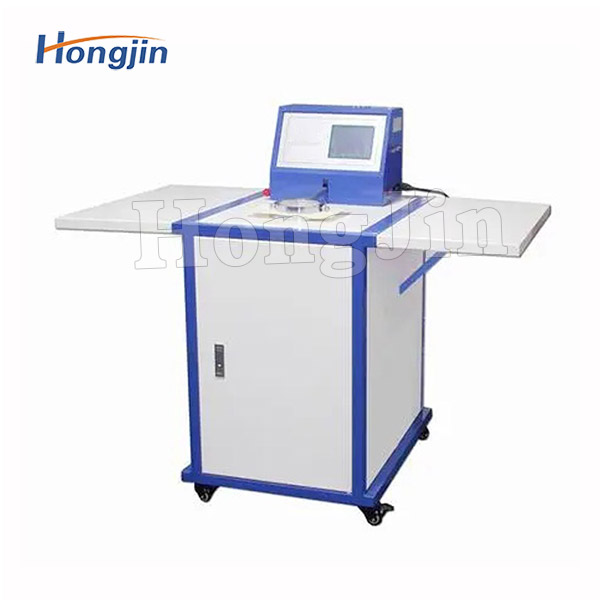

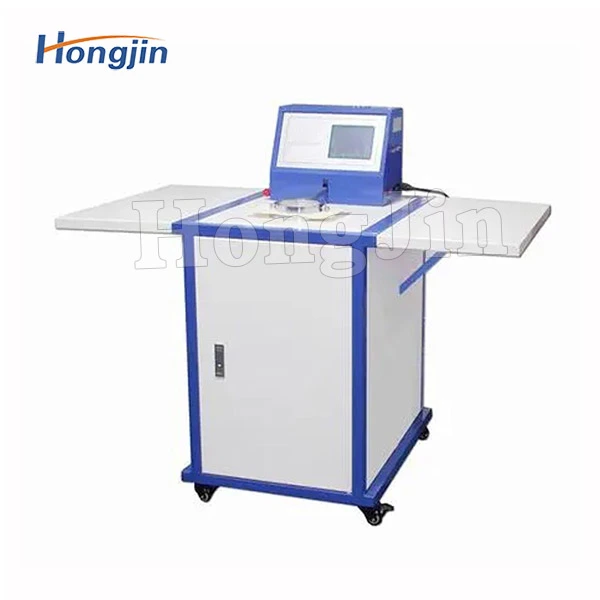

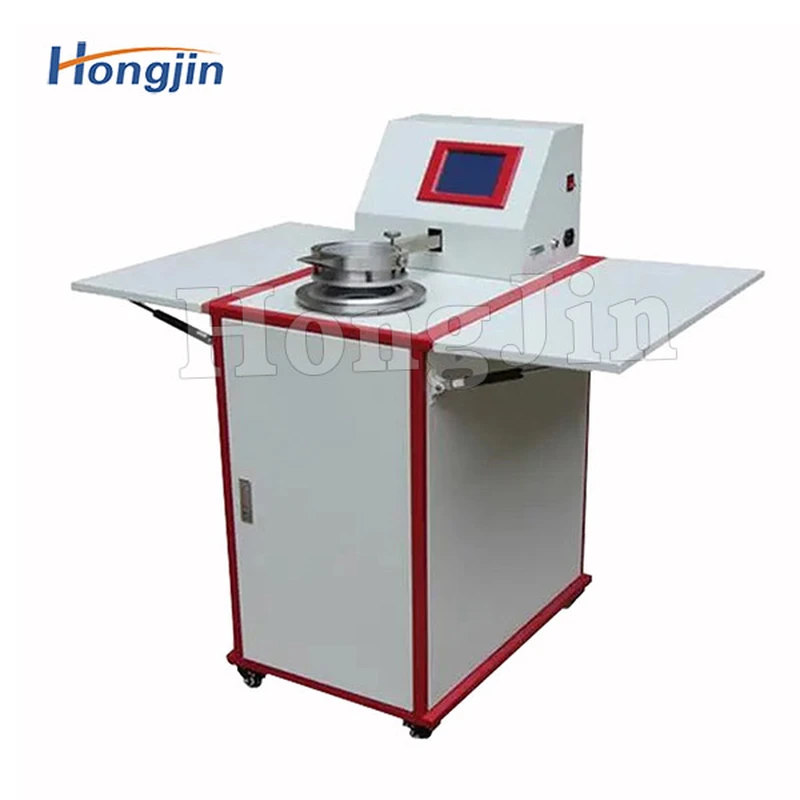

Digital fabric breathability meter

Digital fabric air permeability meter, suitable for detecting the air permeability of various textiles, industrial fabrics and non-woven products, filters, industrial filter cloth (paper), microporous filter membrane, papermaking blankets, nonwovens, coated fabrics and other breathable leather, plastic and other chemical products.

описание

Technical parameter

Sample pressure difference range:	1~4000Pa
Measurable air permeability:	0.1~12000mm/s
Measurement error:	≤±2%
Fabric thickness can be measured:	≤15mm
Test area:	5cm2、20cm2、50cm2、100cm2、Φ50mm (≈19.6cm2)、Ф70mm (≈38.5cm2)
Nozzle parameters:	Nama kod 0,1,2,3,4,5,6,7,8,9,10
Diameter :	Ф(mm) 0.8,1.2,2,3,4,6,8,10,12,16,20
power supply:	AC220V50Hz,2KW
Appearance:	1070×670×1080mm
Weight:	75kg
