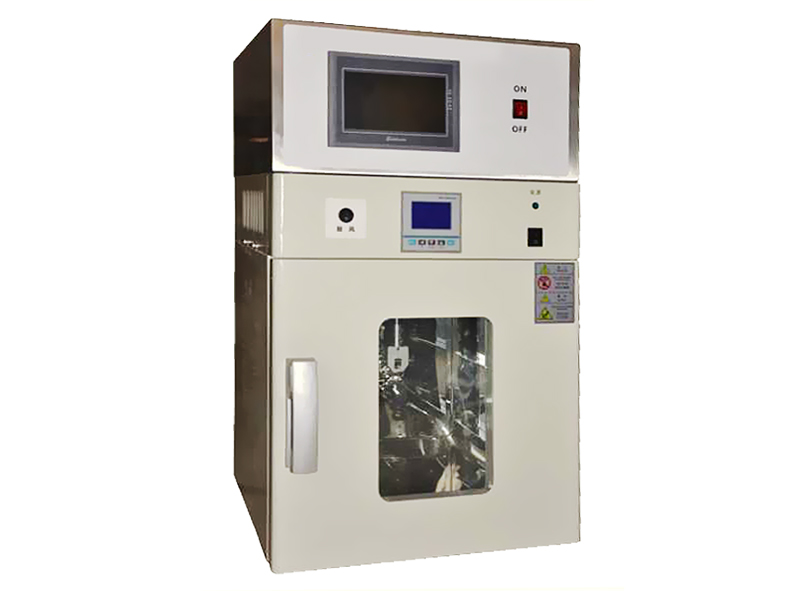

Features of Temperature Controlled Pulling Dip Coating Machine
1. Precise vertical lifting device. The latest upgrade is the vertical lifting device components imported from Switzerland. It is made of special functional materials and has the characteristics of high precision, no gap in transmission, smooth operation, corrosion resistance, lifetime maintenance-free, and long service life.
2. Driven by servo motor. With the vertical lifting device and program control system imported from Switzerland, it ensures the accuracy and stability of operation, and has achieved the effect of completely eliminating the lifting vibration and ensuring the uniformity of the coating film.
3. Multi-parameter automatic program control. There are six parameter settings: descending speed, dipping time, pulling speed, coating size, coating times, coating interval time, all parameters are continuously adjustable and precisely controlled. After the coating program is set, the entire coating process from descending to dipping to pull-up coating runs fully automatically.
4. The coating system adopts a 7-inch LCD touch screen to make the control more convenient; when running, various parameters are displayed in real time, and the coating process can be understood more intuitively;
5. The entire coating process is carried out in a constant temperature temperature field. The constant temperature field temperature control system adopts LCD liquid crystal display, which can precisely control the temperature and has good temperature uniformity. Multi-stage program temperature control can be set.
6. The upper and lower ends are equipped with limit sensors. When lifting or lowering, it will automatically stop at the limit to avoid overrunning of lifting or lowering.
7. Both high and low speeds run smoothly, and the operation is continuous and smooth. There is no vibration of the liquid surface during coating, which makes the film more uniform;
8. The specially designed flat-mouth fixture can hold the sample evenly on both sides, so that the sample will not be damaged;
Parameters of Temperature Controlled Pulling Dip Coating Machine
|Pulling speed range||1～6000 μm/s, minimum resolution 1 μm/s|
|Applicable substrate size||MIN 5×5 mm, MAX 100×100 mm, thickness MAX 10mm|
|Immersion time||1～3600 s, minimum resolution 1s|
|Cycle coating times||1 to 1000 times, at least 1 time|
|Time between each coating||1～3600 s, minimum resolution 1s|
|Constant temperature||RT+10～200℃, temperature resolution 0.1℃|
|Dimensions in constant temperature field||340×320×320 mm (W×D×H)|
