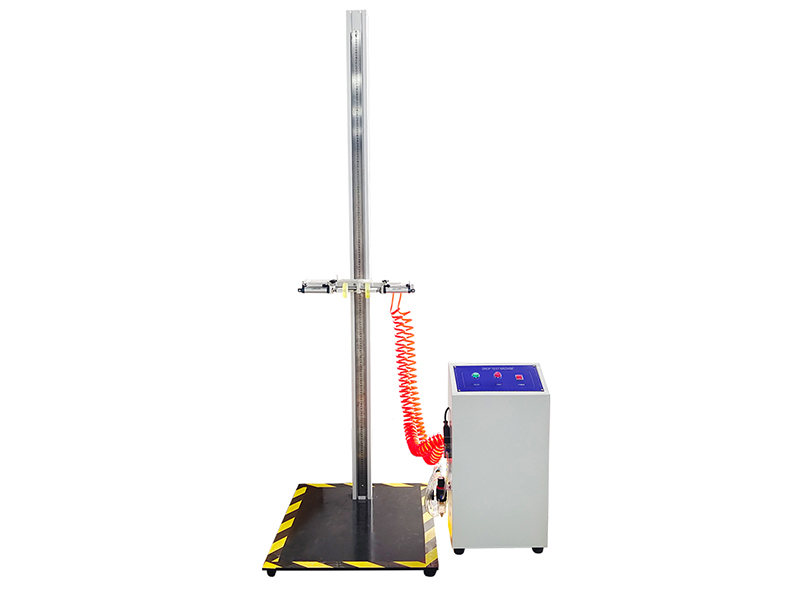

This machine is designed to evaluate the impact on the performance of the product after the customer may accidentally drop the product during experimental use. It is suitable for the original posture and accelerated drop test of small consumer electronic products such as mobile phones, PDAs, telephone electronic dictionaries, CDs, MP3s, etc.
Features of Small Drop Tester

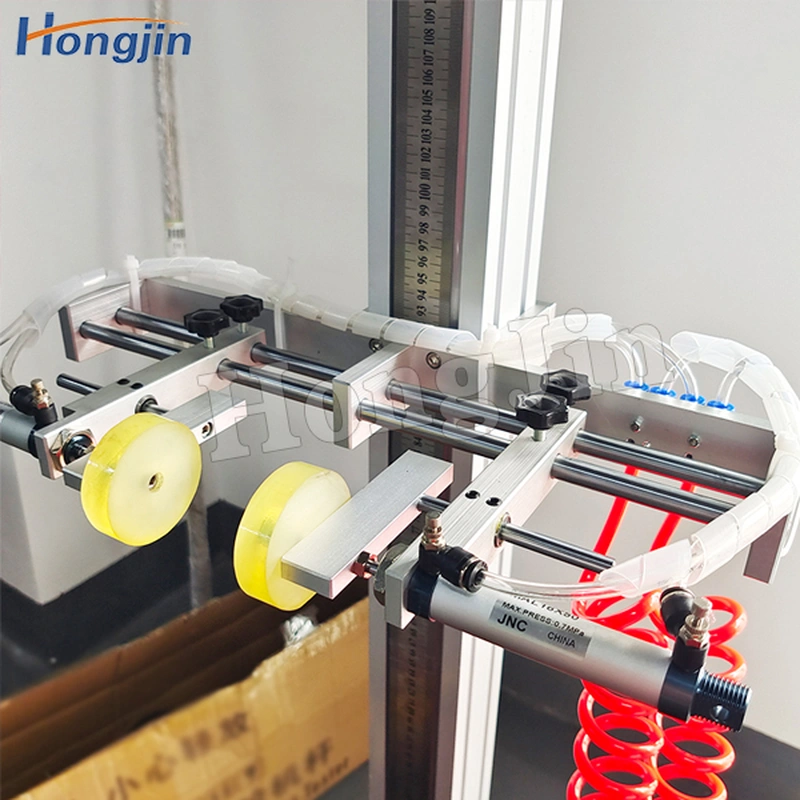

The drop tester can perform free drop tests on the front, corners and edges of packages. It is equipped with a digital height display and height tracking using a decoder to accurately give the product drop height and preset drop height. The error does not exceed 2% or 10MM. This machine adopts single-arm double-column structure, with electric reset, electric control lowering, electric lifting device, which is easy to use; the unique buffer device greatly improves the service life, stability and safety of the machine. Single arm setup for easy product placement.
Parameters of Small Drop Tester
Drop height | 300-1500mm adjustable |
Drop height deviation | ± 10 mm |
Testing method | Faces and corners drop in all directions |
Fall height error | 1% |
Click panel parallel error | ≤ 1 degree |
The maximum weight of the test piece is | 0-80Kg |
