This machine is suitable for smart lock (fingerprint) (swipe card) to open and close the door (each opening method can be replaced), and it has reached the test of the smart lock repeatedly. Overview The lock body durability tester is a special testing instrument used to test the life of the lock. The testing department uses it to sample the quality of the products of the enterprise that produces the lock. The test result is an important basis for judging whether the lock is qualified. The lock is installed during the test. on the tester.

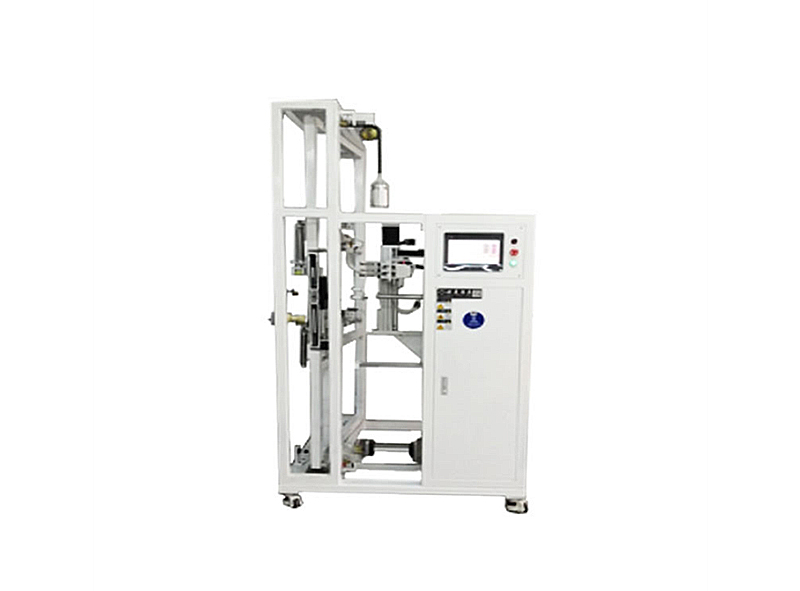

Parameters of Single-station intelligent lock life testing machine
| Overall dimensions | Length (1100mm - 1400mm), Width (1100mm - 1400mm), Height (2100mm - 2500mm) |
| Simulate door frame size | Length (2000mm - 2400mm), Width (1000mm - 1300mm), Note: 2100mm * 1100mm (European standard) |
| Analog door weight | 100KG |
| Working environment temperature and humidity | Temperature between -10℃～40℃, humidity≤85%RH |
| Equipment working voltage | 220VAC |
| Rated power consumption of the whole equipment | ≤800W |
| Air supply input standard air pressure | 0.25-0.6MPa |
| Test station | Single station |
| Simulate door opening direction | Open right |
| Test steps support large number of programming steps | ≥15 steps |
