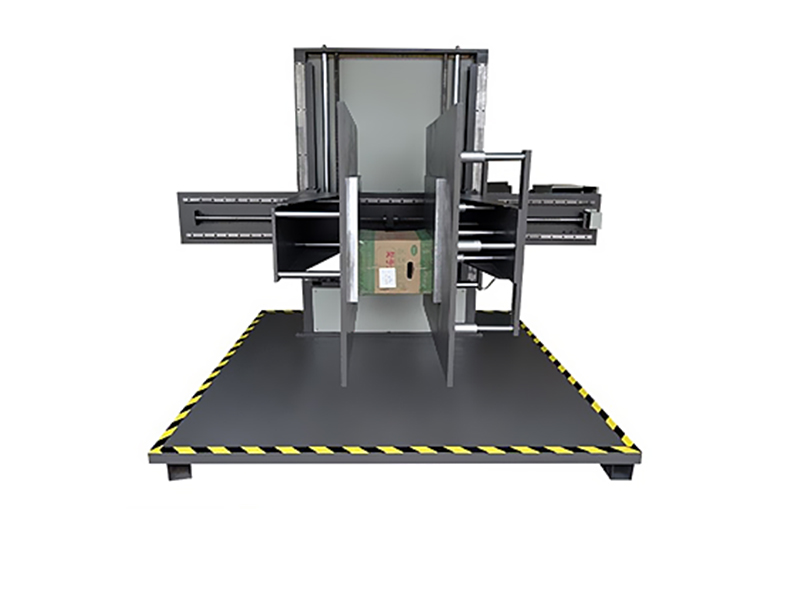

The packaging clamping force testing machine is suitable for the packaging of kitchen utensils, furniture, home appliances, toys and other finished products, especially for the resistance clamping strength test of the packaging required by Sears SEARS in the United States. It is used to simulate the influence of the clamping force of the two plywoods on the package and the goods when the clamping truck loads and unloads the package, and evaluates the clamping resistance strength of the package.
Parameters of Simulated Clamping Tester
| Clamping force | 10-3000kg optional |
| Splint size | 1200×1200mm |
| Clamping space | Maximum W1200×D1200×H1200mm |
| Clamping space | Minimum W400×D1200×H1200mm |
| Clamping speed | 5～50mm/min adjustable |
| Lifting space | 100～600mm adjustable, also according to user requirements |
| Shape | 3810×D1900×H2100mm |
| Power supply | 380V/50Hz |
| Control | Using PCC programming control, easy operation and stable performance |
