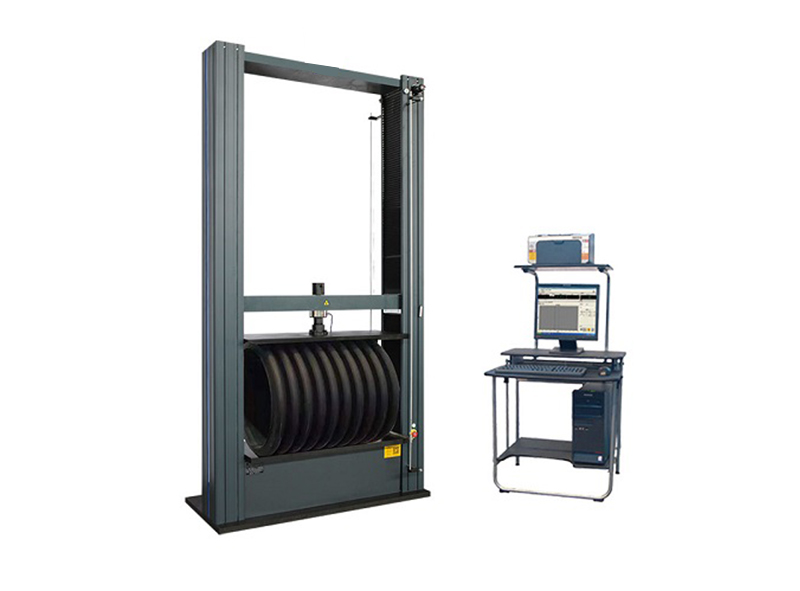

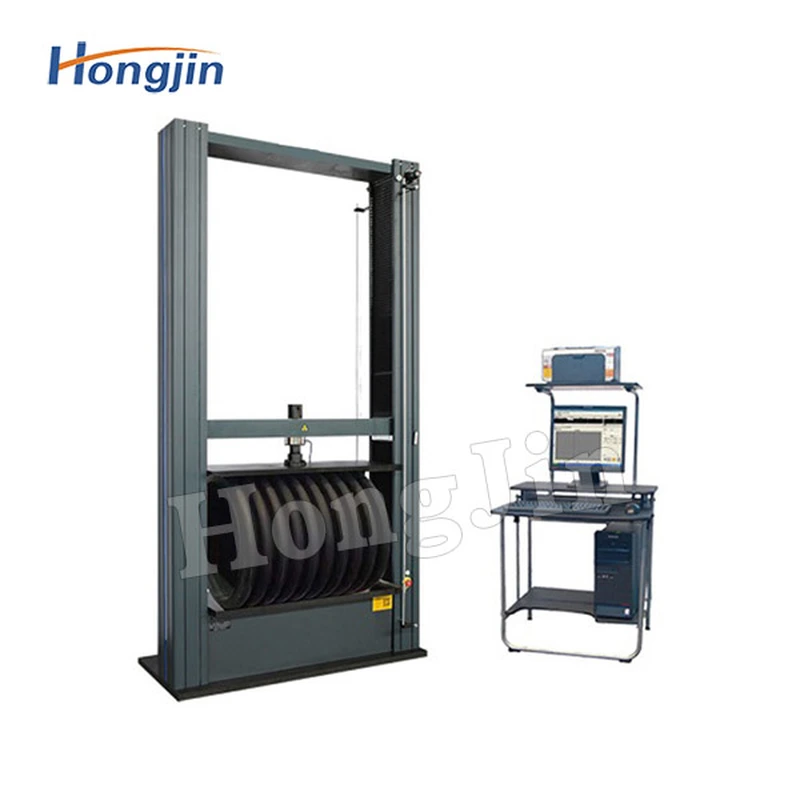

Ring stiffness testing machine

Ring stiffness testing machine

This machine is widely used in material inspection and analysis of iron and steel metallurgy, building materials, aerospace, machinery manufacturing, wire and cable, rubber and plastics, textiles, household appliances and other industries. Ideal test equipment for other departments.

Description

This machine is widely used in material inspection and analysis of iron and steel metallurgy, building materials, aerospace, machinery manufacturing, wire and cable, rubber and plastics, textiles, household appliances and other industries. Ideal test equipment for other departments.


Features of Ring stiffness testing machine


The machine is automatically controlled by computer, displays experimental data and test curves in real time, and prints experimental reports with an external printer. The design of the host and auxiliary equipment has beautiful appearance, convenient operation and stable and reliable performance. The system controls the rotation of the servo motor through the Sida controller and the speed control system. After the deceleration system, the imported precision ball screw pair drives the beam to rise and fall to complete the tensile and compressive mechanical performance test of the sample without pollution and noise. Low, high efficiency, with a wide speed range. It fully meets the requirements of GBT9647-2003 "Determination of Rigidity of Thermoplastic Pipe Rings".



Parameters of  Ring stiffness testing machine


Maximum test force50kH
Force measurement range2%-100% of the maximum test force
Testing Machine AccuracyWorry about ±1% ± 0.5% of indicated value
Deformation measurement accuracy1%
Beam displacement measurement (mm)Resolution 0.001
Test force indication accuracyBetter than ±1% of indicated value
Deformation measurement range2-100%
Force control speed adjustment rangeo.001~10%
Force control speed control accuracy±1%
Displacement rate adjustment range0.01mm/min~500mm/min; set arbitrarily
Displacement Rate Spatial Accuracy±1%
Stretch stroke2000mm
Compression stroke2000mm
Test width1000mm
Machine formFloor-standing
