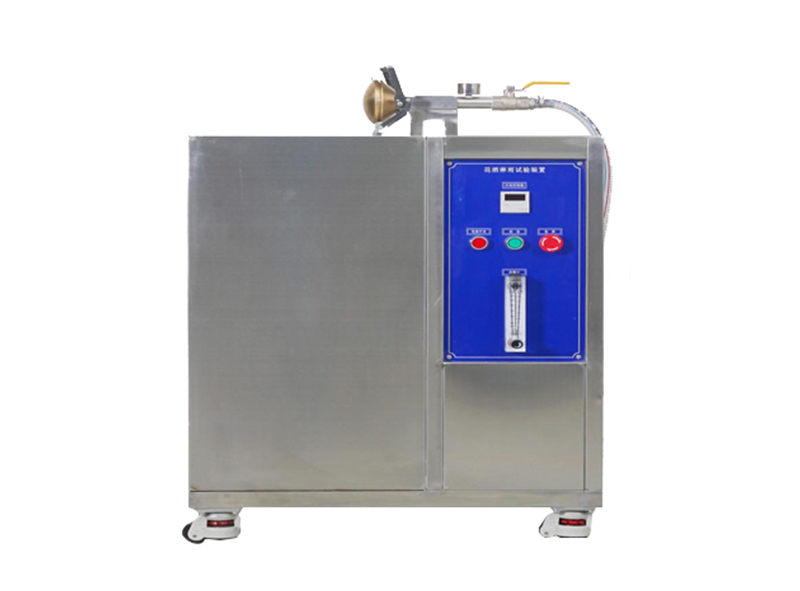

Rain and water wading performance test system for the whole vehicle

Rain and water wading performance test system for the whole vehicle

Description


Parameters of Rain and water wading performance test system for the whole vehicle

One-way cycling distance25m
Riding depth100mm
Inner diameter of wading runway800mm
Outer dimensions of the deviceAbout length 380* width 130* height 150mm
Brass nozzle sizeØ 102mm
Number of spray holes121
The size of the water spray holeØ 0.5mm
Opening position12 holes/circle in 2 inner circles, 30° pitch, 24 holes/circle in 4 outer circles, 15° pitch
Outer diameter of water inletØ 18mm
Stainless steel water pipe outer diameterØ 28mm
Water flow10L/min±5%
Flow adjustment methodManual adjustment
Water pressure range50-150Kpa
Flow displayhave
temperature5℃~35℃
Relative humidity≤85%
Air pressure86kPa~106kPa
