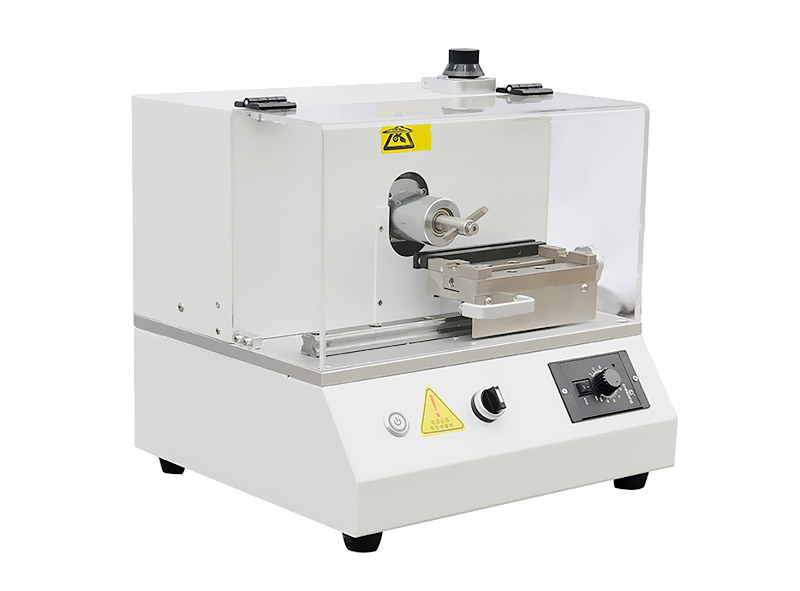

Notched sample making machine is a sample making equipment for notched specimens used in cantilever beam and simply supported beam impact testing machine for impact toughness test of non-metallic materials.
Features of Plastic Notch Prototyping Machine
The notched sample making machine is used for the sample making equipment of notched samples used in the impact toughness test of non-metallic materials by the cantilever beam and simply supported beam impact testing machine. It can clamp 20 samples at a time, and process more than 60 notches every 10 minutes. The size of the notch is accurate and the efficiency is high, which greatly reduces the operation intensity.
Parameters of Plastic Notch Prototyping Machine
| Workbench stroke | >160MM |
| Feed speed | 0-30MM/MIN |
| Notch type | A type, B type (optional), C type (optional) |
| Adjustable Specimen Type | Type 1, Type 2, Type 3 |
| Type A tool | 45±1 degree R=0.25±0.025 |
| Type B tool | 45±1R=1.0±0.025 |
| C1 type tool | 45±1 R=0.1±0.02 |
| C2 type tool | Thickness 1=2±0.1 R<=0.1 |
| C3 type tool | Thickness 2=0.8±0.1 R=0.2±0.05 |
