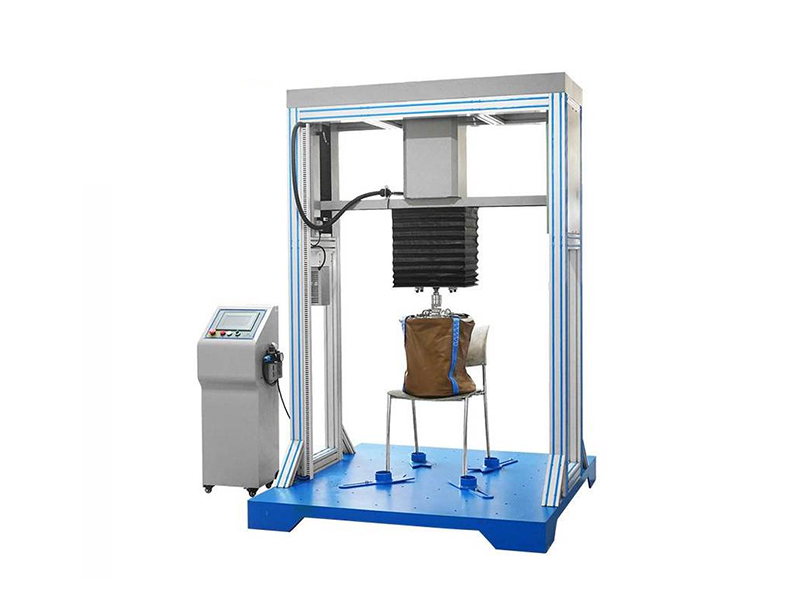

Office Chair Drop Impact Tester

Office chair drop impact tester is suitable for impact testing of office chair, stool and other seat products. Used to test the mechanical properties of free-fall shocks and long-lasting shocks at room temperature. It is widely used in the office chair furniture industry to evaluate the impact of the chair surface under the action of vertical forces and fatigue durability to improve product quality.

Equipment features

1. This machine can be used for impact test or lifting test or lifting test

2. Adjustable lifting drop height (from 10mm to 200mm)

3. The weight bag is equipped with a force value sensor, which is used to detect the position where the impact bag has just left the surface of the chair, and according to this position as the starting point, it is lifted up according to the set height, and released and let it fall freely on the chair to make an impact test

4. If the lifting test mode is selected, the heavy bag will be lifted and lifted repeatedly according to the set cycle. To make the chair withstand gravity without causing an impact

5. Test rate: 0-20 weeks /min

6. Chair size width: 1000mm

7. The equipment consists of an impact pack with a base diameter of 400mm and weight of 102kg, 136kg, 57kg and 91kg。

Parameters of  Office Chair Drop Impact Tester
