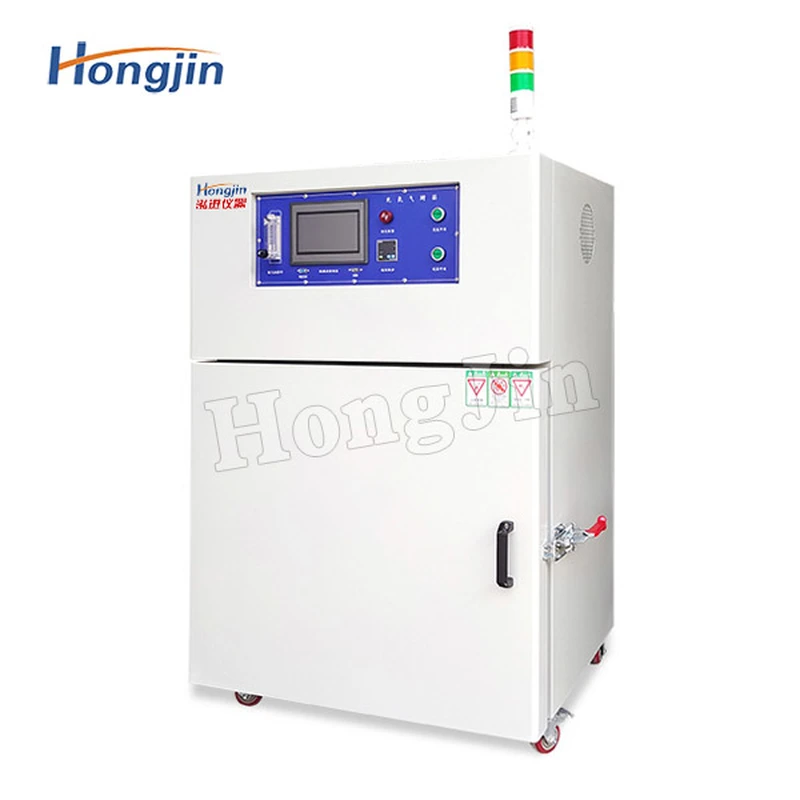

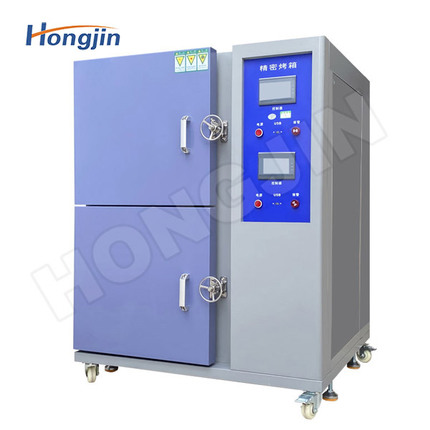

Nitrogen filled oven

Nitrogen filled oven

The equipment is a new type of industrial-grade drying equipment. It adopts long-shaft high-temperature resistant and high-power axial flow fans, stainless steel turbine blades, combined with uniquely designed air ducts, intelligent PID thermostats combined with SSR solid state relays to control efficient stainless steel heater heating, forming The high-temperature hot air with uniform temperature heats the inside of the box to ensure that the inside of the oven reaches the ideal temperature environment. The products are widely used in preheating, aging, baking, thermal curing, quenching and other processes in many industrial fields such as electronic manufacturing, coating, printing, aerospace, etc.


Features of Nitrogen filled oven

1. Box structure

1.1. Liner material: It is made of 1.2mm thick high-quality stainless steel argon arc welding, which is anti-pollution and easy to clean.

1.2. Shell material: The exterior is made of 1.2mm thick high-quality cold-rolled steel plate with anti-rust treatment and then sprayed with plastic, and stainless steel can also be used.

1.3. Thermal insulation material: 100K high-grade thermal insulation cotton is used, six sides of thermal insulation are insulated, the thermal insulation thickness is 80mm-150mm, and the thermal insulation performance is good.

1.4 Object carrier rack: The layer spacing can be adjusted according to the size of the object, and the space utilization rate is high.

2. Temperature control system: Japan Omron digital intelligent temperature controller, constant temperature control mode, PID automatic calculation, with sensor disconnection alarm function, with over-temperature alarm protection function, to ensure the safe operation of the product.

3. Temperature control method

3.1. Signal source: The imported CA sensor rod is made in Japan ±0.5%.

3.2. Output controlled components: SSR solid-state no-node output ensures accurate heating power.

4. Hot air circulation system in the box

4.1. Air supply method: horizontal air supply or vertical air supply is adopted in the box.

4.2. Air duct structure: high-density punched air panels are used on both sides of the air duct to precisely control the angle of the deflector to ensure the temperature uniformity in the box.

4.3. Air supply device: It adopts high-power three-phase asynchronous high-temperature resistant long-shaft silent motor + large-diameter stainless steel turbine blades, and the turbine is horizontally corrected to ensure smooth air transportation and noise ≤ 65dB.

4.4. Air supply device safety protection system: with over-temperature overload and over-current protection function to ensure the service life and safety performance of the motor and fan.

5. Electric heating system: stainless steel dust-free heating tube, using high-quality nickel-chromium heating wire, high-insulation thermal conductivity modified magnesium oxide filling, stainless steel seamless steel tube covering, no name fire, no leakage, safety and no dust.

6. Whole machine safety protection system

6.1. The triple over-temperature protection system is adopted to ensure the overall safety performance of the box during operation (see technical parameters for details).

6.2. Electrical protection system inside the box (to ensure stable, safe and reliable operation of electrical appliances inside the box):

6.2.1. Over-temperature preventer (independent temperature limit, over-temperature power off);

6.2.2. Phase sequence protection (undervoltage and underphase protection);

6.2.3. Motor overcurrent protection;

6.2.4. Control line fuse;

6.2.5. Electrothermal overcurrent protection;

6.2.6. Fuseless switch.

7. Nitrogen filling device: equipped with 1 10-100L nitrogen flow meter, 1 set of inlet pressure regulating valve filter, 8mm fast inlet port and matching stainless steel seamless welded pipeline.

Parameters of Nitrogen filled oven

ControllerThe controller is located above the machine, the single door is opened from right to left, and the door observation window is 300*300mm
Inner material430# mirror stainless steel plate
Outer materialCold-rolled steel plate, powder paint treatment
CompartmentDivided into four layers, with four trays
Insulation materialAluminum silicate wool, good thermal insulation effect
Sealing materialHigh temperature resistant silicone
CastersThe machine is equipped with brake movable casters, which can be pushed at will
Timer setting1 second - 9999 hours (hours, minutes, seconds can be set)
Temperature line(K) type
Current controllerSSR solid state relay
Heating elementElectromagnetic heater, each layer is heated, there are electromagnetic heaters at the bottom of the tray
Temperature rangeRT~250℃
Heating rateRT-100℃ for about 12 minutes
Instrument control accuracy±1℃
Display accuracy1℃
The uniformity of temperature distribution in the box±25℃
