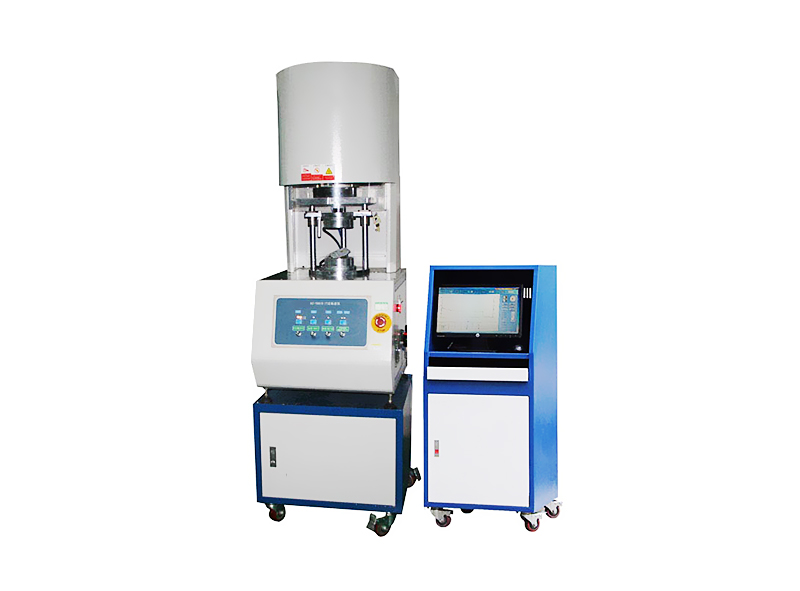

Mooney Viscometer

This machine conforms to the requirements of GB/T 1232 "Determination of Unvulcanized rubber Mooney viscosity", GB/T1233 "Determination of initial vulcanization characteristics of rubber rubber Mooney Viscometer method" and IS0289, IS0667 and other standards, used to determine the viscosity of raw rubber or mixed rubber, burning and vulcanization index. Microcomputer control, data display, automatic calibration, is the rubber industry and scientific research units of the ideal experimental instrument. Imported intelligent digital temperature control instrument, easy to adjust and set, wide range of temperature control. The microcomputer adopts imported chip, high reliability, all the data can be calculated and printed automatically.

Description

Features of Mooney Viscometer

1. Operating software: Chinese software, English software;

2. Unit selection: kgf-cm, lbf-in, N-m, dN-m, MV;

3. Testable data: including Mooney viscosity and coke firing data;

4. Testable curves: Mooney viscosity curve, Mooney coke burning curve, upper and lower die temperature curve;

5. The time can be modified in the middle of the test;

6, the test data can be automatically saved;

7, multiple test data and curves can be displayed on a report paper, and the mouse click can be selected to read the value of any point on the curve;

8. Historical data can be added together for comparative analysis and printed out.

Parameters of Mooney Viscometer

Temperature range	0-200 ℃	Temperature measurement accuracy	Plus or minus 0.3 ℃
Control accuracy	Plus or minus 0.3 ℃	Temperature resolution	0.1 ° CE
Torque range	The value ranges from 0 to 100	Calibration accuracy	100±0.5 meny value
Rotor speed	2±0.02 RPM	Ambient temperature	0-35 ℃
Relative humidity	＜80	Test pressure	11.5KN ±0.5KN
Gas distribution	0.45-0.6 MPA	Power AC	220V 1KVA
Machine size	About 660×570× 1300mm	Machine weight	About 210Kg
