Mattress rolling tester + hardness test + side pressure

Mattress rolling tester + hardness test + side pressure

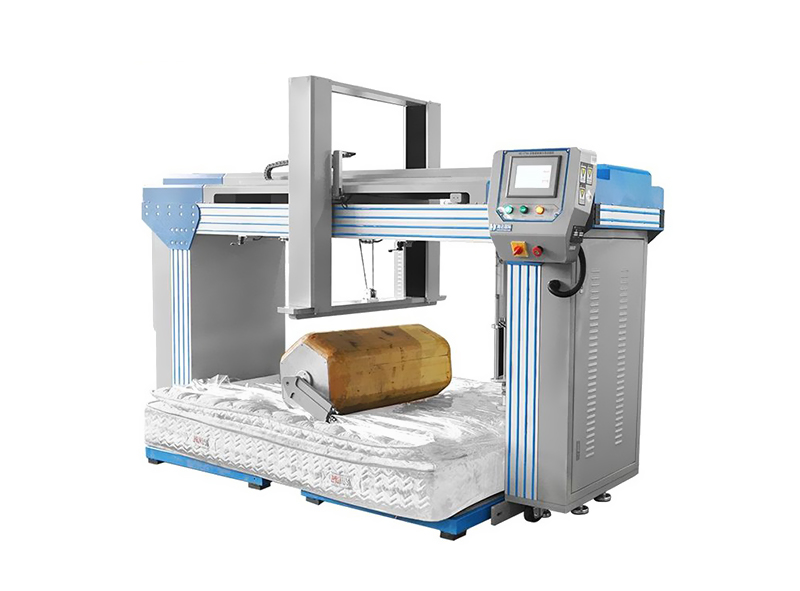

The mattress rolling test machine (three-in-one) uses a horizontally rolling wooden hexagonal barrel or cylinder (diameter at both ends of 250 mm and the middle part of 300 mm) to roll back and forth on the tested mattress to simulate human movements to assess the performance of mattresses.

Description

The mattress rolling test machine (three-in-one) uses a horizontally rolling wooden hexagonal barrel or cylinder (diameter at both ends of 250 mm and the middle part of 300 mm) to roll back and forth on the tested mattress to simulate human movements to assess the performance of mattresses.


Parameters of  Mattress rolling tester + hardness test + side pressure

Applicable mattress size2.2M * 2M
ControllerMitsubishi PLC + color touch screen + data output function
Hexagon Roller Length36±3in(915±75mm)
Hexagon Roller Weight240±10Lb(109±4.5kg)
Side-to-side distance of hexagonal rollers17±1in(430±25mm)
Round drum length1000mm
Round drum weight1400N
Diameter of round drum300mm
Test tripASTM 1566: Max. Mattress Width, Min. 70% of Mattress Width or 38in (965mm), whichever is smaller
Test speed0-20r/min
TransmissionServer system
Altitude loss testServo measuring system (height loss measurer)
Mattress edgea. Test times: 5000 times; b. Holding time: 3 seconds; C. Test force value: 1000N
Power supply3∮,AC380V,5kW
